Eaton Crouse-Hinds DSD961 J1 LED ST SP - Hazardous Location
Part Number: DSD961 J1 LED ST SP
Manufacturer
Eaton Crouse-Hinds
Part number
DSD961 J1 LED ST SP
Category
Quick Summary
DSD961 J1 LED ST SP provides an LED pilot light and dual pushbutton sub-assembly for hazardous-area control panels. Operators and maintenance teams struggle with unreliable signaling and corroded interfaces in explosive environments, leading to downtime and safety risks. This unit meets NEC/CEC requirements and hazardous-location ratings, supported by NEMA 9 3 7 protection and area-classification compliance. By combining robust sealing, feraloy iron alloy construction, and clearly marked START/STOP indicators, it enables faster diagnostics and easier regulatory compliance. The device integrates with Eaton’s DSD covers and device sub-assemblies, delivering a compact, factory-sealed solution that reduces panel footprint and maintenance costs.
Product Information
Extended Description

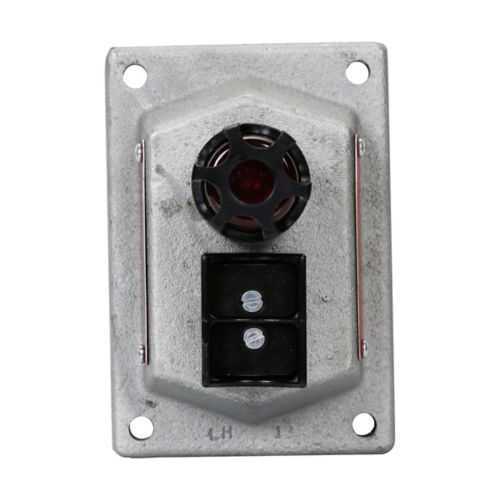

DSD961 J1 LED ST SP Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Red, START/STOP, Feraloy iron alloy, 2 buttons, LED, factory sealed, One pilot light and one double pushbutton
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD961 J1 LED ST SP
Product Weight
3.62 lb
UPC
782274020983
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 1 Class III Class I, Division 2 Class II, Division 2
NEMA Rating
9 3 7
Number of cover buttons
2
Indicating plate markings
START/STOP
Color
Red
Material
Feraloy iron alloy
Special features
LED, factory sealed
Type
One pilot light and one double pushbutton
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
Eaton Specification Sheet - DSD961 J1 LED ST SP
LED indicator and LED illumination provide continuous visibility of machine state in harsh environments, reducing misoperation and associated downtime for lines operating in hazardous areas. The red START/STOP indicator enhances operator decision-making, delivering quicker, safer shutdown and startup sequences in high-risk settings. One pilot light paired with a two-button pushbutton minimizes panel depth and wiring complexity, improving installation speed and reducing mounting costs while preserving full control capability. Feraloy iron alloy housing delivers rugged durability and corrosion resistance, extending service life in chemical, offshore, or mining environments and lowering total cost of ownership. Factory-sealed construction protects against dust, water, and explosive atmospheres, helping you maintain compliance and maintain performance over time. NEC/CEC compliance, area-classification approval, and NEMA 9 3 7 protection simplify panel design and supplier qualification, while documented installation instructions (IF 1929 series) support consistent field assembly. This sub-assembly is designed for seamless interoperability with Eaton DSD covers and device sub-assemblies, enabling scalable expansion of hazardous-area control systems without custom fabrication. Real-world integration shows measurable gains in up-time, safety compliance, and maintenance efficiency for mission-critical automation applications.
Get a Quick Quote for a Eaton Crouse-Hinds DSD961 J1 LED ST SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD961 J1 LED ST SP?
Enquire Now
FAQs
The DSD961 J1 LED ST SP is designed to fit standard hazardous-area panel openings and works with Eaton DSD cover and device sub-assemblies. Refer to IF 1929 installation sheets for toggle operator guidance and follow the included factory-sealed mounting guidelines to maintain enclosure integrity. Ensure proper wiring in Class I/II/III locations and verify compatibility with your existing control circuit wiring harnesses.
This unit features one pilot light and one double pushbutton, a red START/STOP indicating plate, and an LED indicator with a feraloy iron alloy housing. The overall assembly weighs 3.62 lb and is designed for use in hazardous locations under NEC/CEC standards, with area classification support and NEMA ratings 9, 3, and 7 for rugged environments.
Yes. The product supports NEC hazardous ratings across Class I, II, and III with Division 1 and Division 2 configurations, backed by area-classification approvals and NEMA 9 3 7 protection. This makes it appropriate for chemical plants, mining, and offshore environments where explosion protection is required.
Certifications include NEC/CEC compliance, hazardous-location ratings, and NEMA protection. Canadian certification listings are available via UL/Federal documentation, and installation/instruction sheets (IF 1929 and related sheets) provide compliance guidance. Catalog pages and datasheets from Eaton’s DSD series also accompany the product for audit and qualification needs.
It reduces downtime through reliable LED signaling and robust sealing, lowers total cost of ownership with a corrosion-resistant feraloy alloy body, and simplifies regulatory compliance with NEC/CEC and NEMA ratings. Its compact, integrated design minimizes panel footprint and wiring, enabling faster deployments and easier maintenance in demanding industrial environments.
