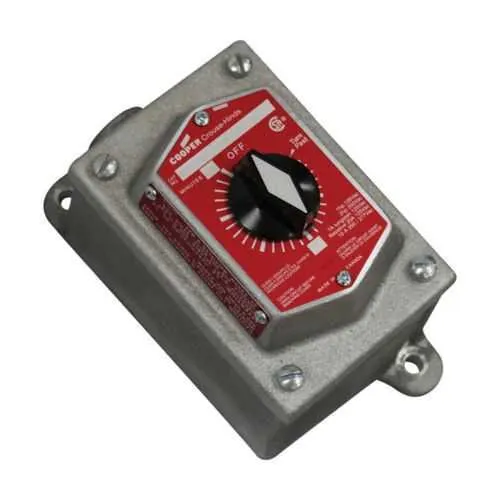

Eaton DSDTS11M5SA Timer - 11-Pole Explosionproof
Part Number: DSDTS11M5SA
Quick Summary
The Eaton DSD-TS timer is a rugged, 11-pole delay timer designed for hazardous-area control systems. Engineers often wrestle with timing modules that meet strict NEC/CEC requirements while withstanding harsh environments. This timer carries NEC hazardous ratings for Class I, II, and III locations, including Division 1 and Division 2, and is approved for Hazardous/Classified Locations. With an aluminum housing and a compact footprint, it fits tight control panels without sacrificing durability. The 5-minute timing and 11-pole configuration enable precise sequencing across pumps, valves, and motors, delivering reliable, maintenance-friendly performance in demanding industrial settings.
Product Information
Extended Description
DSDTS11M5SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD-TS timer, Aluminum, 5 minutes, 11-pole
Product Name
Eaton Crouse-Hinds series DSD-TS timer
Catalog Number
DSDTS11M5SA
Product Length/Depth
3.5 in
Product Height
5.88 in
Product Width
5.5 in
UPC
662276849099
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 1 Class II, Division 2 Class I, Division 2 Class III
Number Of Poles
11-pole
Time measurement
Minutes
Number of minutes
5
Material
Aluminum
Feature: 11-pole, aluminum timer body. Business Impact: Enables dense wiring and robust mechanical strength in a single module, reducing panel footprint and maintenance frequency. Application: Multi-output sequencing in hazardous-area automation where space and durability matter. Feature: 5-minute time delay (5 minutes). Business Impact: Provides predictable, repeatable cycle control and safer startup/shutdown sequences, lowering process risk and energy waste. Application: Conveyor and pump control in chemical plants and mining operations. Feature: Hazardous area certifications (NEC/CEC compliance, Class I/II/III; Division 1 and 2). Business Impact: Improves regulatory alignment, reduces risk of non-compliance penalties, and simplifies procurement with a single, certified timer. Application: Oil & gas, refining, and mineral processing environments. Feature: Aluminum construction. Business Impact: Corrosion resistance and lightweight durability extend service life in aggressive surroundings while easing handling during installation. Application: Marine equipment, offshore platforms, and chemical processing facilities. Feature: General dimensions (3.5 in depth, 5.88 in height, 5.5 in width). Business Impact: Predictable fit in standard enclosures, faster commissioning, and fewer enclosure reworks. Application: Retrofit projects and new panel designs in hazardous facilities. Feature: Documentation availability (catalog page, specification sheet). Business Impact: Accelerates design validation and procurement with quick access to verified specs. Application: Engineering design reviews and compliance audits in industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds DSDTS11M5SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSDTS11M5SA?
Enquire Now
FAQs
The DSDTS11M5SA features an aluminum housing and a compact footprint designed for tight panel spaces in hazardous locations. Ensure enclosure rating matches the NEC/CEC requirements for Class I/II/III locations and provide proper sealing to maintain integrity in classified areas. Refer to the DSD-TS catalog pages for mounting dimensions and terminal layout to streamline installation.
The device is an 11-pole timer with a time measurement set in minutes and a 5-minute delay. This configuration enables precise sequencing for multi-output control, such as valve and pump interlocks, while maintaining predictable cycle times in automated processes.
Yes. The timer carries NEC hazardous ratings covering Class I, II, and III with Division 1 and Division 2, and is designed for Hazardous/Classified Locations per NEC/CEC standards. This ensures regulatory compliance for industrial automation projects in oil & gas, chemical, and mining sectors.
Applications include sequencing for pumps, motors, valves, and safety interlocks in chemical processing, refinery, marine, and mining operations. The 11-pole design supports complex control schemes, while the 5-minute delay provides stable, repeatable process timing under harsh conditions.
Engineering teams benefit from readily available datasheets and catalog pages, enabling faster validation and procurement. The aluminum housing reduces corrosion-related maintenance, while robust NEC/CEC certification supports long service life and easier audits in regulated facilities.
