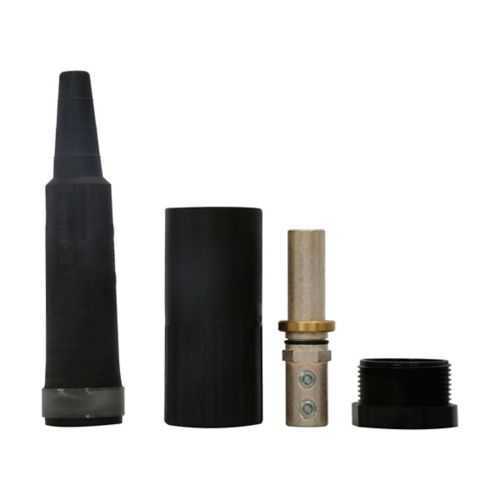

Eaton Crouse-Hinds Posi-Lok E0200-282 plug - NEC/CEC
Part Number: E0200-282
Manufacturer
Eaton Crouse-Hinds
Part number
E0200-282
Quick Summary
The Eaton Crouse-Hinds Posi-Lok E0200-282 plug provides secure, high-current connections for industrial power-distribution panels. When selecting terminations for up to 200A continuous with #2-2/0 AWG conductors, many options risk loose contacts and misalignment. This plug meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, supporting safe, code-compliant installations. It also delivers reliable operation in demanding environments while enabling straightforward maintenance and interchangeability within the Posi-Lok family, making it a strong choice for panel plugs and high-current distribution tasks.
Product Information
Extended Description
E0200-282 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0200 plug, Up to 200A continuous, #2-2/0 AWG, White, Double set screw, Female, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0200 plug
Catalog Number
E0200-282
Product Weight
1 lb
UPC
662275123329
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
#2-2/0 AWG
Amperage Rating
Up to 200A Continuous
Voltage rating
600 Vac/dc
Gender
Female
Connection type
Double set screw
Color
White
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 175 - E0200 Plugs and Panels
Eaton Specification Sheet - E0200-282
High-current capability translates to fewer terminations and faster installation, improving line uptime and reducing labor costs. The E0200-282 accommodates up to 200A continuous with a 600 Vac/dc rating, supporting #2-2/0 AWG conductors for heavy-power feed applications across motor drives and distribution panels. The double set screw design provides vibration resistance and a secure termination, minimizing arcing risk and ensuring long-term reliability in manufacturing floors and assembly lines. Built from thermoplastic elastomer (TPE) and finished in white, the connector offers chemical resistance and robust impact tolerance in harsh environments, reducing replacement cycles. The female gender and Posi-Lok mating mechanism deliver consistent engagement and easy field maintenance, improving interchangeability with other Posi-Lok plugs and panels for scalable infrastructure. Compliance with NEC/CEC standards and Ordinary/Non-Hazardous Location classifications gives installers confidence in code alignment during panel upgrades and new builds. These features collectively drive improved efficiency, lower total cost of ownership, and safer power distribution in industrial settings.
Get a Quick Quote for a Eaton Crouse-Hinds E0200-282
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0200-282?
Enquire Now
FAQs
Yes. The E0200-282 is a female Posi-Lok plug designed to mate with corresponding E0200/E0400-style panels within the Posi-Lok family. It accepts #2-2/0 AWG conductors and uses a double set screw to secure the cable, delivering reliable terminations even in vibration-prone environments. Ensure correct panel mating and follow standard wiring practices for safe installation.
The E0200-282 is rated for up to 200A continuous and supports 600 Vac/dc. It is designed for #2-2/0 AWG conductors, with a female gender and a double set screw connection to ensure secure, low-resistance terminations suitable for high-current panel feeds in industrial installations.
This plug is ideal for power distribution panels and plugs in ordinary/non-hazardous locations. It is well-suited for manufacturing floors, control rooms, and motor feeder circuits where reliable high-current connections, NEC/CEC compliance, and resistance to typical industrial conditions are required.
The E0200-282 adheres to NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. This alignment helps ensure code-compliant installations across general industrial settings and reduces the risk of non-conformant terminations during audits and inspections.
The plug uses a robust thermoplastic elastomer (TPE) body and a secure double set screw termination, providing durable performance in vibration and chemical-exposure scenarios. Regular inspection of terminal tightness and mating surfaces, plus using the correct #2-2/0 AWG cables, reduces contact resistance and downtime, delivering a favorable total cost of ownership over the product lifecycle.
