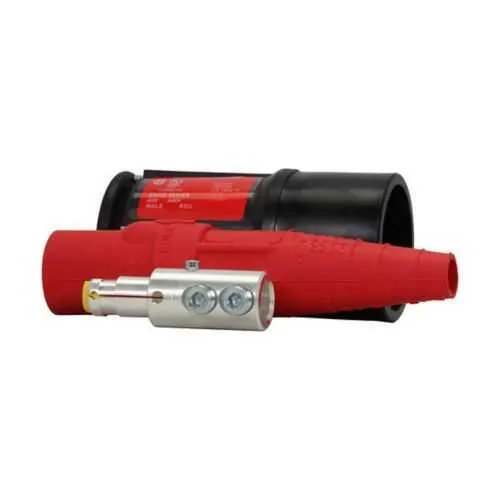

Eaton Crouse-Hinds E0400-144 plug - 600 Vac/dc
Part Number: E0400-144
Manufacturer
Eaton Crouse-Hinds
Part number
E0400-144
Quick Summary
Posi-Lok E0400 plug provides secure, high-current power connections for industrial enclosures in demanding manufacturing environments. This solution addresses reliability challenges common in harsh installations where vibration, loose connections, and improper termination lead to downtime. The design complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, supporting safe operation across typical plant spaces. By coupling a red thermoplastic elastomer housing with a crimp connection and a 1/0-2/0 AWG cable size, it delivers a robust, maintenance-friendly interface. For engineers and procurement teams, the combination of up to 400A continuous rating and 600 Vac/dc capability translates to fewer parts, faster service, and improved compliance across your power-distribution panels.
Product Information
Extended Description
E0400-144 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0400 plug, Up to 400A continuous, 1/0-2/0 AWG, Red, Crimp, Male, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0400 plug
Catalog Number
E0400-144
Product Length/Depth
6.39 in
Product Height
6.97 in
Product Width
19 in
Product Weight
2.82 lb
UPC
662275124388
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
1/0-2/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Gender
Male
Connection type
Crimp
Color
Red
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 168 - E0400 Plugs and Panels
Eaton Specification Sheet - E0400-144
Feature: Up to 400A continuous, 1/0-2/0 AWG capability. Business impact: Supports large loads with a single, reliable connection, reducing the number of terminations and panel congestion. Application: Ideal for power distribution panels in heavy machinery and process lines. Long-tail keywords: high-current plug, 1/0-2/0 AWG, power distribution panels. Feature: Crimp connection. Business impact: Delivers vibration-resistant, maintenance-friendly terminations that resist loosening under equipment movement. Application: Enclosures in dynamic production environments. Long-tail keywords: crimp connection, vibration resistance, maintenance-free. Feature: Thermoplastic elastomer (TPE) housing in red. Business impact: Provides chemical, temperature, and abrasion resistance for harsh plants, lowering replacement cycles. Application: Outdoor/industrial environments. Long-tail keywords: TPE housing, red color coding, robust enclosure. Feature: Voltage rating of 600 Vac/dc. Business impact: Supports mixed AC/DC systems without adapters, simplifying designs. Application: Mixed-voltage industrial networks. Long-tail keywords: 600 Vac/dc, mixed voltage support. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification. Business impact: Ensures code compliance and safe operation in standard facilities, reducing risk and compliance overhead. Application: Regulated facilities and OEM equipment. Long-tail keywords: NEC/CEC, area classification, ordinary locations. Feature: Compatibility with Posi-Lok panels and plugs family. Business impact: Streamlines installation and spare-part compatibility, lowering training time and procurement complexity. Application: New build-outs and panel upgrades. Long-tail keywords: Posi-Lok compatibility, panel integration, plug and panel system.
Get a Quick Quote for a Eaton Crouse-Hinds E0400-144
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0400-144?
Enquire Now
FAQs
To install the E0400-144, verify the 1/0-2/0 AWG cable size and ensure the mating panel is compatible with the Posi-Lok system. Prepare the conductors, secure them with the appropriate crimp tooling, then mate the plug to its corresponding panel or panel connector. Refer to the EB 168 installation sheet for official sequence and safety notes, and test continuity and insulation after assembly.
The E0400-144 supports cables from 1/0 to 2/0 AWG and is rated up to 400A continuous current. Its voltage rating is 600 Vac/dc, making it suitable for high-current, mixed-voltage industrial applications while maintaining a robust, crimped connection.
Yes. The E0400-144 is classified for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards, helping ensure compliant installations in typical plant spaces without special area classifications or hazardous-location restrictions.
You can access the official documentation via the Posi-Lok catalog page, EB 168 installation sheet, and the Eaton specification sheet for E0400-144. These PDFs provide product details, mounting guidelines, and termination instructions to support compliant, reliable installations.
Using the E0400-144 delivers higher reliability, reduced downtime, and safer terminations in heavy-duty panels. Its 400A capacity, robust red TPE housing, and NEC/CEC compliance enable faster service, fewer spare parts, and consistent performance in demanding industrial environments.
