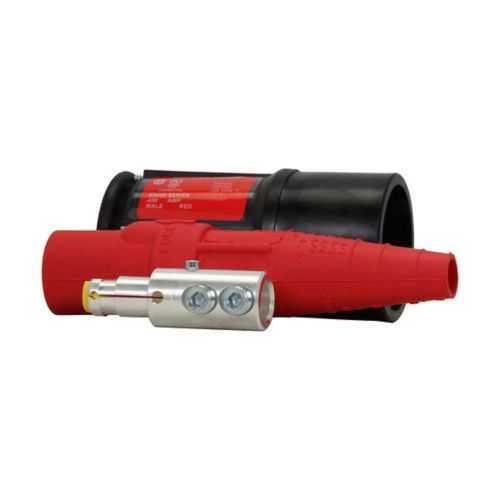

Eaton Crouse-Hinds E0400-152 Posi-Lok plug - 600 Vac/dc
Part Number: E0400-152
Manufacturer
Eaton Crouse-Hinds
Part number
E0400-152
Quick Summary
Posi-Lok E0400 plug enables secure, high-current connections for industrial power distribution panels. Engineers often struggle with reliable torque retention and vibration resistance in high-amperage enclosures. These connectors align with NEC/CEC standards and are rated for Ordinary/Non-Hazardous locations, supporting compliant, safer installations. In addition, the plug supports #2-2/0 AWG conductors and, with its double set screws and durable TPE housing, offers faster, more reliable terminations and long service life in harsh environments.
Product Information
Extended Description
E0400-152 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0400 plug, Up to 400A continuous, #2-2/0 AWG, White, Double set screw, Male, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0400 plug
Catalog Number
E0400-152
Product Length/Depth
6.39 in
Product Height
6.97 in
Product Width
19 in
Product Weight
2.82 lb
UPC
662275888723
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
#2-2/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Gender
Male
Connection type
Double set screw
Color
White
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 168 - E0400 Plugs and Panels
Eaton Specification Sheet - E0400-152
Feature: Up to 400 A continuous amperage rating. Business Impact: Enables carrying heavier feeder loads with fewer terminations, improving system reliability and reducing panel congestion. Application: Suitable for power distribution feeders supplying high-demand equipment in manufacturing settings. The higher current capability also lowers the number of parallel connections required, cutting installation time. Feature: 600 Vac/dc voltage rating. Business Impact: Supports both AC and DC power systems, enabling versatile use across controlled environments and mixed electrical architectures. Application: Ideal for DC-drive systems and single-phase/three-phase distribution panels. Feature: Cable size compatibility #2-2/0 AWG. Business Impact: Broad wiring options reduce rework and simplify sourcing, accelerating project timelines. Application: Enables direct connection to large-diameter feeders in heavy machinery installations. Feature: Double set screw termination. Business Impact: Enhances mechanical retention and vibration resistance, reducing connection loosening in dynamic environments. Application: Preferred in OEM equipment and field-installed panels where reliability matters most. Feature: Thermoplastic elastomer (TPE) housing. Business Impact: Delivers chemical resistance, temperature tolerance, and impact durability for harsh environments. Application: Suited for industrial enclosures with exposure to oils, coolants, and rough handling. Feature: White color and defined dimensions (6.39 in length, 6.97 in height, 19 in width). Business Impact: Improves visibility during installation and allows precise panel layout planning. Application: Facilitates rack and enclosure design, ensuring fit and clearance. Feature: Compliance and compatibility notes (NEC/CEC, Ordinary/Non-Hazardous Locations). Business Impact: Simplifies regulatory acceptance and reduces risk during audits. Application: Meets standard electrical codes for safe operation in non-hazardous sites. Feature: Product references and documentation availability (catalog page, EB 168 instructions, specification sheet). Business Impact: Speeds up procurement, installation, and field maintenance. Application: Streamlines technician onboarding and ensures access to install guidance and datasheets.
Get a Quick Quote for a Eaton Crouse-Hinds E0400-152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0400-152?
Enquire Now
FAQs
For seamless installation, ensure conductor sizes match #2-2/0 AWG and use the double set screws to secure each connection. The plug is rated for Ordinary/Non-Hazardous locations per NEC/CEC, and installation should follow the EB 168 instruction sheet. Verify panel clearance and mounting compatibility with Posi-Lok panels to ensure a vibration-resistant, code-compliant fit.
Key specs include up to 400 A continuous amperage and a voltage rating of 600 Vac/dc. It is a male plug with a double set screw connection, constructed from thermoplastic elastomer (TPE) and color-coded white for visibility. It supports #2-2/0 AWG conductors, making it suitable for high-current feeders in industrial power distribution.
The E0400-152 is rated for Ordinary/Non-Hazardous Locations per NEC/CEC standards. It is not indicated for use in hazardous (Classified) locations. For hazardous environments, consult the product literature and Eaton’s specialists for alternative Posi-Lok configurations that meet additional certifications.
Reliability is enhanced through a double set screw termination that resists loosening under vibration, a rugged TPE housing for environmental tolerance, and a robust current/voltage rating that supports high-load applications. This combination reduces maintenance needs and improves uptime in heavy equipment and panel feed applications.
Documentation is available from Eaton: EB 168 installation sheet, the Posi-Lok catalog page, and the E0400-152 specification sheet. Access to these files ensures correct installation practices and up-to-date technical data for field technicians and procurement teams.
