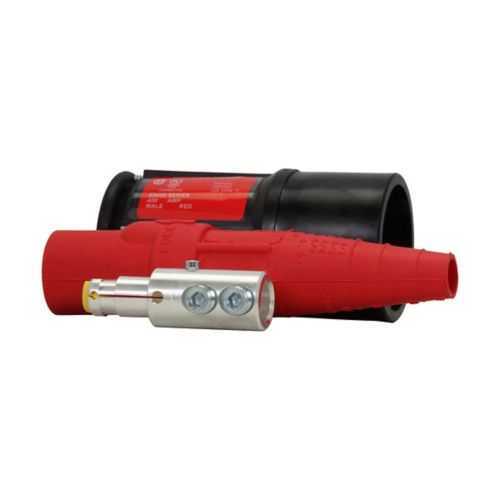

Eaton Crouse-Hinds E0400-199 Posi-Lok plug - 600 Vac/dc
Part Number: E0400-199
Manufacturer
Eaton Crouse-Hinds
Part number
E0400-199
Quick Summary
Posi-Lok E0400 plug enables high-current, reliable connections for industrial power distribution panels. It addresses the pain of loose, unreliable connections that can drive downtime and maintenance costs. This solution is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards, ensuring safe, code-compliant installations. With its rugged TPE housing, double-set-screw mating, and large conductor range, it delivers long-term performance in demanding environments. By leveraging the E0400-199 within standard Eaton Crouse-Hinds Posi-Lok systems, engineers can simplify procurement, reduce spare-part complexity, and achieve predictable uptime. Secondary benefits include consistent contact integrity, vibration resistance, and straightforward field service compatibility, which translates to lower total cost of ownership and faster panel integration for power distribution projects.
Product Information
Extended Description
E0400-199 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0400 plug, Up to 400A continuous, 3/0-4/0 AWG, Brown, Double set screw, Male, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0400 plug
Catalog Number
E0400-199
Product Length/Depth
6.39 in
Product Height
6.97 in
Product Width
19 in
Product Weight
2.82 lb
UPC
662275838971
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Gender
Male
Connection type
Double set screw
Color
Brown
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 168 - E0400 Plugs and Panels
Eaton Specification Sheet - E0400-199
Feature: Up to 400A continuous rating with 3/0-4/0 AWG conductors. Business Impact: Enables large feeder configurations with fewer terminations, reducing contact resistance and maintenance requirements. Application: Ideal for high-load power distribution panels in manufacturing or process facilities. Feature: Double set screw connection. Business Impact: Provides secure mating with excellent vibration resistance, minimizing loosening during dynamic conditions. Application: Suitable for equipment subject to machinery vibration or frequent line movement. Feature: Thermoplastic elastomer (TPE) housing. Business Impact: Delivers chemical and temperature resilience, enhancing component lifespan in harsh plant environments. Application: Recommended for industrial enclosures and non-hazardous location installations. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location suitability. Business Impact: Eases regulatory approvals and installation planning, reducing project risk and rework. Application: Deployable in standard facilities without special hazard classifications. Feature: Compact layout with defined dimensions (6.39 in length, 6.97 in height, 19 in width) and brown coloration. Business Impact: Supports panel space planning and clear visual identification, improving installation speed and traceability. Application: Field-ready for Eaton Crouse-Hinds Posi-Lok systems in distributed power networks.
Get a Quick Quote for a Eaton Crouse-Hinds E0400-199
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0400-199?
Enquire Now
FAQs
When installing the E0400-199, verify conductor sizes 3/0-4/0 AWG and ensure the double set screws are properly engaged to secure the conductors. Refer to the EB 168 instruction sheet and the E0400-199 specification sheet for torque guidance and torque sequence, plus follow NEC/CEC compliance for ordinary locations. Use the catalog page for additional mounting guidance and component compatibility with Posi-Lok panels.
Yes. The E0400-199 plug adheres to NEC/CEC standards and is intended for Ordinary/Non-Hazardous Locations, supporting safe and compliant power distribution installations. This makes it a suitable choice for standard manufacturing floors and light to moderate process environments where high-current connections are required but hazardous area classifications are not present.
The E0400-199 is rated up to 400A continuous and accepts 3/0-4/0 AWG conductors with a male, double set screw connection. This pairing supports large feeders and reduces the number of required terminations, delivering reliable performance in demanding industrial systems.
The plug features a length of 6.39 inches, height of 6.97 inches, and width of 19 inches. These dimensions inform panel cutouts and space planning for mid- to large-format distribution enclosures. Plan for installation adjacent to compatible Posi-Lok panels and ensure adequate clearance for the dual-set-screw termination and cable bending radius.
Official documentation is available via Eaton downloads: the PosI-Lok Power Distribution Panels and Plugs catalog page, EB 168 instruction sheet for E0400 plugs and panels, and the Eaton Specification Sheet for E0400-199. Access these PDFs to confirm compatibility, installation steps, and precise specifications before procurement.
