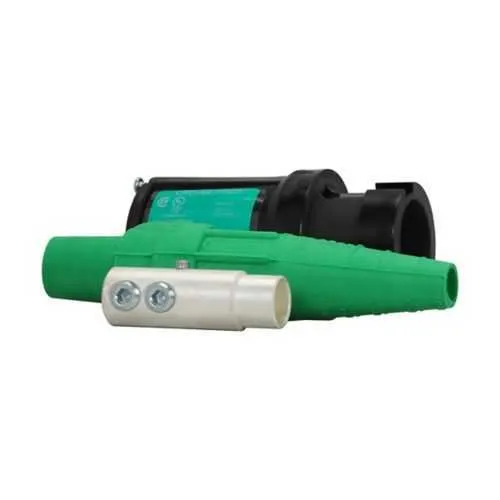

Eaton Crouse-Hinds E0400-258 Posi-Lok Plug - Up to 400A
Part Number: E0400-258
Manufacturer
Eaton Crouse-Hinds
Part number
E0400-258
Quick Summary
Posi-Lok E0400-258 plug delivers secure, high-current connections for rugged power distribution in industrial facilities. Engineers often contend with unreliable terminations, bulky assemblies, and downtime during panel upgrades or migrations. The unit is rated up to 400A continuous at 600 Vac/dc and complies with NEC/CEC standards for ordinary locations. Its yellow, thermoplastic elastomer body and double-set-screw design streamline installation, boost safety, and support scalable solutions for panels and plugs. For OEMs, integrators, and maintenance teams, this plug translates to faster commissioning, consistent performance, and lower lifecycle costs in demanding environments.
Product Information
Extended Description
E0400-258 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0400 plug, Up to 400A continuous, #2-2/0 AWG, Yellow, Double set screw, Female, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0400 plug
Catalog Number
E0400-258
Product Length/Depth
6.39 in
Product Height
6.97 in
Product Width
19 in
Product Weight
2.82 lb
UPC
662275924773
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
#2-2/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Gender
Female
Connection type
Double set screw
Color
Yellow
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 168 - E0400 Plugs and Panels
Eaton Specification Sheet - E0400-258
Feature: Up to 400A continuous current capability. Business Impact: Enables reliable, high-load connections with fewer terminations and less heat-related risk. Application: Feeder and motor circuits in manufacturing floors and control panels. Feature: 600 Vac/dc voltage rating. Business Impact: Supports mixed AC/DC systems common in drive-powered equipment, reducing the need for adapters. Application: Servo drives, PLC power rails, and intelligent motor starters. Feature: Cable size compatibility #2-2/0 AWG. Business Impact: Industrial-grade flexibility reduces cable management time and procurement complexity. Application: Large-diameter power cables in panels and junction boxes. Feature: Double-set-screw connection. Business Impact: Improves torque retention, vibration resistance, and long-term reliability. Application: OEM panels exposed to dynamic loads. Feature: Thermoplastic elastomer (TPE) housing, yellow color. Business Impact: Enhanced grip, chemical resistance, easy identification, and safer maintenance workflows. Application: Harsh plant environments where visibility and durability matter. Feature: NEC/CEC compliance and ordinary location suitability. Business Impact: Simplifies regulatory planning and reduces compliance risk. Application: Electrical installations in non-hazardous manufacturing sites and facilities. This combination of high current, robust build, and standard compliance delivers measurable reductions in downtime, installation time, and total cost of ownership for power distribution panels and plugs across OEMs and maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds E0400-258
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0400-258?
Enquire Now
FAQs
The E0400-258 supports #2-2/0 AWG cables. It uses a double-set-screw connection to secure conductors, requiring proper torque and trimmed conductors per the installation sheet. When wiring, ensure panel knockouts and gland entries protect against strain, and use appropriate lugs and torque values to maximize termination integrity and service life.
The plug is rated for up to 400A continuous current and a voltage rating of 600 Vac/dc. It is female and uses a double-set-screw connection, with a yellow thermoplastic elastomer housing designed for durable, high-current industrial power connections in non-hazardous locations.
Yes. The E0400-258 is specified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, simplifying compliance for panel builders and OEMs while maintaining reliable performance in standard industrial environments.
This plug is ideal for power distribution panels, motor feeder connections, and OEM equipment in manufacturing and processing facilities. Its high current rating, DC/AC compatibility, and compatibility with #2-2/0 AWG cables make it well-suited for permanent, high-load connections in non-hazardous industrial settings.
Expect reduced downtime from more reliable terminations and faster commissioning thanks to the double-set-screw design and straightforward installation. The durable yellow TPE housing provides chemical resistance and visibility, supporting safer maintenance and longer service life, which translates into lower total cost of ownership for power distribution infrastructure.
