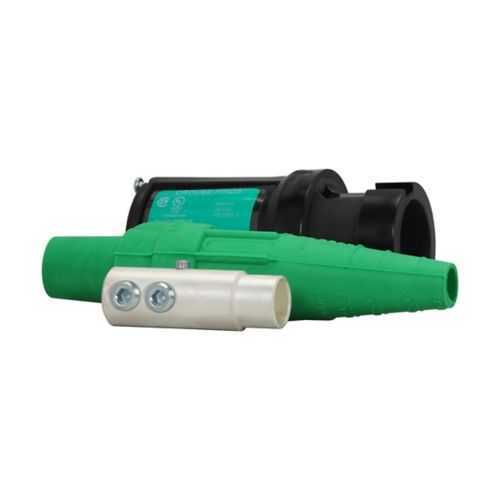

Eaton Crouse-Hinds Posi-Lok E0400-267 plug - 600 Vac/dc
Part Number: E0400-267
Manufacturer
Eaton Crouse-Hinds
Part number
E0400-267
Quick Summary
The Eaton Crouse-Hinds Posi-Lok E0400-267 plug delivers high-current power connections for industrial panels. When vibration or temperature shifts loosen crimped joints, downtime and rework erode maintenance budgets. This NEC/CEC compliant solution is suitable for Ordinary/Non-Hazardous Locations, featuring 3/0-4/0 AWG capability, orange TPE housing, and a 600 Vac/dc rating. By aligning with Posi-Lok panels and plugs, engineers can streamline panel builds, improve interlock reliability, and reduce lifecycle costs. The result is safer, faster assemblies with dependable power distribution for demanding industrial environments.
Product Information
Extended Description
E0400-267 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Posi-Lok E0400 plug, Up to 400A continuous, 3/0-4/0 AWG, Orange, Crimp, Female, Thermoplastic elastomer (TPE), 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Posi-Lok E0400 plug
Catalog Number
E0400-267
Product Length/Depth
6.39 in
Product Height
6.97 in
Product Width
19 in
Product Weight
2.82 lb
UPC
662275899989
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Gender
Female
Connection type
Crimp
Color
Orange
Material
Thermoplastic elastomer (TPE)
Posi-Lok Power Distribution Panels and Plugs catalog page
EB 168 - E0400 Plugs and Panels
Eaton Specification Sheet - E0400-267
Feature: High-current rating up to 400A continuous. Benefit: Supports large feeders and heavy loads without multiple connectors, reducing enclosure complexity and potential failure points. Application: Motor drives, power distribution panels, MCCs. Long-tail keywords: high-current power connector, 400A continuous, Posi-Lok plug compatibility. The business impact is improved efficiency and reduced downtime during commissioning and maintenance. Feature: Crimp connection with 3/0-4/0 AWG cables. Benefit: Creates a secure, vibration-resistant bond that resists loosening under industrial conditions. Application: Field service and panel assembly where reliability matters. Feature: Orange Thermoplastic Elastomer housing. Benefit: Durable, chemical-resistant, and highly visible to prevent mis-matching during wiring. Application: Harsh manufacturing floors and outdoor installations. Feature: Rated 600 Vac/dc and NEC/CEC compliance. Benefit: Safe operation across AC/DC systems while meeting essential electrical standards. Application: General power distribution in ordinary locations. Feature: Product dimensions and weight (6.39 in L, 6.97 in H, 19 in W, 2.82 lb) with UPC 662275899989. Benefit: Predictable fit during panel design and procurement planning. Application: Enclosures and electrical infrastructure planning with clear part sizing.
Get a Quick Quote for a Eaton Crouse-Hinds E0400-267
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E0400-267?
Enquire Now
FAQs
The E0400-267 uses crimp-compatible terminations designed for 3/0-4/0 AWG conductors. Select the correct crimp ferrule and tooling recommended by Eaton, prepare the cable ends per standard stripping lengths, and use the female Posi-Lok receptacle to ensure a secure, vibration-resistant connection. Verify that the crimp is fully seated and inspect for uniform insulation grip to maintain 600 Vac/dc rating and NEC/CEC compliance.
The E0400-267 plug is rated up to 400A continuous and supports 600 Vac/dc. This makes it suitable for high-current power distribution applications, such as motor control centers and heavy-load feeders, while maintaining safe operation within ordinary/non-hazardous locations as specified.
Yes. The E0400-267 plug is designed for ordinary/non-hazardous locations and NEC/CEC compliance, making it a good fit for motor control centers and panel assemblies in typical industrial settings where reliable, high-current connections are required.
The plug complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. It uses a crimp connection for secure reliability and is designed for 3/0-4/0 AWG conductors with a 600 Vac/dc rating, aligning with typical industrial electrical infrastructure requirements.
By delivering a robust, vibration-resistant crimp connection and a high-current capability up to 400A, the E0400-267 reduces field faults and downtime. The durable orange TPE housing enhances visibility and longevity, lowering maintenance frequency and improving panel reliability, which translates to lower total cost of ownership over the equipment’s lifecycle.
