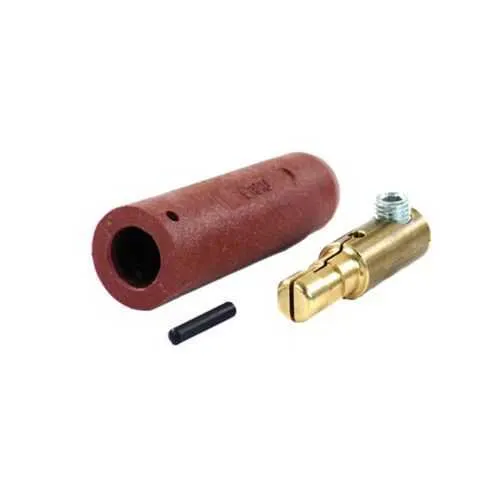

Eaton Crouse-Hinds E1010-101 Cam-Lok F Series plug - 150A/120V
Part Number: E1010-101
Quick Summary
The Eaton Crouse-Hinds E1010-101 Cam-Lok F Series plug provides reliable high-current power connections for industrial equipment. When wiring and reconfiguring heavy loads, downtime and mis-mates cost time and money. It complies with NEC/CEC standards, carries a NEMA 1 rating, and is suitable for ordinary/non-hazardous locations. Designed for quick, secure mating with Cam-Lok F Series receptacles, it supports #8-#4 AWG conductors and solder connections, delivering dependable performance in automation and manufacturing environments.
Product Information
Extended Description
E1010-101 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Red, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-101
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125392
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-101
High-current capability up to 150 A continuous and 200 A intermittent at 120 Vac minimizes frequent connector changes in power-hungry automation equipment. This translates to fewer downtime events and longer service intervals, reducing maintenance labor and extending equipment life in manufacturing lines. Suitable for Cam-Lok F Series assemblies powering motors, drives, and heavy loads in control panels and field installations. Secure solder connection and brass contacts provide low contact resistance and robust electrical performance, improving reliability in vibration-prone environments typical of packaging lines and material handling. The reinforced thermoplastic housing delivers rugged durability and chemical resistance, translating to longer service life on busy factory floors and in harsh environments. Cable size compatibility of #8-#4 AWG reduces the need for adapters and simplifies field terminations, speeding up assembly and service. Compact weight (about 1 lb) and balanced dimensions support safer handling and easier panel integration, while 120 Vac operation aligns with common facility power rails and standard automation panels.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-101?
Enquire Now
FAQs
The E1010-101 supports conductor sizes #8 through #4 AWG and uses a solder connection with brass contacts to ensure low impedance and high reliability. It operates at 120 VAC and is rated for up to 150 A continuous (200 A intermittent), making it suitable for heavy loads in industrial automation, conveyors, and motors.
Install by aligning the Cam-Lok F Series plug with the matching receptacle and ensure proper mating alignment to avoid cross-connecting pins. The solder termination and brass contacts provide a secure, vibration-resistant connection. Verify conductor sizing (#8-#4 AWG) and tighten any fittings per standard electrical torque guidelines to maintain UL/NEC compliance.
Yes. The E1010-101 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It carries a NEMA 1 rating, making it appropriate for indoor, non-hazardous environments where basic dust and debris protection is acceptable.
The soldered brass contact interface delivers durable, low-resistance connections with good vibration resistance, which reduces intermittent contact issues. The reinforced thermoplastic housing adds impact and chemical resistance, extending service life in busy plants. Overall, this translates to lower repair frequency and improved uptime on critical lines.
The E1010-101 is designed for Cam-Lok F Series mating receptacles and should be paired with compatible F Series components to ensure proper alignment and electrical contact. When upgrading or expanding a system, verify voltage rating (120 VAC), current rating (up to 150 A continuous/200 A intermittent), and conductor size (#8-#4 AWG) to maintain performance and safety standards.
