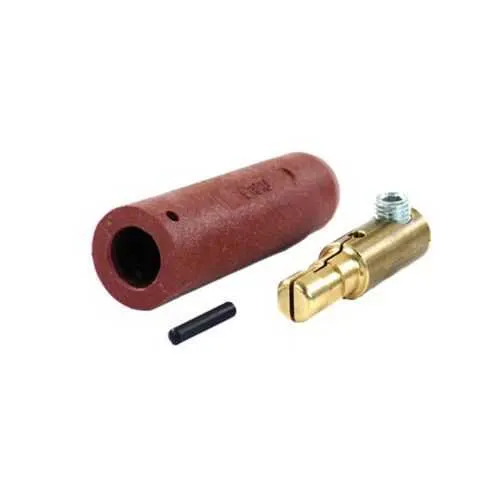

Eaton E1010-102 Cam-Lok Plug - 120 VAC, 150 A NEC/CEC
Part Number: E1010-102
Quick Summary
Cam-Lok F Series E1010 plug provides robust power connections for industrial machinery and control panels. Engineers often struggle with secure, vibration-resistant connections that withstand frequent mating cycles and harsh environments. This unit meets NEC/CEC standards and is rated for NEMA 1 ordinary locations, making it suitable for non-hazardous industrial settings. Reinforced thermoplastic housing and brass solder contacts deliver reliable performance under temperature and humidity swings. With support for #8-#4 AWG conductors and 120 VAC operation, it translates into safer assemblies and reduced field service. Quick mating and straightforward field termination help keep installation times predictable. Its compact footprint also simplifies panel design in tight electrical rooms.
Product Information
Extended Description
E1010-102 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Black, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-102
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125408
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-102
Feature: High current capability and large cable range; Business Impact: Supports motor loads and heavy tooling without paralleling connectors, reducing wiring complexity and avoiding overheating; Application: Conveyor drives and large machines requiring #8-#4 AWG cables. Feature: 120 VAC operation with solder connection; Business Impact: Delivers solid, low-resistance terminations that resist loosening under vibration, lowering maintenance and corrosion risk; Application: Panel feeds and control circuits in manufacturing. Feature: Reinforced thermoplastic housing and brass contacts; Business Impact: Improves durability, chemical resistance, and service life in busy plants, lowering downtime; Application: Factory floors and harsh enclosures. Feature: NEC/CEC compliance with NEMA 1 ordinary locations; Business Impact: Ensures regulatory conformity and safe use in non-hazardous areas, reducing compliance overhead; Application: Standard industrial facilities. Feature: Compact dimensions (3.86 in length, 1.19 in width, 1.19 in height) and 1 lb weight; Business Impact: Easy integration in compact panels, faster installation, and easier field handling; Application: Space-constrained electrical cabinets and portable setups.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-102?
Enquire Now
FAQs
The E1010-102 is designed as a Cam-Lok F Series plug compatible with standard Cam-Lok F receptacles. When mounting in panels, ensure mating clearance for the 3.86 in length and 1.19 in width, and use proper strain relief for the #8-#4 AWG conductors. The solder connection requires clean, tinned leads and a stable fixture to prevent movement under vibration. Overall, expect straightforward plug-and-play mating with minimal tooling, which reduces installation time in control panels and motor feeders.
The E1010-102 supports up to 150 A continuous and 200 A intermittent at 120 VAC, with cable size compatibility of #8-#4 AWG. This makes it suitable for high-current loads such as motor drives and heavy tooling in non-hazardous environments. In practice, you gain reliable power transfer with low voltage drop, and the solder termination helps maintain a solid connection under vibration and thermal cycling.
Yes. The Cam-Lok F Series E1010 plug is intended for ordinary/non-hazardous locations and is compliant with NEC/CEC standards. It carries a NEMA 1 rating, supporting installations in standard control panels, machine rooms, and factory floors without special explosion-proof or hazardous-area considerations. This simplifies procurement and reduces engineering overhead for typical industrial applications.
Key materials include a reinforced thermoplastic housing and brass contacts, which deliver durability, corrosion resistance, and reliable electrical performance in industrial environments. The solder terminations provide low-resistance, robust connections that resist loosening due to vibration. Together, these features reduce maintenance frequency and extend service intervals, contributing to lower lifecycle costs and less unplanned downtime.
With a compact 3.86 in length and 1 lb weight, the E1010-102 simplifies panel design and space planning, enabling quicker assembly and easier field servicing. Its compatibility with #8-#4 AWG conductors and a 120 VAC, 150 A rating covers a wide range of industrial loads, reducing the need for additional adapters or parallel connections. The result is shorter project timelines, fewer spare parts, and improved uptime in manufacturing environments.
