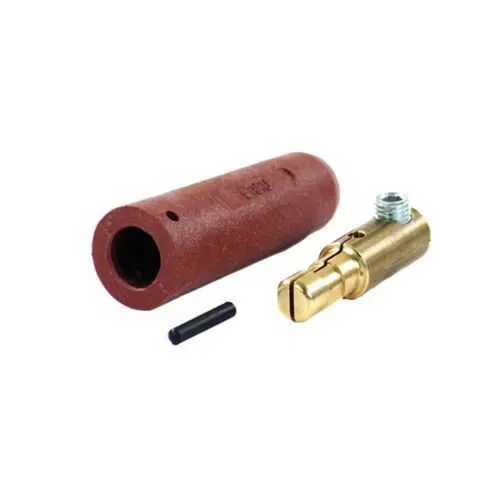

Eaton E1010-111 Cam-Lok F Series Plug - 150A
Part Number: E1010-111
Quick Summary
The Eaton Cam-Lok E1010-111 plug delivers high-current power connections for control panels and mobile equipment. Engineers often struggle with secure, vibration-resistant connectors that endure harsh industrial environments, which can lead to intermittent failures and costly downtime. This device meets NEC/CEC standards and carries a NEMA 1 enclosure rating, suitable for ordinary/non-hazardous locations, ensuring safety and compliance. By supporting #8-#4 AWG conductors and a solder interface in reinforced thermoplastic, it offers reliable field installation while delivering long service life and reduced maintenance costs. For electrical assemblies and motor-control applications, it also fits neatly into existing Cam-Lok ecosystems, easing procurement and inventory management.
Product Information
Extended Description
E1010-111 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Red, Solder, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-111
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125439
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-111
Feature → Business Impact → Application: High current capability supports up to 150A continuous and 200A intermittent, enabling clean power distribution for demanding loads and reducing the need for parallel connectors in motor drives and control panels. Application: large feeders and equipment power hubs. Feature → Business Impact → Application: Cable size compatibility (#8-#4 AWG) ensures correct conductor sizing, improving safety margins and minimizing retrofit work during upgrades. Application: industrial machinery, welding power units, and portable power carts. Feature → Business Impact → Application: Solder contact provides a robust, vibration-resistant connection that maintains conductivity under dynamic conditions, lowering maintenance cycles. Application: panel wiring in manufacturing lines. Feature → Business Impact → Application: Reinforced thermoplastic housing delivers impact resistance and long-term durability, reducing enclosure replacements. Application: rugged factory floors and outdoor-rated enclosures. Feature → Business Impact → Application: Red color coding and brass contacts enhance mating reliability and ease of identification during assembly. Application: plug-and-receptacle mating in control cabinets. Feature → Business Impact → Application: NEC/CEC compliance and NEMA 1 rating give installers confidence in regulatory alignment and safe use in ordinary locations. Application: plant electrical distribution and machine control. All together, the E1010-111 streamlines wiring, improves uptime, and supports scalable, compliant power connections across industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-111?
Enquire Now
FAQs
Install begins by preparing #8-#4 AWG conductors and confirming 120 VAC supply. Insert the solder contacts as specified, mate with the corresponding Cam-Lok receptacle, and secure the reinforced thermoplastic housing. Verify the connection for a solid solder joint, then perform a functional test to confirm continuity and insulation integrity in accordance with NEC/CEC guidelines.
Yes. The E1010-111 is rated for up to 150A continuous and 200A intermittent, making it suitable for motor control applications and high-current feeders within ordinary locations. When pairing with compatible receptacles, it provides a robust, vibration-resistant power connection that reduces the risk of contact loosening under dynamic loads.
The E1010-111 adheres to NEC/CEC standards and carries a NEMA 1 enclosure rating for use in ordinary/non-hazardous locations. If you need formal documentation, refer to the included literature: NEC/CEC compliance statements, NEMA 1 details, and environmental suitability notes in the product datasheet and Eaton-Crouse-Hinds literature.
The plug supports #8-#4 AWG conductors with solder contacts, offering a secure, low-resistance electrical interface. This combination is chosen to maximize current-carrying capacity while maintaining reliable performance in vibration-heavy industrial environments.
The soldered, brass contact design in a reinforced thermoplastic housing reduces contact wear and loosening, decreasing maintenance intervals. Its high-current rating and compatibility with standard Cam-Lok ecosystems simplify sourcing and inventory, lowering downtime during inspections, replacements, or upgrades in production lines.
