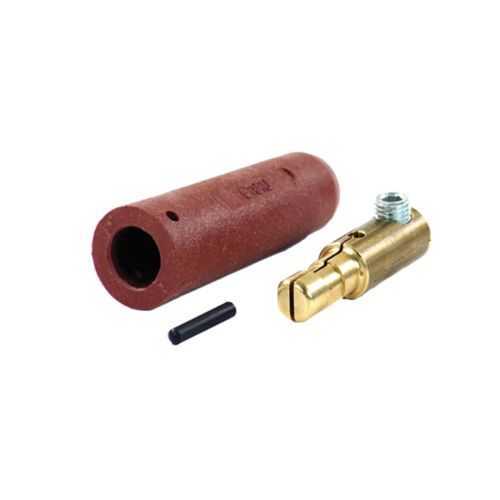

Eaton Crouse-Hinds Cam-Lok E1010-62 Plug - NEC/CEC
Part Number: E1010-62
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1010 plug enables safe, high-current power connections for industrial distribution across non-hazardous environments. Operators struggle with connectors that loosen, corrode, or overheat, causing downtime and safety risks. This plug aligns with NEC/CEC standards, offers a NEMA 1 rating, and is suited for Ordinary/Non-Hazardous locations, providing reliable performance in tough plant conditions. Its set-screw brass contacts and reinforced thermoplastic housing simplify installation while reducing maintenance costs, supporting fast, compliant field changes and long-term reliability for machines, conveyors, and robotics assemblies.
Product Information
Extended Description
E1010-62 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Black, Set screw, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-62
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125651
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-62
Maximum amperage up to 150A continuous and 200A intermittent, combined with a reinforced thermoplastic housing, delivers scalable power for heavy equipment. This enables manufacturers to standardize on a single Cam-Lok plug for multiple line applications, reducing part numbers and inventory complexity. In practice, you’ll see fewer field failures on machine tools and conveyors thanks to sturdy insulation and robust contact design. The plug accepts #8-#4 AWG conductors, and the set-screw connection provides a secure, vibration-resistant bond, lowering resistance fluctuations during operation and further reducing downtime. Constructed with brass contacts, it offers improved conductivity and corrosion resistance, extending service life in demanding environments. The overall compact dimensions (3.86 in L, 1.19 in H and W) and 1 lb weight enhance installation flexibility and ease of handling by maintenance staff. Compatibility with Cam-Lok F series receptacles enables quick disconnections for maintenance or reconfiguration, supporting faster line changes without compromising safety. These features align with NEC/CEC requirements and NEMA 1 enclosure expectations, helping facilities meet regulatory obligations while controlling lifecycle costs.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-62
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-62?
Enquire Now
FAQs
To install the E1010-62, align the plug with the matching Cam-Lok F series receptacle, insert the #8-#4 AWG conductors, and secure the conductors using the set screws as specified by the installation guidelines. Ensure the housing is clean and the contacts are dry before mating, then verify a solid mechanical fit and proper insulation around the termination to prevent arcing or looseness during operation.
The E1010-62 is rated for up to 150A continuous current and 200A intermittent, at 120 VAC. It accepts #8-#4 AWG conductors, with brass contact materials providing reliable conductivity. The combination supports robust power delivery for heavy equipment while maintaining compatibility with standard industrial conductors used on Cam-Lok systems.
Yes. The plug is specified for Ordinary/Non-Hazardous Locations and carries a NEMA 1 rating, aligning with NEC/CEC standards. This makes it appropriate for typical factory floors, control panels, and equipment rooms where exposure to non-hazardous conditions is expected, while providing dependable performance and regulatory alignment.
The E1010-62 complies with NEC/CEC standards and is appropriate for Ordinary/Non-Hazardous locations with a NEMA 1 rating. These certifications help ensure compliance with electrical codes and compatibility with standard industrial power distribution practices, reducing risk during commissioning and ongoing operations.
The plug’s reinforced thermoplastic housing and brass contacts resist wear and corrosion, reducing maintenance frequency. The set-screw termination delivers a secure, vibration-resistant connection that minimizes downtime due to loose contacts. Standardization on a single Cam-Lok plug for multiple line applications simplifies inventory and training, contributing to lower total cost of ownership.
