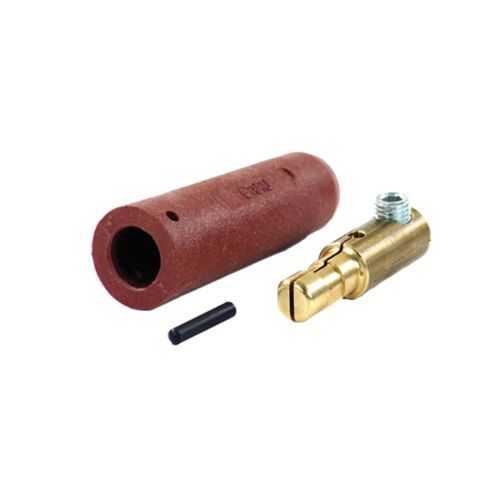

Eaton E1010-71 Cam-Lok F Series Plug - 120V AC, 150A
Part Number: E1010-71
Quick Summary
The Eaton Cam-Lok E1010-71 plug enables high-current, quick-connect power in industrial automation setups. In demanding environments, vibration and thermal cycling can drive downtime through loosened connections and failed terminations; this plug is designed to resist movement and provide reliable field maintenance. It complies with NEC/CEC standards, carries a NEMA 1 rating, and is suitable for ordinary/non-hazardous locations, making installation straightforward in panel wiring and machinery. With reinforced thermoplastic construction and brass contacts, it delivers durable, low-resistance power paths while supporting common control and motor loads. For engineers and buyers, the combination of robust performance and ease of integration translates to lower maintenance costs and higher system uptime.
Product Information
Extended Description
E1010-71 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Red, Set screw, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-71
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125705
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-71
Feature → Business Impact → Application: Up to 150A continuous and 200A intermittent at 120 VAC enables this Cam-Lok F Series plug to handle demanding industrial loads without frequent cable changes, reducing downtime and accelerating maintenance cycles. Application: Ideal for panel wiring and mobile equipment where quick connect/disconnect is required, improving throughput in assembly lines and service fleets. Feature → Business Impact → Application: Cable size compatibility #8-#4 AWG ensures versatile wiring options, minimizing the need for adapters and simplifying stock management in procurement. Application: Perfect for feeders and control circuits in non-hazardous environments where NEC/CEC compliance is mandatory. Feature → Business Impact → Application: Set-screw connections with brass contacts provide low contact resistance and secure mating, improving reliability in vibration-prone installations. Application: Suitable for high-vibration motors and automated machinery. Feature → Business Impact → Application: Reinforced thermoplastic enclosure in red color offers durable outdoor and indoor performance with clear visibility for safety checks. Application: Used in control panels, switchgear interfaces, and portable power applications, reducing risk of accidental disconnection. Feature → Business Impact → Application: Female gender design ensures safe, proven mating with compatible Cam-Lok receptacles, streamlining installation and inventory control. Application: Commonly deployed in modular power distribution assemblies and temporary power distributions at industrial sites.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-71
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-71?
Enquire Now
FAQs
The E1010-71 uses a set screw connection with brass contacts and mates with Cam-Lok F Series receptacles. It accepts #8-#4 AWG conductors and is designed for 120 VAC circuits in ordinary/ non-hazardous locations, simplifying panel wiring and equipment hookup.
The plug is rated for up to 150A continuous and 200A intermittent at 120 VAC, with a reinforced thermoplastic housing for durability in industrial environments.
No. The product is certified for Ordinary/Non-Hazardous Locations with NEC/CEC standards and a NEMA 1 rating, making it appropriate for non-hazardous indoor or sheltered outdoor installations.
It complies with NEC/CEC standards and carries a NEMA 1 rating, suitable for ordinary locations as part of compliant electrical assemblies.
Common uses include panel wiring, motor and equipment connections, and portable power distributions in non-hazardous industrial environments, where reliable high-current connections and quick mating are required.
