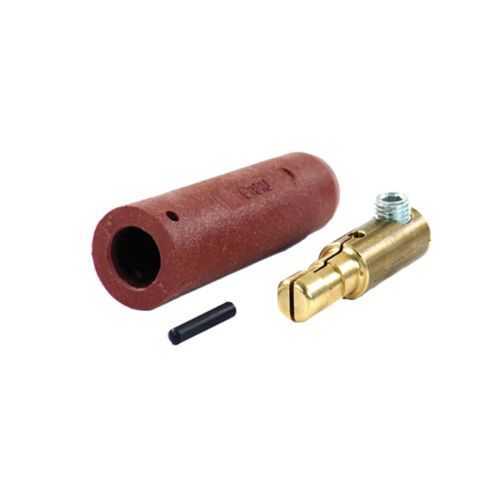

Eaton Crouse-Hinds E1010-72 Plug - NEC/CEC
Part Number: E1010-72
Quick Summary
The Eaton Crouse-Hinds Cam-Lok F Series E1010 plug delivers high-current power connections for industrial machinery. Engineers often battle intermittent connections caused by vibration, misalignment, or harsh environments. This plug is NEC/CEC compliant, carries a NEMA 1 rating, and is suitable for Ordinary/Non-Hazardous Locations, reducing regulatory risk in mixed-use facilities. With reinforced thermoplastic housing, brass contacts, and a secure set-screw termination, it delivers reliable 120 Vac service while enabling faster installations and lower total cost of ownership in wiring and connectivity projects.
Product Information
Extended Description
E1010-72 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug, Up to 150A continuous, 200A intermittent, #8-#4 AWG, Black, Set screw, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1010 plug
Catalog Number
E1010-72
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125712
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#8-#4 AWG
Amperage Rating
Up to 150A Continuous, 200A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
Eaton Specification Sheet - E1010-72
Feature: High current capability up to 150A continuous and 200A intermittent with #8-#4 AWG conductors. Business Impact: Supports demanding motor and power-transmission applications without derating, reducing downtime and extending equipment life. Application: Ideal for panel power feeds and machinery harnesses in industrial environments. Feature: 120 Vac rating with reinforced thermoplastic body. Business Impact: Provides robust insulation and resistance to daily wear, cutting maintenance costs and safeguarding personnel. Application: Suitable for indoor, ordinary locations in wiring and connectivity layouts. Feature: Set-screw connection with brass contacts. Business Impact: Ensures secure, vibration-resistant mating and low contact resistance for reliable performance as equipment vibrates. Application: Critical in pumps, conveyors, or presses where form factor matters. Feature: Female Cam-Lok F Series connector with color and size compatibility. Business Impact: Streamlines integration across Cam-Lok components, reducing installation time and training needs. Application: Widely used in control panels and power distribution hubs. Feature: Certifications and location suitability: NEC/CEC, NEMA 1, Ordinary/Non-Hazardous Locations. Business Impact: Simplifies compliance and permits smoother commissioning in plant facilities. Application: Enables broad deployment across facilities with standard safety requirements.
Get a Quick Quote for a Eaton Crouse-Hinds E1010-72
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1010-72?
Enquire Now
FAQs
When installing the E1010-72, ensure you are using #8-#4 AWG conductors and tighten the set screws to the recommended torque for brass contacts to maintain a secure, vibration-resistant connection. Verify 120 Vac operating conditions and confirm compatibility with your Cam-Lok mating receptacles. Use proper strain relief and enclosure to maintain IP protection in non-harsh environments.
The E1010-72 supports up to 150A continuous and 200A intermittent, with brass contacts and a robust reinforced thermoplastic body. This combination provides low contact resistance, thermal stability, and long-term reliability for motors, conveyors, and heavy equipment, reducing downtime and maintenance costs in high-demand power distribution tasks.
Yes. The E1010-72 is designed to meet NEC/CEC standards and carries a NEMA 1 rating, making it suitable for Ordinary/Non-Hazardous Locations. This reduces regulatory risk in typical plant environments and supports code-compliant installations in commercial and industrial wiring projects.
Absolutely. The E1010-72 is designed to mate with Cam-Lok F Series counterparts, leveraging a secure set-screw connection and brass contacts for dependable mating. This compatibility simplifies specifying and stocking components, improves installation speed, and ensures consistent performance across the Cam-Lok family.
Expect lower maintenance due to robust reinforcement and corrosion-resistant brass contacts. The durable thermoplastic body handles daily handling and vibration, lowering replacement frequency. ROI benefits include reduced downtime, faster installations, and smoother regulatory approvals thanks to NEC/CEC compliance and a familiar Cam-Lok ecosystem for ongoing support.
