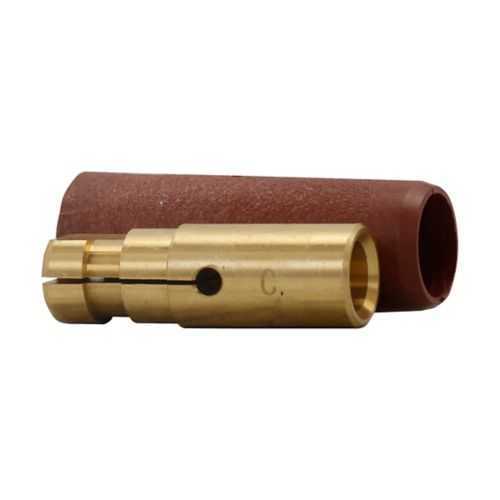

Eaton Crouse-Hinds E1012-103 Cam-Lok plug - 315A
Part Number: E1012-103
Quick Summary
The Eaton Crouse-Hinds Cam-Lok F Series E1012 plug is a high-current power connector designed for rugged industrial environments. It supports 1/0-3/0 AWG conductors at 120 Vac with continuous ratings up to 315A and intermittent ratings up to 550A. This addresses a common pain point for engineers: delivering reliable, vibration-tolerant connections in demanding equipment without frequent maintenance. The design aligns with NEC/CEC standards, offers a NEMA 1 rating, and is suitable for Ordinary/Non-Hazardous locations, helping ensure regulatory compliance in plant floors and service bays. By combining a reinforced thermoplastic housing with brass, solder contacts, the E1012-103 delivers durable performance, while compatible Cam-Lok F-Series receptacles simplify stocking and spares for your power-distribution network.
Product Information
Extended Description
E1012-103 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Red, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-103
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125828
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-103
Feature: High-current capacity up to 315A continuous and 550A intermittent. Business Impact: Enables single-point connections for large feeders, reducing complexity and potential junction failures. Application: ideal for motor feeders and main power feeds in automated lines. Feature: Solder contact method using brass contacts. Business Impact: Delivers lower contact resistance and improved vibration resistance versus crimp-only designs. Application: field-assembled connections in equipment that experiences vibration and temperature cycling. Feature: Reinforced thermoplastic housing. Business Impact: Provides rugged durability and chemical resistance, extending service life in harsh manufacturing environments. Application: panel-mounted connectors and outdoor or workshop installations. Feature: Cable size range 1/0-3/0 AWG and 120 Vac rating. Business Impact: Flexible compatibility with a range of feeders and safe voltage levels. Application: power distribution to large devices and control cabinets. Feature: Cam-Lok F Series compatibility and male plug configuration. Business Impact: Faster mating, reduced downtime, and simplified inventory with standard receptacles. Application: retrofit and new builds across industrial automation lines. Feature: Compact dimensions (3.86 in length, 1.19 in width, 1.19 in height) and weight of 1 lb. Business Impact: Easier handling during installation and less panel crowding. Application: tight-space installations in control panels and electrical rooms.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-103?
Enquire Now
FAQs
To install the E1012-103, power down the system and prepare 1/0-3/0 AWG conductors. Use the solder contact option as specified, mate with a compatible Cam-Lok F-Series receptacle, and verify the connection is secure within Ordinary/Non-Hazardous locations per NEC/CEC guidance. Ensure clean, dry connections and proper strain relief to maximize reliability and minimize vibration-related wear.
The E1012-103 supports up to 315A continuous current and 550A intermittent current, for 1/0-3/0 AWG conductors at 120 Vac. These ratings make it suitable for heavy feeders and motor drives in automated lines, providing robust performance in demanding industrial environments.
Yes. The plug is designed to conform with NEC/CEC standards and carries a NEMA 1 rating, intended for Ordinary/Non-Hazardous locations. This ensures regulatory alignment for typical industrial installations while facilitating safe, compliant power distribution.
Reliability comes from a reinforced thermoplastic housing, brass solder contacts, and a robust Cam-Lok mating design. These features provide excellent vibration tolerance, durable operation in harsh environments, and a long service life with minimal maintenance, which reduces downtime in manufacturing and process facilities.
The E1012-103 reduces maintenance costs by delivering a secure, low-resistance solder connection and rugged housing that withstands vibration and environmental exposure. Its compatibility with Cam-Lok F-Series receptacles streamlines spares inventory and speeds plant downtime recovery, delivering measurable uptime improvements and total cost of ownership benefits.
