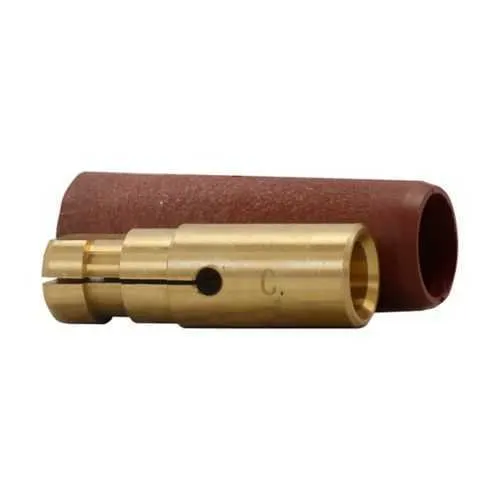

Eaton Crouse-Hinds E1012-104 Cam-Lok F Plug - Up to 315A
Part Number: E1012-104
Quick Summary
The Eaton Crouse-Hinds Cam-Lok F Series E1012 plug provides fast, secure high-current power connections for industrial equipment. Operators often contend with loose terminations, vibration-induced failures, and difficult installations in demanding environments. The E1012-104 plug aligns with NEC/CEC standards and is suitable for ordinary/non-hazardous locations, backed by a NEMA 1 rating. In practice, it enables faster panel assembly, reduces maintenance, and improves uptime across automation, packaging, and material-handling lines, leveraging Cam-Lok connectors for reliable power transfer and simplified field wiring. With 1/0-3/0 AWG cable compatibility, solder terminations, and a reinforced thermoplastic housing, it delivers consistent performance under thermal and vibrational stress.
Product Information
Extended Description
E1012-104 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Black, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-104
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125835
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-104
High current capability coupled with a flexible 1/0-3/0 AWG cable range supports large feeders and motor loads. This reduces the number of connectors in a system, simplifies wiring, and lowers installation time while improving current transfer reliability in panels and motor starters. Brass contacts with solder termination deliver low contact resistance and robust mating under vibration, providing a durable, arc-resistant joint that minimizes downtime in automated lines. The reinforced thermoplastic housing offers impact resistance and chemical tolerance, ensuring reliable operation in harsh factory environments while the black finish aids visibility and wear resistance during routine maintenance. Certification and standards alignment support compliance and safe operation: NEC/CEC, NEMA 1, Ordinary/Non-Hazardous locations, streamlining procurement and audit readiness. Its compact 3.86 inch length, 1.19 inch width and 1 lb weight enhance handling in crowded panels and tight installation spaces.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-104?
Enquire Now
FAQs
Power must be off before installation. Prepare conductors to the specified 1/0-3/0 AWG size, tin the ends if using solder contacts, and mate the plug with its Cam-Lok receptacle per the installation sheet. Secure the connection in the reinforced thermoplastic housing and verify proper mating and insulation to ensure a low-resistance path and vibration resistance in service.
The E1012-104 plug adheres to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations with a NEMA 1 rating. This combination supports compliance in typical indoor industrial environments and streamlines approval processes for panel builds and automation installations.
Yes. It is rated for up to 315A continuous current, with a 1/0-3/0 AWG cable range and 120 Vac, making it suitable for demanding control panel power and motor feed applications while maintaining reliable current transfer and ease of maintenance.
Cam-Lok F Series connectors offer fast, repeatable mating with robust current-carrying capability. The E1012-104 uses brass contacts and a reinforced thermoplastic housing to resist vibration and environmental stress, reducing downtime and simplifying field installations in automated systems and material-handling lines.
The plug is male, with brass contacts and a solder connection option, housed in reinforced thermoplastic. It features a black finish, accepts 1/0-3/0 AWG conductors, operates at 120 Vac, and weighs about 1 lb with dimensions roughly 3.86 in long and 1.19 in by 1.19 in in cross-section, enabling easy handling in tight spaces.
