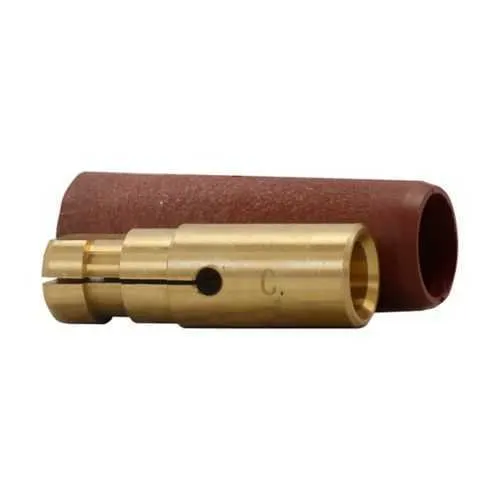

Eaton Crouse-Hinds E1012-105 Cam-Lok F Series - Up to 315A
Part Number: E1012-105
Quick Summary
E1012-105 Cam-Lok plug is a high-current power connector designed for industrial wiring and equipment distribution. In practice, engineers face unreliable connections and downtime when dealing with large AWG feeds and frequent mate/demate cycles. This solution aligns with NEC/CEC standards, features a NEMA 1 rating, and carries Ordinary/Non-Hazardous Locations area classification, ensuring safe operation in common plant environments. By leveraging solder contacts and reinforced thermoplastic housing, it delivers robust performance with straightforward installation, reducing maintenance costs and improving system uptime. For power distribution teams, this connector also supports scalable wiring schemes and dependable field serviceability, complementing Cam-Lok receptacles across a range of industrial applications.
Product Information
Extended Description
E1012-105 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Red, Solder, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-105
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125842
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-105
Feature: High-current capability up to 315A continuous supports large motor and equipment loads. Business Impact: Reduces the number of required connections and enhances overall efficiency by minimizing topology complexity. Application: Ideal for heavy machinery power feeds and large distribution panels. The result is lower installation time and fewer potential failure points. Feature: Solder contact for the connection interface improves electrical performance. Business Impact: Delivers lower contact resistance and improved long-term reliability, reducing maintenance cycles. Application: Suitable for critical control panels and high-vibration environments where secure mating is essential. Feature: Cable size range 3/0-4/0 AWG accommodates large feeders. Business Impact: Enables direct feeding of big conductors without mismatched terminations, cutting batch processing steps. Application: Panel feeders and feeder assemblies in manufacturing lines. Feature: Reinforced thermoplastic housing provides rugged protection. Business Impact: Enhances impact resistance and durability in non-hazardous industrial settings, lowering replacement costs. Application: Construction sites and equipment rooms with frequent handling. Feature: Male plug with brass contacts delivers reliable conductivity and fast mating. Business Impact: Reduces contact wear and improves throughput in high-cycle installations. Application: Quick-connect power distribution for portable machinery and test benches. Feature: 120 VAC operation aligns with common plant power systems. Business Impact: Simplifies integration with standard electrical infrastructure, minimizing adapters and conversions. Application: Shop floors, control panels, and equipment racks requiring standard voltage distribution.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-105
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-105?
Enquire Now
FAQs
The E1012-105 is designed for Cam-Lok F Series single-pole receptacles and uses a solder connection to ensure a secure, low-resistance bond. It supports 3/0-4/0 AWG conductors and operates at 120 VAC, making it suitable for NEC/CEC-compliant installations in ordinary non-hazardous locations.
The plug is rated up to 315A continuous and 550A intermittent, with a voltage rating of 120 VAC. It accommodates 3/0-4/0 AWG cables, offering a robust solution for high-current power distribution in industrial settings.
Industries with heavy motor loads and frequent connector cycling benefit the most, including manufacturing lines, construction sites, and power distribution panels. The reinforced thermoplastic housing and brass contacts deliver reliable performance in non-hazardous environments, while maintaining compatibility with standard Cam-Lok receptacles.
It complies with NEC/CEC standards, carries a NEMA 1 rating, and is classified for Ordinary/Non-Hazardous Locations. These certifications provide confidence in safety and suitability for typical industrial facilities.
The solder contact design and reinforced thermoplastic housing minimize contact wear and environmental impact, reducing maintenance cycles. This translates to lower downtime, longer service life for high-current feeders, and a favorable total cost of ownership for power-distribution installations.
