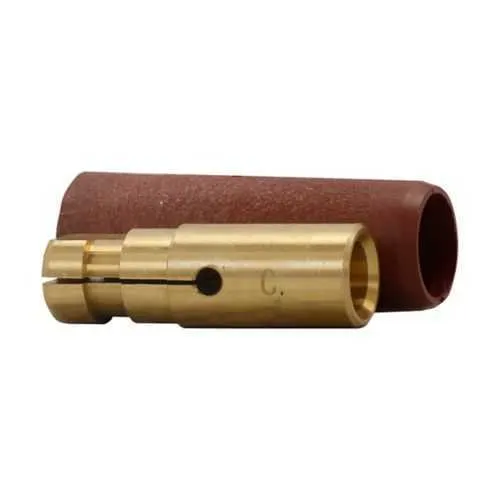

Eaton E1012-111 Cam-Lok Plug - NEC/CEC, NEMA 1
Part Number: E1012-111
Quick Summary
Cam-Lok F Series E1012-111 plug is a high-current power connector for 1/0–3/0 AWG cables in industrial power systems. Engineers struggle with high-current connections that withstand vibration, exposure, and the need for reliable, quick field replacements. Certified for NEC/CEC compliance, NEMA Rating 1, and Ordinary/Non-Hazardous Locations area classification, it fits standard industrial environments. This solution supports robust wiring & connectivity in control panels and heavy machinery, enabling faster maintenance workflows, safer disconnections, and lower total cost of ownership in high-demand environments. Time-to-value is improved through straightforward field replacement and standardized installation practices. In practice, engineers report fewer misconnections and faster commissioning when using the E1012-111 with Cam-Lok F Series components.
Product Information
Extended Description
E1012-111 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Red, Solder, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-111
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125873
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-111
Feature: High-current rating up to 315A continuous and 550A intermittent with 1/0–3/0 AWG cables. Benefit: Supports demanding industrial loads with fewer connectors and reduced heat buildup, enabling reliable power delivery to motors and conveyors. Application: Control panels and heavy machinery where uptime is critical. Feature: Solder connection with brass contacts. Benefit: enhances conductivity, corrosion resistance, and durable mating—reducing maintenance and contact resistance over time. Application: Panel assemblies and field terminations in rugged environments. Feature: Reinforced thermoplastic housing in red. Benefit: provides durable mechanical protection against impact and flexing, improving install longevity. Application: Harsh factory floors and outdoor non-hazardous locations. Feature: Compliance with NEC/CEC and NEMA 1 ratings. Benefit: ensures regulatory alignment and safe operation in standard industrial facilities, simplifying procurement and validation. Application: Industrial wiring & connectivity projects needing formal certification. Feature: Cam-Lok F Series compatibility and clear assembly references. Benefit: accelerates installation and service, reduces training time, and supports standardized field replacements. Application: OEMs and integrators deploying modular power distribution systems.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-111?
Enquire Now
FAQs
The E1012-111 Cam-Lok plug accepts 1/0–3/0 AWG conductors and is rated up to 315A continuous and 550A intermittent at 120 VAC. This combination supports high-power equipment, conveyors, and motor drives while preserving reliable conductivity through brass contacts and solder terminations.
Yes. The E1012-111 is designed as a Cam-Lok F Series single-pole plug compatible with corresponding receptacles, ensuring a secure, low-resistance connection. For proper installation, follow Eaton’s EB 8 instruction sheet and catalog pages to ensure mating accuracy and safe disconnection procedures.
The E1012-111 plug complies with NEC/CEC standards, carries a NEMA 1 rating, and is suitable for Ordinary/Non-Hazardous Locations. These certifications help ensure regulatory compliance, safe operation in standard manufacturing environments, and predictable performance in everyday industrial wiring projects.
Install using the solder connection with brass contacts in the reinforced thermoplastic housing. Use cable sizes 1/0–3/0 AWG and follow the Cam-Lok F Series installation guidelines (EB 8 sheet) for correct mating, strain relief, and secure terminal integrity, minimizing field commissioning time and operator risk.
The E1012-111 offers high current capability, robust materials, and certified safety, enabling longer service intervals and faster, safer field replacements. Its compatibility with standard Cam-Lok F Series components streamlines procurement, reduces downtime, and improves control-panel reliability in demanding manufacturing environments.
