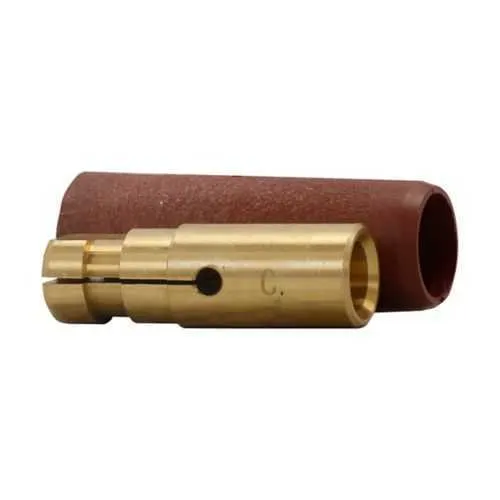

Eaton Crouse-Hinds E1012-114 Cam-Lok F Series Plug - NEC/CEC
Part Number: E1012-114
Quick Summary
Cam-Lok F Series E1012 plug from Eaton Crouse-Hinds delivers a rugged, high‑reliability power connection for industrial equipment. Field installations often struggle with loose contacts, misaligned mating, and downtime caused by incompatible connectors. This plug meets NEC/CEC standards, carries a NEMA 1 rating, and is suited for ordinary/non-hazardous locations, providing dependable operation in harsh environments. Designed for 3/0–4/0 AWG cables with a solder connection, it helps integrators reduce wiring time and maintenance costs while delivering consistent 120 Vac power. Its reinforced thermoplastic housing offers durability with manageable weight, supporting long service life in demanding applications.
Product Information
Extended Description
E1012-114 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Black, Solder, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-114
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275125903
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Solder
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-114
High current capability supports up to 315A continuous and 550A intermittent, enabling heavy loads to run through a single, reliable connection. This reduces the number of parallel connectors needed and minimizes potential contact resistance, resulting in improved overall efficiency in motor drives and power distribution panels. Ideal for 3/0-4/0 AWG cables, the E1012-114 simplifies large-diameter wiring while maintaining a compact form factor suitable for panel or outdoor installations. The solder connection provides a secure, low-impedance path, reducing the risk of connection loosening under vibration and thermal cycling, a common concern in industrial environments. The reinforced thermoplastic housing delivers impact resistance and weatherability without excessive weight, making field service and maintenance faster. Brass contact material ensures consistent electrical performance and longevity in continuous duty applications. The black finish offers good visibility in cluttered enclosures while withstanding typical workshop and plant conditions. Overall, this plug supports reliable, compliant power delivery for non-hazardous locations and standard industrial setups.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-114
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-114?
Enquire Now
FAQs
Installers should prepare 3/0-4/0 AWG cables and use the solder connection specified for the E1012-114. Verify the plug is used in ordinary/non-hazardous locations with 120 Vac systems. Confirm mating with a compatible Cam-Lok F series receptacle and ensure the reinforced thermoplastic housing is free of cracks or deformities prior to mating. Proper torque is not required for solder joints, but clean, secure soldering is essential for reliable performance.
The E1012-114 is rated up to 315A continuous and 550A intermittent, at 120 Vac. It is designed for 3/0-4/0 AWG conductors and employs brass contacts with a solder connection to deliver a stable, low-impedance path. These specs make it suitable for high-current feeders and motor-driven equipment in non-hazardous industrial environments.
This plug is specified for Ordinary/Non-Hazardous Locations with a NEMA 1 rating, aligning with NEC/CEC standards. It is not rated for Class I, II, or III hazardous locations or for submersible/wet conditions. For environments requiring higher ingress protection or hazardous-location certifications, select a Cam-Lok variant with appropriate IP/IEC ratings and certifications.
The E1012-114 is a Cam-Lok F Series plug designed to mate with standard Cam-Lok F Series receptacles. It uses a solder connection and accepts 3/0-4/0 AWG cables, enabling straightforward field assembly and servicing. When pairing, ensure both halves share the same series and molding configuration to maintain robust contact and alignment under load and vibration.
Using the E1012-114 plug delivers reduced downtime due to its secure solder contact, high current capacity, and durable reinforced thermoplastic housing. The 120 Vac operation and standard NEC/CEC compliance simplify commissioning and regulatory reviews. Overall, you gain reliable power delivery, faster installations, and lower lifecycle maintenance costs in non-hazardous industrial applications.
