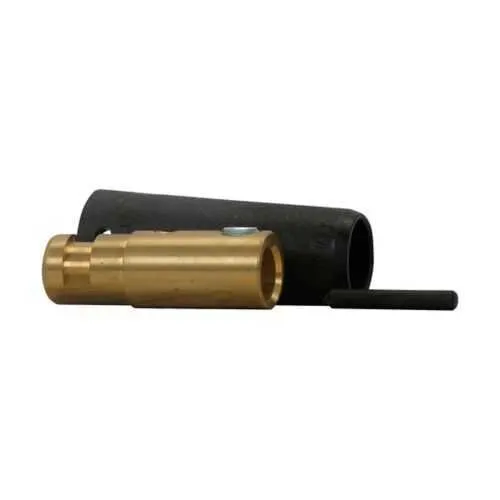

Eaton E1012-61K Cam-Lok F Series Plug - Up to 315A
Part Number: E1012-61K
Quick Summary
Eaton Cam-Lok plug E1012-61K provides high-current power connections for industrial distribution applications. Engineers often struggle with secure, rugged connectors that survive frequent disconnects, harsh environments, and strict safety requirements. This plug adheres to NEC/CEC standards, carries a NEMA Rating of 1, and aligns with ordinary/non-hazardous area classifications to ensure compliant performance. Its compact 3.86 in length and 1.19 in width simplifies panel integration while the red housing enhances visibility in busy environments. By pairing with Cam-Lok F series receptacles, it enables scalable power layouts and streamlined procurement for maintenance and operations teams.
Product Information
Extended Description
E1012-61K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-1/0 AWG, Red, Set screw, Brass contacts, Male, Reinforced thermoplastic, Single packaged unit, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-61K
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
UPC
662275887832
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#2-1/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Red
Gender
Male
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-61K
Feature: High-current capability up to 315A continuous and 550A intermittent. Business Impact: Supports large motors and heavy equipment without frequent replacement, reducing downtime. Application: Panel feeder assemblies and portable power carts in manufacturing lines. Feature: Set-screw connection with brass contacts. Business Impact: Ensures a secure, low-resistance connection that improves reliability and reduces contact wear. Application: Fixed and temporary power distribution where vibration is a concern. Feature: Reinforced thermoplastic housing. Business Impact: Provides impact resistance and temperature tolerance while keeping weight manageable. Application: Rugged environments on factory floors, outdoor installations, and mobile equipment. Feature: Cable size compatibility #2-1/0 AWG. Business Impact: Enables direct connection to large-diameter conductors without adapters, saving labor and torque time. Application: Heavy-duty feeders and feeders to motor starters. Feature: Single packaged unit design. Business Impact: Simplifies procurement, reduces inventory handling, and speeds splicing or field replacement. Application: On-site maintenance and rapid repair scenarios across industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-61K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-61K?
Enquire Now
FAQs
Yes. The E1012-61K Cam-Lok plug is specified for #2-1/0 AWG conductors and uses a set-screw termination with brass contacts, enabling a secure, code-compliant connection in industrial layouts.
It provides up to 315A continuous current and 550A intermittent current at 120 Vac, suitable for high-load applications while maintaining safe operation in ordinary/non-hazardous locations.
No; it is rated for Ordinary/Non-Hazardous Locations with a NEMA 1 enclosure rating, making it ideal for controlled factory settings and similar environments.
The plug adheres to NEC/CEC standards and carries a NEMA 1 rating, with area classification aligned to Ordinary/Non-Hazardous Locations for compliant installations.
Use the single packaged E1012-61K with Cam-Lok F series receptacles for faster field replacements, torque set-screws to manufacturer specs, and maintain clean, dry connections to extend contact life.
