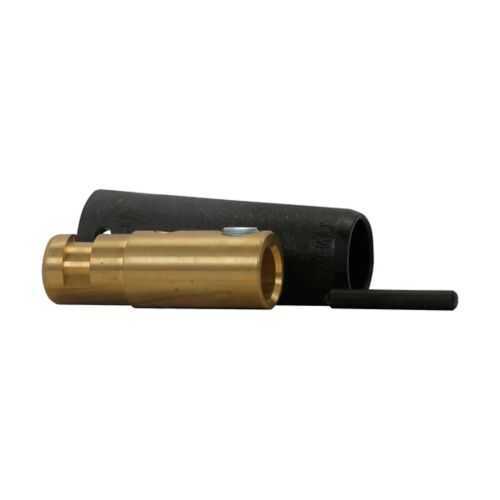

Eaton Crouse-Hinds E1012-62K Cam-Lok Plug - NEC/CEC
Part Number: E1012-62K
Quick Summary
The Eaton Crouse-Hinds E1012-62K Cam-Lok plug delivers high-current power connections for industrial equipment and distribution panels. Engineers often wrestle with unreliable, hard-to-service connectors when wiring #2-1/0 AWG cables in harsh or busy environments. This unit aligns with NEC/CEC standards, carries a NEMA 1 rating, and suits ordinary/non-hazardous locations, ensuring safe, compliant installations. With reinforced thermoplastic housing, brass contacts, and a set-screw termination, it minimizes field rework, speeds terminations, and reduces downtime. It supports scalable power distribution for heavy machinery, conveyors, and testing rigs while delivering dependable, code-compliant performance.
Product Information
Extended Description
E1012-62K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-1/0 AWG, Black, Set screw, Brass contacts, Male, Reinforced thermoplastic, Single packaged unit, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-62K
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
UPC
662275887849
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
#2-1/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Male
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-62K
Feature: High-current capability and 120 Vac rating enable safe operation of large conductors. Benefit: Reduces the need for multiple smaller joints, increasing system reliability and lowering wiring complexity in confined spaces. Application: Heavy machinery and distribution panels in manufacturing and processing facilities. Feature: Cable compatibility with #2-1/0 AWG conductors. Benefit: Supports large-diameter cables with secure, repeatable terminations, minimizing contact resistance and heat buildup. Application: Motor feeders and welding power supplies where high ampacity is required. Feature: Set-screw termination with brass contacts. Benefit: Ensures durable, low-resistance connections and straightforward maintenance, reducing downtime during servicing. Application: Field terminations on Cam-Lok F Series assemblies in plant environments. Feature: Reinforced thermoplastic housing and single packaged unit. Benefit: Enhanced impact resistance and simplified logistics, lowering inventory and installation time. Application: Indoor wiring in ordinary locations where vibration is common. Feature: Compact dimensions (3.86 in L x 1.19 in W x 1.19 in H) and male gender. Benefit: Easy panel fitment and reliable mating with compatible Cam-Lok receptacles, streamlining installation. Application: Control panels, electrical enclosures, and portable power setups.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-62K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-62K?
Enquire Now
FAQs
The E1012-62K is designed for #2-1/0 AWG conductors and uses a set-screw termination with brass contacts in a reinforced thermoplastic housing. It mates with Cam-Lok F Series receptacles and is supplied as a single packaged unit, simplifying inventory and field assembly. Follow manufacturer torque specs and verify conductor insulation for reliable performance.
This plug supports up to 315 A continuous and 550 A intermittent at 120 Vac. Continuous ratings indicate sustained operation within thermal limits, while intermittent ratings cover short peak demands. Design your system to meet worst-case conditions, ensuring conductor sizing, enclosure ventilation, and protection align with NEC/CEC requirements.
Yes. The E1012-62K is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards and carries a NEMA 1 rating, making it appropriate for indoor, non-hazardous plant environments. This helps ensure code-compliant installations, simplifies regulatory reviews, and supports safe, routine maintenance in manufacturing settings.
Install by preparing clean conductor terminations and seating them under the set screws with brass contacts properly engaged. Tighten per the recommended torque to avoid loosening from vibration. Ensure mating receptacles are compatible with Cam-Lok F Series. Regular inspections of contact surfaces and torque checks during maintenance help sustain low contact resistance and reliable power transfer.
Choosing the E1012-62K yields lower downtime through rugged construction, long-lasting brass contacts, and a field-serviceable, single-packaged unit. The 120 Vac rating covers common plant power needs, while the ability to handle large conductors reduces wiring complexity and spare-part counts. Over time, this translates to faster service, fewer failures, and lower total cost of ownership.
