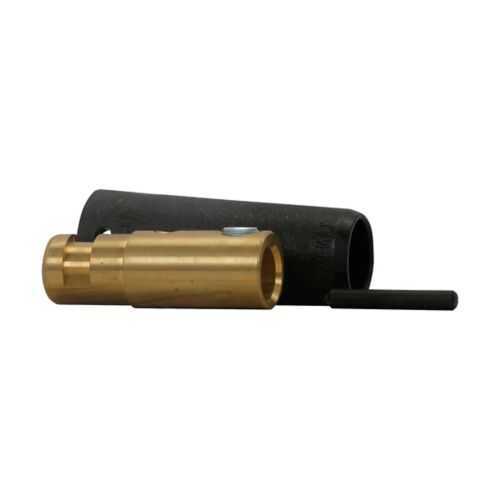

Eaton Crouse-Hinds E1012-63 Cam-Lok plug - 550A intermittent
Part Number: E1012-63
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012-63 plug enables quick, reliable power coupling for heavy-duty industrial equipment. Engineers often struggle with safe disconnects, arcing, and downtime when feeding high-current loads, and inconsistent terminations can drive maintenance costs. Designed for Ordinary/Non-Hazardous Locations and compliant with NEC/CEC standards, it carries a NEMA 1 rating for panel and enclosure use. Compatible with 1/0-3/0 AWG conductors and featuring a set-screw termination, reinforced thermoplastic housing, and brass contacts, it delivers reliable performance in demanding environments. In purchase and deployment scenarios, this connector reduces lead time, simplifies spares, and helps meet industry standards for safe, scalable power delivery.
Product Information
Extended Description
E1012-63 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Red, Set screw, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-63
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126245
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-63
Feature: High current capability and 1/0-3/0 AWG compatibility. Business Impact: Enables a single Cam-Lok connection to feed large loads with reduced parts and fewer failure points. Application: Ideal for welding cells, motor drives, and heavy automation feeders across manufacturing lines. The design minimizes field rework and ensures consistent performance under load. Feature: Secure set-screw termination and brass contacts. Business Impact: Delivers low contact resistance and rugged mating cycles, boosting reliability and reducing maintenance costs. Application: Field installations in control panels and power distribution blocks where vibration is common. The robust contact materials support thousands of mating cycles with minimal resistance growth. Feature: Reinforced thermoplastic housing with clear color coding. Business Impact: Provides chemical resistance, impact protection, and quick visual verification to prevent mis-wiring. Application: Factory floors and outdoor panels where dust, moisture, and abrasion are present. The housing aids standardization and inventory control. Feature: NEC/CEC compliance and NEMA 1 rating. Business Impact: Simplifies procurement, accelerates regulatory approvals, and minimizes risk in ordinary/non-hazardous locations. Application: Non-hazardous process lines in aerospace, automotive, and general automation environments. Feature: Comprehensive documentation and install resources. Business Impact: Access to EB 8 instruction sheets and data sheets reduces commissioning time and ensures best practices. Application: New equipment builds, retrofit projects, and service upgrades requiring dependable, ready-to-use Cam-Lok connections.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-63
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-63?
Enquire Now
FAQs
Power must be off before installation. Prepare conductors with ferrules if required, insert the conductors into the set-screw terminals, and tighten to the manufacturer-specified torque. Verify polarity and ensure the mating connector is clean and aligned before full engagement. Use the provided installation instructions to confirm proper sequence and safety steps.
The E1012-63 is part of Eaton Crouse-Hinds Cam-Lok F Series, sharing the same mating interface, contact materials, and termination method. It utilizes set-screw termination, brass contacts, and reinforced thermoplastic housing designed for 1/0-3/0 AWG, ensuring reliable mating with compatible F Series plugs and receptacles.
This plug supports NEC/CEC standards and carries a NEMA 1 rating for ordinary locations. It is suitable for ordinary/non-hazardous locations, helping facilities meet regulatory expectations while providing durable, safe operation in standard electrical environments.
By offering a high current rating with 1/0-3/0 AWG support and secure set-screw terminations, it reduces spare-part variety and downtime from misconnected or failed contacts. The durable reinforced housing and brass contacts extend service life, lowering maintenance costs and accelerating line start-up during upgrades or retrofits.
Yes. The E1012-63 is rated for 120 VAC operation and supports continuous current up to 315A with intermittent surges up to 550A. It is well suited for non-hazardous industrial panels, control rooms, and non-rare mission-critical loads requiring reliable, high-current connections.
