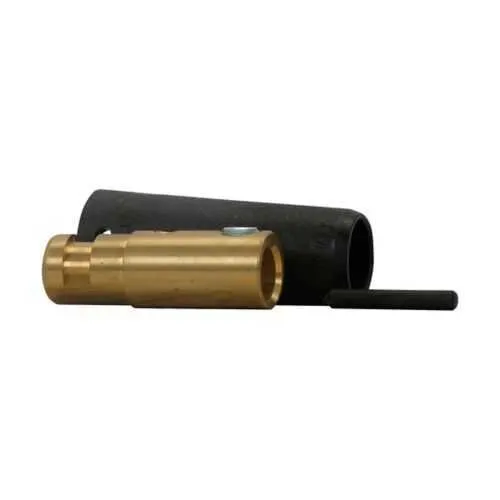

Eaton E1012-63K Cam-Lok F Series plug - NEC/CEC
Part Number: E1012-63K
Quick Summary
Eaton E1012-63K Cam-Lok F Series plug enables high-current power connections for industrial equipment and automation panels. Engineers often battle downtime caused by loose terminations and compatibility gaps during field maintenance. With NEC/CEC compliance, NEMA 1 rating, and ordinary-location suitability, you can trust reliable performance. Its 1/0-3/0 AWG capacity and reinforced thermoplastic housing streamline installation and reduce spare parts needs. Designed for up to 315 A continuous, 550 A intermittent and 120 Vac operation, it helps minimize downtime in critical lines. This combination supports reliable performance in automations and process controls. The design integrates brass contacts with set-screw terminations for secure, vibration-resistant connections across demanding environments.
Product Information
Extended Description
E1012-63K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Red, Set screw, Brass contacts, Male, Reinforced thermoplastic, Single packaged unit, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-63K
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
UPC
662275879097
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Red
Gender
Male
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-63K
Feature: High current rating up to 315 A continuous and 550 A intermittent. Business Impact: Enables heavy-load power delivery without frequent terminations or overheating, reducing unplanned downtime. Application: Ideal for motors, welders, and high-draw equipment in manufacturing lines. Feature: Cable size range 1/0-3/0 AWG. Business Impact: Accepts common large-diameter feeders and reduces the need for adapters or rewiring. Application: Power distribution and panel hookups in control rooms and machine cells. Feature: 120 Vac voltage rating. Business Impact: Compatible with standard U.S. mains, simplifying panel design and cross-connects. Application: Industrial automation and process control systems in facilities nationwide. Feature: Set screw termination. Business Impact: Delivers secure, vibration-resistant connections that maintain integrity in harsh environments. Application: The plug remains locked under shock and vibration on assembly lines. Feature: Reinforced thermoplastic housing. Business Impact: Improves impact resistance and chemical tolerance, extending service life in harsh plants. Application: Outdoor/numerous production environments where durability matters. Feature: Brass contact material and single packaged unit. Business Impact: Ensures reliable conductivity and easier handling in the field, reducing maintenance steps. Application: Fast, dependable field installations for fixed or mobile power supplies.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-63K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-63K?
Enquire Now
FAQs
For proper installation, ensure cable size matches 1/0-3/0 AWG, use the set-screw termination as the securing method, and verify the reinforced thermoplastic housing remains undamaged. The unit is rated for 120 Vac and up to 315 A continuous, which guides breaker sizing and protective equipment. Inspect brass contacts for corrosion and tighten screws to factory torque specs during commissioning.
This E1012-63K plug supports up to 315 A continuous and 550 A intermittent, at 120 Vac. It accepts 1/0-3/0 AWG cables, with brass contacts and a set-screw connection. These specifications enable robust connections in high-draw applications while maintaining secure terminations under vibration and occasional misalignment.
Yes. The plug is rated for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. It carries a NEMA 1 rating, making it appropriate for indoor, non-hazardous service in manufacturing floors, control panels, and other general industrial settings where standard safety compliance is required.
Yes. The E1012-63K is designed as a Cam-Lok F Series plug compatible with standard F Series receptacles, ensuring quick mating and secure interconnections. The set-screw termination combined with brass contacts provides reliable electrical contact during rapid installation and maintenance activities.
The plug reduces maintenance by delivering vibration-resistant terminations and durable reinforced thermoplastic housing, lowering re-termination frequency. Compatibility with 1/0-3/0 AWG cables simplifies cabling, reducing spare parts and downtime. In automation lines with frequent stops and starts, the E1012-63K offers improved uptime and safer, longer-lasting connections.
