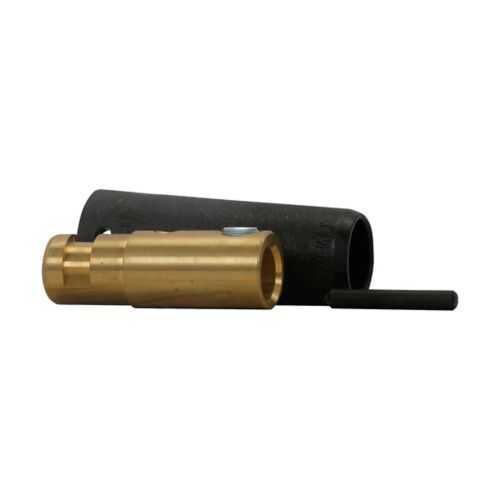

Eaton Crouse-Hinds E1012-64 Cam-Lok plug - Up to 315A
Part Number: E1012-64
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012-64 plug enables reliable power connections for industrial equipment. Many projects suffer downtime from mismatched connectors and field-fit issues that drive costly rework. It adheres to NEC/CEC standards and carries a NEMA 1 rating, making it suitable for ordinary/non-hazardous locations. In addition to high-current capability, the E1012-64 supports 1/0–3/0 AWG conductors at 120 V, delivering predictable performance and long service life. Designed for Cam-Lok F Series compatibility, it simplifies installation across machines, panels, and portable power carts, helping manufacturers reduce training time and optimize power distribution.
Product Information
Extended Description
E1012-64 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Black, Set screw, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-64
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126269
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-64
Feature → Business Impact → Application: High current capability and broad cable compatibility. Up to 315A continuous and 550A intermittent ratings reduce the need for multiple connectors and support faster motor starts and overload resilience on heavy machinery. Application: motor drives, power distribution panels, and high-load automation lines. Feature → Business Impact → Application: Robust housing and contact integrity. Reinforced thermoplastic housing with brass contacts delivers low resistance, corrosion resistance, and long life, cutting replacement costs and ensuring stable performance in manufacturing environments. Feature → Business Impact → Application: Set screw termination. The secure set screw connection minimizes vibration-induced loosening in noisy or shock-prone applications, improving reliability for conveyors and CNC machines. Feature → Business Impact → Application: Compact form factor. The 3.86 in length and 1.19 in width/height design enables dense panel layouts and easy field servicing, reducing installation time. Feature → Business Impact → Application: Compliance and safety. NEC/CEC compliance and NEMA 1 compatibility provide confidence for ordinary locations, aligning with facility standards while simplifying procurement for automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-64
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-64?
Enquire Now
FAQs
Yes, the E1012-64 is designed for Cam-Lok F Series single-pole configurations. It uses a set screw termination, requiring standard hex/Allen tools to secure conductors. Ensure conductors are within 1/0–3/0 AWG and torque specifications are followed to preserve contact integrity and vibration resistance in industrial environments.
The E1012-64 supports up to 315A continuous and 550A intermittent ratings, with cable compatibility for 1/0–3/0 AWG conductors. It operates at 120 VAC and uses brass contacts within a reinforced thermoplastic housing, ensuring low resistance and reliable operation for demanding applications.
This plug is intended for ordinary/non-hazardous locations (area classification Ordinary/Non-Hazardous). It complies with NEC/CEC standards and uses NEMA 1-rated construction, making it suitable for standard manufacturing floors, assembly lines, and equipment enclosures where robust, high-current connections are required.
The E1012-64 adheres to NEC/CEC standards and carries a NEMA 1 rating. These certifications support safe operation in typical plant environments and help meet electrical installation requirements for industrial automation projects.
The set screw termination provides a secure, vibration-resistant connection, while brass contacts offer durable, low-resistance circuitry. Reinforced thermoplastic housing protects against impact and chemical exposure. Together, these features reduce field rework, extend service intervals, and lower total ownership cost in automated systems.
