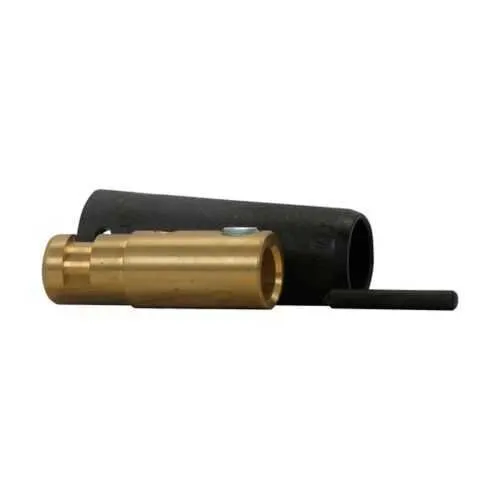

Eaton Cam-Lok E1012-65 Plug - NEC/CEC, 315A Continuous
Part Number: E1012-65
Quick Summary
Eaton Cam-Lok E1012-65 plug provides fast, secure power connections for industrial equipment. Many installers struggle with high-current connectors that loosen, corrode, or fail in harsh environments, causing costly downtime. This plug meets NEC/CEC standards, carries a NEMA 1 rating, and is suitable for ordinary/non-hazardous locations. Designed for 3/0–4/0 AWG cables and 120 Vac operation, it supports up to 315 A continuous (550 A intermittent), enabling safe, reliable power distribution. For procurement teams and engineers, the rugged Cam-Lok F Series delivers predictable performance and lower life-cycle risk across demanding industrial settings. Its reinforced thermoplastic housing and brass contacts resist heat, vibration, and wear, while a secure set-screw termination simplifies field assembly and maintenance.
Product Information
Extended Description
E1012-65 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Red, Set screw, Brass contacts, Male, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-65
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126276
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-65
High amperage capability and voltage: The E1012-65 provides up to 315A continuous, 550A intermittent at 120 Vac, enabling support for demanding loads without the need for parallel connectors. This reduces wiring complexity and improves overall system reliability in industrial power distribution scenarios. Application: large motors, welding rigs, or distribution panels where dependable high-current connections are critical. The business impact is measurable downtime reduction and lower installation costs due to fewer components and simpler wiring.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-65
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-65?
Enquire Now
FAQs
The E1012-65 accepts 3/0 to 4/0 AWG cables. It uses a set-screw termination with brass contacts and reinforced thermoplastic housing to ensure a secure, low-resistance connection suitable for high-current applications in industrial environments.
It is rated up to 315A continuous and 550A intermittent at 120 Vac. This enables reliable power delivery for heavy loads while maintaining safe operation within typical industrial control and distribution systems.
Yes. It features an Ordinary/Non-Hazardous area classification and a NEMA 1 rating, making it appropriate for indoor, non-hazardous environments where robust, secure connections are required.
Cam-Lok units provide quick mating and demating, reducing downtime during maintenance or reconfiguration. The set-screw termination and brass contacts deliver a secure, vibration-resistant connection, while the reinforced thermoplastic housing adds durability in rugged settings.
The plug complies with NEC/CEC standards and carries a NEMA Rating of 1. It is designed for ordinary/non-hazardous locations, aligning with common industrial electrical installation requirements.
