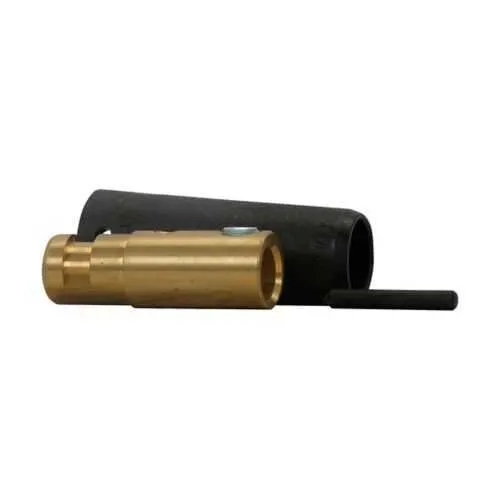

Eaton Crouse-Hinds E1012-72 Cam-Lok F Series Plug 315A
Part Number: E1012-72
Quick Summary
The Eaton Crouse-Hinds E1012-72 Cam-Lok F Series plug delivers reliable, high-current power connections for demanding industrial and outdoor electrical systems. When uptime matters, you need a robust, easy-to-install connector that resists vibration and contaminants. NEC/CEC compliance and NEMA 1 enclosure capability ensure suitability for ordinary/non-hazardous locations, supporting safe operation in harsh environments. This solution combines reinforced thermoplastic housing with brass contacts to deliver long life and predictable performance, while reducing maintenance costs. It’s well-suited for industrial automation, plant power distribution, and heavy-duty equipment applications where reliability drives output and ROI.
Product Information
Extended Description
E1012-72 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-3/0 AWG, Black, Set screw, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-72
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126320
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
1/0-3/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-72
Feature: 1/0-3/0 AWG cable compatibility and a high current rating. Benefit: minimizes connector failure and reduces downtime by enabling a single, robust termination for large feeders. Application: ideal for heavy machinery power distribution in conveyors and presses. Feature: Up to 315A continuous and 550A intermittent amperage rating. Benefit: supports peak loads without overheating, improving system reliability and reducing spare parts needs. Application: continuous duty service in non-hazardous environments. Feature: Brass contact material with set screw connection. Benefit: ensures low contact resistance and secure termination even under vibration; lowers maintenance cycles. Application: field replacements and retrofit projects in manufacturing lines. Feature: Reinforced thermoplastic housing, black color. Benefit: rugged, impact-resistant housing that withstands industrial wear; simplifies identification and inventory. Application: outdoor installations and long-term installations in non-hazardous locations. Feature: 120 Vac voltage rating and compact 3.86 in length with 1.19 in width and 1.19 in height. Benefit: compact footprint enables easier panel integration and cable routing. Application: panel-mount or plug-in power distribution blocks in automation racks.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-72
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-72?
Enquire Now
FAQs
The E1012-72 uses a secure set-screw termination with brass contacts and a reinforced thermoplastic housing. It accommodates 1/0-3/0 AWG cables and is designed for 120 Vac systems. For best results, ensure proper conductor seating, torque per the manufacturer guidelines, and compatible mating receptacles to maintain the high-current rating and reliable connections in industrial environments.
Yes. The E1012-72 is specified for 1/0-3/0 AWG conductors, providing a secure, high-current connection. When pairing with receptacles, verify alignment of the female contact geometry and ensure the set-screw is tightened to the recommended torque to maintain low contact resistance under load.
This plug is designed for NEC/CEC standards compliance and is rated for NEMA 1 enclosures suitable for ordinary/non-hazardous locations. It’s built to meet industry expectations for reliability in industrial automation environments, reducing risk and simplifying regulatory alignment for plant installations.
Intended for ordinary, non-hazardous locations, including factory floors, control panels, and machinery power distributions. Its reinforced thermoplastic housing and brass contacts are optimized for vibration and routine industrial exposure, delivering stable performance in automation and conveyor systems.
Regular inspection of the set-screw termination, contact cleanliness, and connector mating faces helps preserve low resistance and thermal performance. The brass contact material plus a robust housing design reduces wear, enabling longer service intervals and lower replacement costs in high-cycle automation environments.
