Eaton Crouse-Hinds E1012-74 Cam-Lok Plug - 315A/550A
Part Number: E1012-74
Quick Summary
The Eaton Cam-Lok E1012-74 plug provides high-current, 120 VAC power connections for heavy industrial equipment. Users often struggle with downtime caused by unreliable connectors and slow field servicing; this plug is designed for secure, fast mating and straightforward maintenance to minimize interruptions. It meets NEC/CEC standards and carries a NEMA 1 enclosure rating for ordinary/non-hazardous locations, ensuring safe operation in standard electrical environments. With Cam-Lok F Series compatibility and a 3/0-4/0 AWG cable range, it supports scalable power distribution while delivering durable, cost-efficient performance for demanding applications.
Product Information
Extended Description

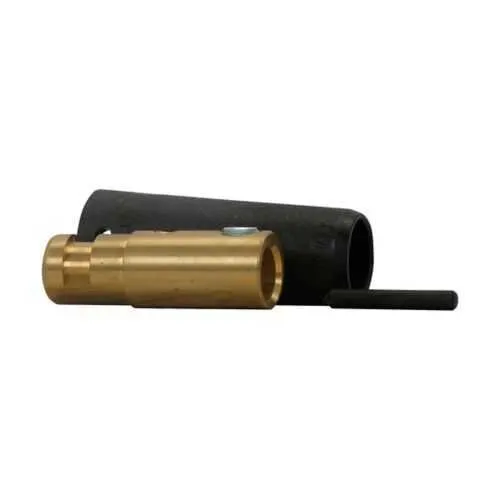

E1012-74 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Black, Set screw, Brass contacts, Female, Reinforced thermoplastic, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-74
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126344
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Reinforced thermoplastic
Connection type
Set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-74
Feature: High-current capability with ratings up to 315A continuous and 550A intermittent. Business Impact: Enables reliable power delivery to large motors and equipment, reducing startup delays and unplanned downtime. Application: Ideal for packaging lines, presses, and material handling systems that demand consistent high current. Feature: Cable compatibility for 3/0-4/0 AWG conductors. Business Impact: Simplifies wiring with standard-size cables, lowering installation time and labor costs. Application: Field upgrades and new installations where large-diameter feeders are used. Feature: Reinforced thermoplastic housing with brass contacts and a set-screw connection. Business Impact: Improves durability in harsh environments and provides secure, repeatable connections, lowering maintenance cycles. Application: Industrial floors, warehouses, and manufacturing sites with frequent plug-in/mull-tie operations. Feature: Female gender and Cam-Lok F Series interlock compatibility. Business Impact: Ensures reliable mating with receptacles and easy replacement without rewiring, reducing downtime. Application: Systems that rely on modular, quick-connect power distribution. Feature: NEC/CEC compliance and NEMA 1 enclosure rating for Ordinary/Non-Hazardous Locations. Business Impact: Simplifies regulatory compliance and safety documentation, minimizing audit findings. Application: General-purpose industrial facilities and non-hazardous environments where standard electrical codes apply.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-74
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-74?
Enquire Now
FAQs
To install, verify cable size is 3/0-4/0 AWG, strip conductors to proper length, insert into the set-screw terminals, and tighten to manufacturer torque specs. Ensure mating receptacles are Cam-Lok F Series and that the enclosure is suitable for ordinary/non-hazardous locations. Confirm 120 VAC supply and perform a continuity check before commissioning to prevent arcing or loose connections.
The E1012-74 is rated up to 315A continuous and 550A intermittent, operating at 120 VAC. It supports 3/0-4/0 AWG conductors and uses brass contacts with a set-screw connection, delivering secure, high-current power transfer suitable for large motors and heavy equipment.
Yes. The E1012-74 is designed for Ordinary/Non-Hazardous Locations per area classification, adhering to NEC/CEC standards with a NEMA 1 rating. It is well-suited for general manufacturing floors, assembly lines, and non-hazardous process areas where reliable, non-explosion-proof power connections are required.
This Cam-Lok E1012-74 aligns with NEC/CEC standards and carries a NEMA 1 enclosure rating for ordinary locations. It is designed for 120 VAC operation with a reinforced thermoplastic housing and brass contact material, providing compliant, durable connectivity in standard industrial settings.
Field-serviceable design and robust brass contacts reduce maintenance downtime and replacement costs. The 3/0-4/0 AWG compatibility simplifies wiring, and the secure set-screw connection minimizes oxidation and loosening. Overall, you gain lower downtime, faster maintenance cycles, and predictable power delivery for high-demand equipment.
