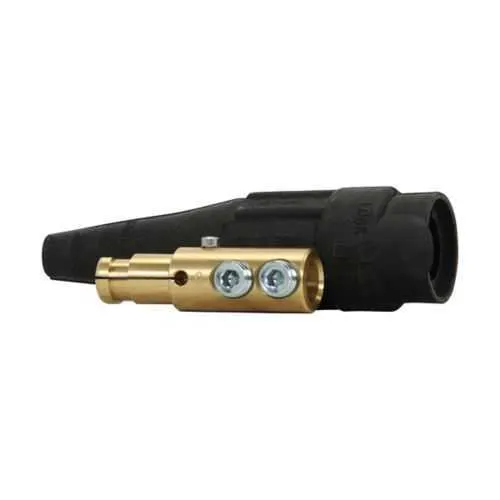

Eaton Crouse-Hinds Cam-Lok E1012-8008 plug - 3R
Part Number: E1012-8008
Quick Summary
Cam-Lok E1012-8008 plug is a high-current power connector for industrial automation applications. It delivers reliable, secure terminations amid demanding environments and simplifies wiring with Crimp or solder options. This design aligns with NEC/CEC standards and the NEMA 3R enclosure rating for outdoor or indoor use in ordinary locations. With compatibility to #2-#1 AWG conductors and 120 Vac systems, it supports scalable power distribution while reducing installation time and maintenance costs. The 1 lb, compact unit pairs well with Cam-Lok F Series receptacles, delivering consistent performance across demanding production lines.
Product Information
Extended Description
E1012-8008 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-#1 AWG, Red, Crimp or solder, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8008
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275903815
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-#1 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8008
Feature: High current capability with broad cable compatibility. Benefit: Handles up to 315A continuous and 550A intermittent, supporting #2-#1 AWG cables for large motors and feeders. Application: Industrial feeders and motor starters in manufacturing lines. Feature: Crimp or solder termination with brass contacts. Benefit: Flexible installation options, strong electrical contact resistance, and quick field terminations. Application: Panel assemblies and field wiring where reliability matters. Feature: Thermoplastic elastomer housing in red. Benefit: Durable, impact-resistant housing that withstands vibration and temperature swings. Application: Harsh factory floors and outdoor installations. Feature: NEC/CEC compliance and NEMA 3R rating. Benefit: Safe installations with regulatory alignment and weather-resistant performance. Application: Non-hazardous locations, control cabinets, and outdoor enclosures. Feature: Cam-Lok F Series compatibility and precise dimensions (5.28 in length, 1.63 in height, 1 lb weight). Benefit: Streamlined procurement and predictable fit for existing Cam-Lok ecosystems. Application: New builds and maintenance projects requiring standardized connectors. For installers, the EB 8 instruction sheet and product literature provide step-by-step crimping and soldering guidance to minimize rework and achieve consistent results.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8008?
Enquire Now
FAQs
The E1012-8008 Cam-Lok plug is designed for #2-#1 AWG conductors and supports crimp or solder terminations. It integrates with Cam-Lok F Series receptacles for a consistent mating interface. For best results, follow Eaton’s EB 8 installation sheet to ensure proper crimped ferrule sizes, conductor strip length, and secure mechanical retention to maintain conductive integrity over time.
Key specs include an amperage rating up to 315A continuous and 550A intermittent, voltage rating of 120 Vac, and brass contact material. The plug’s thermoplastic elastomer housing is red, with crimp or solder connections, designed to deliver reliable current transfer with minimal contact resistance in non-hazardous locations.
This connector is classified for Ordinary/Non-Hazardous Locations and carries a NEMA 3R rating for weather resistance in appropriate environments. It is not specified for hazardous (classified) locations. When hazardous area compliance is required, select a part rated for that environment and consult applicable safety standards.
The E1012-8008 plug adheres to NEC/CEC standards and carries a NEMA 3R rating, suitable for non-hazardous exterior or interior installations. The product’s documentation supports compliance considerations for industrial power distribution systems and helps ensure regulatory alignment during procurement and installation.
By using a robust Cam-Lok design with brass contacts and a durable TPE housing, maintenance intervals can be extended due to reliable terminations and reduced contact wear. Its compatibility with crimp or solder methods allows on-site flexibility, decreasing downtime during replacements and enabling faster, repeatable field servicing—leading to lower total cost of ownership over equipment lifecycles.
