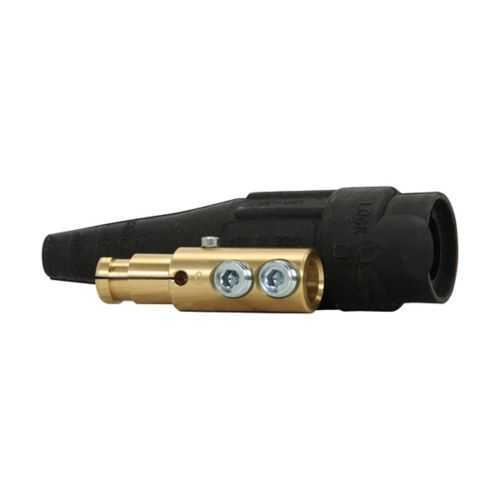

Eaton Crouse-Hinds E1012-8012 Cam-Lok F Plug - 3R
Part Number: E1012-8012
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012-8012 plug delivers high-current, reliable power connections for industrial automation panels. Engineers often wrestle with field terminations, cable variety, and the need for quick, vibration-resistant connections. This connector meets NEC/CEC standards, carries a NEMA 3R rating, and is suitable for Ordinary/Non-Hazardous Locations. With 1/0–2/0 AWG compatibility and a 120 V rating, it simplifies procurement, reduces panel wiring complexity, and supports fast service in demanding environments.
Product Information
Extended Description
E1012-8012 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-2/0 AWG, Black, Crimp or solder, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8012
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126382
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
1/0-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8012
High-current capability translates to real-world savings: Up to 315A continuous and 550A intermittent, Cam-Lok E1012-8012 handles heavy loads without frequent terminations. The business impact is reduced downtime and fewer connectors required, making it ideal for motor drives, power distribution, and heavy equipment interfaces. It supports 1/0–2/0 AWG cables, which lowers the risk of mis-sizing and provides a robust, scalable solution for expanding panels and equipment fleets. The thermoplastic elastomer (TPE) body and brass contacts deliver durability and reliable conductivity in challenging environments, reducing maintenance cycles and replacement costs. Crimp or solder termination options enable field-install flexibility alongside controlled installation in factory settings. With a compact footprint, dimensions of 5.28 in length, 1.63 in height, and 1.5 in width, plus a 1 lb weight, it fits tight panel layouts and simplifies handling during assembly and service.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8012?
Enquire Now
FAQs
The E1012-8012 supports 1/0 to 2/0 AWG cables, enabling high-current connections for large power conductors. It is rated up to 315 A continuous and 550 A intermittent, making it suitable for demanding automation panels and motor drives without frequent terminations.
Yes. It is specified for Ordinary/Non-Hazardous Locations and carries a NEMA 3R rating, which provides weather resistance suitable for indoor and some outdoor applications in non-hazardous environments.
Termination options include both crimp and solder methods. Brass contacts ensure solid electrical performance, while the choice depends on your assembly process, tools, and field conditions. Crimping is typically faster for production environments; soldering may be preferred for certain custom or legacy installations.
Ideal for panel power distribution, machine wiring, and heavy equipment interconnections, especially where large conductor sizes and high current are required. It also helps reduce assembly time in motor drive and control panel projects due to its straightforward termination options and compact form factor.
The connector aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations with a NEMA 3R housing, providing regulatory assurance for typical industrial environments and non-hazardous locations.
