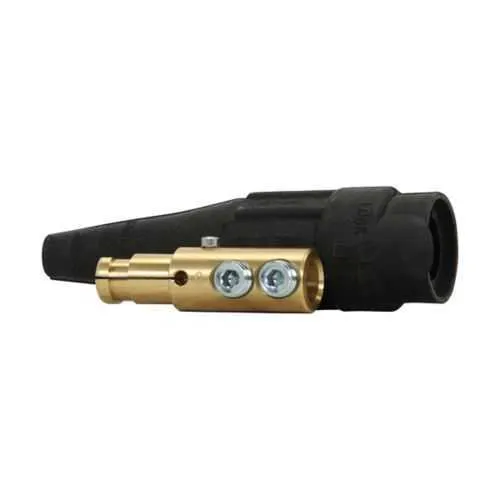

Eaton Crouse-Hinds E1012-8032 Cam-Lok F Series plug - 3R Rated
Part Number: E1012-8032
Quick Summary
The Eaton Crouse-Hinds E1012-8032 Cam-Lok F Series plug is a high-current electrical connector designed for rugged industrial power distribution. Engineers often struggle with reliable, heavy-duty connections that can safely handle 3/0–4/0 AWG conductors in demanding environments. This plug meets NEC/CEC standards and features a NEMA 3R-rated enclosure for weather resistance, suitable for ordinary/non-hazardous locations. Its compact, red, male connector uses brass contacts and a thermoplastic elastomer (TPE) housing to deliver dependable performance in factory floors, outdoor sites, and service trucks. Crimp or solder termination options provide installation flexibility, while the robust design reduces downtime and supplier complexity, improving project timelines and lifecycle costs. The combination of safety, reliability, and field-install practicality supports both new builds and retrofits.
Product Information
Extended Description
E1012-8032 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Red, Crimp or solder, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8032
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275903839
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8032
Feature: High current capability up to 315A continuous and 550A intermittent with 3/0-4/0 AWG cables. → Business Impact: Enables fewer parallel connections and consolidated power paths, reducing hardware and installation time. → Application: Large equipment feeders and welding power distribution in manufacturing lines. Feature: Crimp or solder termination. → Business Impact: Flexible field termination supports diverse installation scenarios, lowering service time and inventory needs. → Application: On-site retrofits and new builds where termination method may vary. Feature: Brass contact material in a thermoplastic elastomer (TPE) housing. → Business Impact: Delivers reliable conductivity with durable environmental resistance, minimizing contact resistance and maintenance cycles. → Application: Harsh industrial environments, indoor-outdoor use, and high-vibration settings. Feature: Red, obvious identification with compact form factor. → Business Impact: Reduces error rates during panel assembly and maintenance, speeding up commissioning. → Application: Control rooms, switchgear bays, and equipment enclosures where quick recognition matters. Feature: NEMA 3R enclosure and NEC/CEC compliance. → Business Impact: Ensures regulatory alignment and weather-aware performance for ordinary/non-hazardous locations, lowering compliance risk. → Application: Outdoor installations and non-hazardous facilities with strict safety standards. Feature: Dimensions and weight (5.28 in L, 1.63 in H, 1.5 in W, 1 lb). → Business Impact: Predictable footprint simplifies layout planning and stock control, improving install efficiency. → Application: Enclosed panels and restricted spaces where precise fit is essential.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8032
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8032?
Enquire Now
FAQs
What you need to know: this plug supports 3/0-4/0 AWG cables and offers both crimp and solder termination options. Ensure proper insulation and secure mating to achieve 315A continuous current or 550A intermittent, with attention to enclosure fit and panel cutouts. Check that site conditions align with Ordinary/Non-Hazardous locations per NEC/CEC guidance.
The E1012-8032 is designed to NEC/CEC-compliant standards with a NEMA 3R enclosure. It is suitable for Ordinary/Non-Hazardous Locations, delivering reliable performance in typical industrial environments and outdoor installations.
Yes. With a NEMA 3R-rated housing and ordinary/non-hazardous location suitability, this Cam-Lok F Series plug is appropriate for outdoor and semi-exposed industrial settings, provided the environment does not introduce hazardous conditions.
This is a Cam-Lok F Series single-pole plug designed to mate with corresponding Cam-Lok F Series receptacles and related single-pole connectors from the same family, ensuring consistent polarization and reliable high-current performance.
Key specs include 5.28 in length, 1.63 in height, 1.5 in width, 1 lb weight, 3/0-4/0 AWG cable size, 120 Vac, and up to 315A continuous / 550A intermittent. These details guide panel space planning, tool inventories, and maintenance scheduling for high-current wiring.
