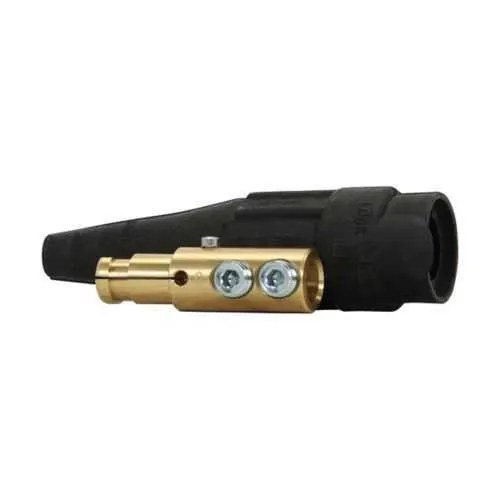

Eaton Crouse-Hinds E1012-8058 Cam-Lok F Series plug - 3R
Part Number: E1012-8058
Quick Summary
Eaton Crouse-Hinds E1012-8058 Cam-Lok F Series plug provides rugged, high-current power connections for industrial machinery. The challenge many users face is downtime from unreliable connections in harsh environments, where vibration, moisture, and heavy loads stress standard plugs. This unit carries a NEMA 3R rating for outdoor or damp locations, NEC/CEC compliance for electrical safety, and operation in Ordinary/Non-Hazardous locations. With crimp or solder terminations, brass contacts, and a durable thermoplastic elastomer housing, it enables fast field installation and long service life, reducing maintenance costs. Its compact form and established Cam-Lok F compatibility support scalable power networks, simplifying procurement and asset management for maintenance teams and project engineers alike.
Product Information
Extended Description
E1012-8058 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-#1 AWG, Red, Crimp or solder, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8058
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275903846
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-#1 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8058
Feature: High-current capability up to 315A continuous and 550A intermittent. Benefit: Supports demanding loads without frequent re-terminations, improving line uptime and equipment availability. Application: Heavy industrial machines and power distribution panels where peak demand occurs. Feature: Crimp or solder termination. Benefit: Flexibility for field service and factory assembly, reducing installation time and rework. Application: On-site retrofits or new builds where serviceability matters. Feature: Brass contact material. Benefit: Reliable electrical conductivity with durable wear resistance, extending connector life in vibration-prone environments. Application: Recessed or exposed power connections on portable equipment. Feature: Thermoplastic elastomer body in red. Benefit: Weather-resistant housing with improved grip and visibility, aiding safe, quick disconnects. Application: Outdoor installations and harsh shop floors. Feature: Cable size #2-#1 AWG. Benefit: Wide conductor compatibility minimizes need for multiple part numbers, lowering inventory costs. Application: Large-gauge power feed for motors and feeders. Feature: NEMA 3R and NEC/CEC compliance. Benefit: Ensures compliance and safe operation in common industrial spaces, reducing risk of infractions and retraining needs. Application: Routine maintenance, audits, and upgrade projects. Feature: Compact dimensions (6.06 in length, 1.5 in width/height) and 1 lb weight. Benefit: Easy handling, reduced cabinet footprint, and simpler stocking in service vans. Application: Field service and modular installations where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8058
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8058?
Enquire Now
FAQs
The E1012-8058 plug is designed for crimp or solder terminations and accepts #2-#1 AWG conductors. For field installations, prepare the conductor ends, secure them with the chosen termination method, and mate with the corresponding Cam-Lok F receptacle. The brass contacts provide reliable conductivity, while the red TPE housing offers grip and weather resistance. Always follow the installation instructions EB 8 for Cam-Lok E1012 connectors to ensure a compliant and safe connection.
The Cam-Lok F Series E1012-8058 plug is rated up to 315A continuous and 550A intermittent at 120 VAC, using #2-#1 AWG conductors. Termination options include crimp or solder, with brass contact material for durability. The rugged thermoplastic elastomer housing provides environmental resistance, while NEMA 3R compatibility supports outdoor or damp locations. This combination supports high-demand industrial applications with dependable electrical performance.
Yes. The E1012-8058 is specified for Ordinary/Non-Hazardous locations with a NEMA 3R rating, which is suitable for outdoor or damp environments. The red TPE housing adds grip and moisture resistance, and brass contacts maintain corrosion resistance under typical industrial conditions. Ensure installation follows NEC/CEC guidelines and uses compatible Cam-Lok F series receptacles for a secure, code-compliant connection.
This Cam-Lok plug complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, with a NEMA 3R enclosure rating for weather exposure. These certifications support safe operation in most non-hazardous industrial settings and facilitate regulatory adherence during audits and maintenance planning.
Resources include the Cam-Lok family brochures, catalog pages, installation instructions (EB 8), and the Eaton specification sheet for E1012-8058. The plug’s crimp or solder versatility, durable brass contacts, and compact, lightweight design reduce installation time and spare-part inventory. In the long term, reliable connections lower maintenance costs and downtime, delivering a favorable total cost of ownership in industrial power distribution.
