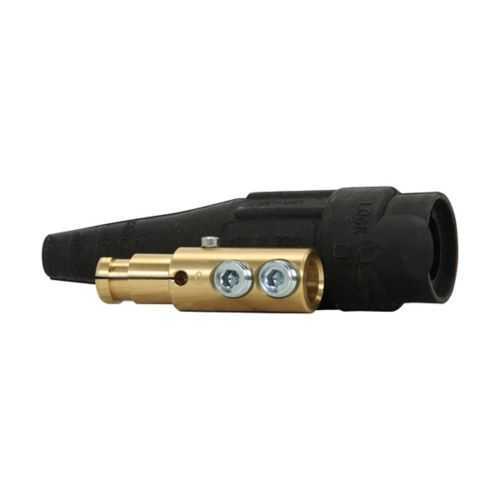

Eaton Cam-Lok F E1012 plug - E1012-8062 315A/550A
Part Number: E1012-8062
Quick Summary
The Eaton Cam-Lok F Series E1012 plug is a rugged, high-current connector designed for industrial power delivery. It enables reliable, fast-mating connections in demanding equipment setups, reducing downtime due to loose terminations and heat-affected connections. This plug is engineered to endure continuous duty environments while preserving electrical integrity and safety. With NEC/CEC compliance and a NEMA 3R rating for protection in various environments, it also supports ordinary/non-hazardous locations. The 1/0-2/0 AWG conductor compatibility and 120 VAC rating align with common control and power circuits, delivering value through faster installations, reduced maintenance, and long-term lifecycle cost savings.
Product Information
Extended Description
E1012-8062 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-2/0 AWG, Black, Crimp or solder, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8062
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275903853
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
1/0-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8062
High current capability directly translates to fewer connectors and shorter cable runs in heavy machinery and distribution panels, resulting in improved system efficiency and reduced installation time. For engineers, this means lower upfront costs and predictable performance under peak loads. The Cam-Lok E1012 supports 1/0-2/0 AWG cables, enabling designers to standardize on a single large-gauge solution across machines, which simplifies splices, terminations, and field service. Termination flexibility is enhanced by both crimp and solder options, allowing on-site technicians to choose the fastest method without compromising reliability, reducing project lead times. Brass contacts ensure low contact resistance and durable mating over many cycles, boosting uptime in crowded control rooms and remote facilities. The thermoplastic elastomer housing adds wear resistance and environmental sealing, extending connector life in workshop, warehouse, and outdoor installations. All told, the unit’s 120 VAC rating is ideal for control circuits and power supplies, delivering dependable coupling for modern automation systems.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8062?
Enquire Now
FAQs
To install the E1012-8062, prepare the cable ends, select crimp or solder terminals, and align the conductor sizing with the Cam-Lok F Series mating interface. Use appropriate crimp tooling for brass contacts or solder exposure per installation sheets. Ensure tightened, clean connections and verify insulation clearance. Field splicing should follow NEC/CEC guidelines and the product’s installation instructions for best performance and safety.
The E1012-8062 is rated up to 315A continuous current and 550A intermittent, with a nominal voltage rating of 120 VAC. This makes it suitable for high-demand machine power feeds and control circuits in industrial environments, while maintaining reliable conductivity and minimizing thermal buildup under peak loads.
Yes. The connector is specified for Ordinary/Non-Hazardous locations and carries NEC/CEC compliance with a NEMA 3R rating, providing protection against rain and limited exposure to moisture. It’s ideal for factory floors, warehouses, and outdoor installations adjacent to non-hazardous equipment where robust, field-serviceable power connections are required.
The E1012-8062 aligns with NEC/CEC standards and carries a NEMA 3R rating for outdoor/indoor protection. Its ordinary/non-hazardous area classification supports a wide range of facility applications. Always reference the official Eaton datasheets and installation guides to ensure conformance with local electrical codes and site requirements.
Brass contact surfaces resist corrosion and maintain low contact resistance across mating cycles, while a durable TPE housing withstands abrasion and environmental exposure. The option for crimp or solder terminations simplifies field servicing, reducing downtime. Regular inspection of mating interfaces and insulation integrity helps sustain performance and extend service life in demanding automation environments.
