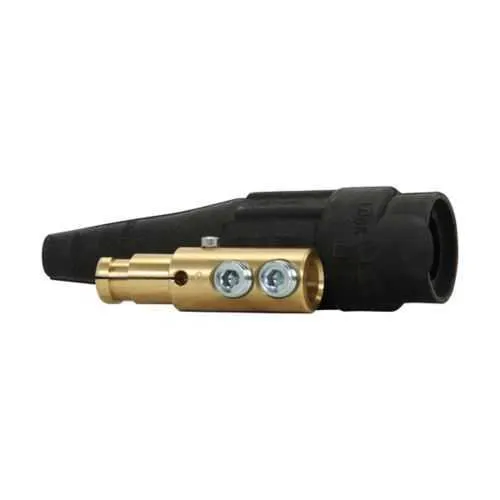

Eaton Crouse-Hinds E1012-8064 Cam-Lok F Series Plug - 3R
Part Number: E1012-8064
Quick Summary
The Eaton Crouse-Hinds E1012-8064 Cam-Lok F Series plug delivers high-current, reliable power connections for industrial machinery. Manufacturers and maintenance teams often contend with downtime from mis-mated connectors or unreliable terminations in harsh environments. This plug carries a NEMA 3R rating for outdoor use, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations, helping facilities meet safety standards. With 1/0–2/0 AWG cable compatibility and options for crimp or solder terminations, it streamlines installation while delivering durable brass contacts in a thermoplastic elastomer housing. Together, these features translate to faster changeouts, reduced spare-part costs, and improved uptime for motor drives, feeders, and power distribution panels.
Product Information
Extended Description
E1012-8064 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 1/0-2/0 AWG, Red, Crimp or solder, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8064
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275903877
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
1/0-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8064
High current capability drives fewer connectors and lower resistance losses: the E1012-8064 supports up to 315A continuous and 550A intermittent with 1/0–2/0 AWG cables. This simplifies large-power feeds and reduces junctions where faults often occur. In motor drives, feeders, and heavy equipment power distribution, that translates to faster panel wiring and improved overall efficiency. Rugged housing and durable contacts: built in a Thermoplastic Elastomer (TPE) body, the plug withstands oils, abrasion, and outdoor exposure. Brass contacts offer low resistance, strong mechanical engagement, and long-term corrosion resistance, improving connection integrity across temperature swings. Flexible termination choices: termination options include crimp or soldering, enabling field installs with standard tooling. The red color and female gender aid correct mating and quick troubleshooting at a busy job site, while the compatible Cam-Lok F Series ecosystem ensures easy replacements. Compact, measured form factor: at 6.06 in long with 1.5 in width and height and a 1 lb weight, the E1012-8064 fits tight panels and crowded equipment racks. A 120 Vac rating aligns with common industrial control circuits, and the 1/0–2/0 AWG range covers a wide set of power leads without re-termination. Compliance and safety focus: with a NEMA 3R rating and NEC/CEC compliance, it supports safe operation in ordinary/non-hazardous locations and outdoor installations. The robust materials and field-termination options help reduce maintenance costs and extend service life in harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8064
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8064?
Enquire Now
FAQs
For field install, prepare conductors to the correct length and strip per your crimp or solder method. Use the brass contacts provided and follow Eaton’s EB 8 Cam-Lok instruction sheets for the proper crimping or soldering procedure. Verify correct mating orientation, inspect the TPE housing for damage, and perform a continuity check after termination and mating to ensure a solid, low-resistance connection.
Yes. The plug carries a NEMA 3R rating suitable for outdoor and weather-exposed environments. It is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards. Outdoor installations benefit from the rugged housing and brass contact design, while indoor applications remain compliant with the same electrical safety framework.
Ideal applications include motor drives, power distribution panels, feeders, and other high-current connections in manufacturing and processing facilities. The 1/0–2/0 AWG range and 315A continuous/550A intermittent rating support robust power delivery to demanding equipment, reducing connector counts and simplifying wiring schemes in control rooms and plant floors.
The E1012-8064 meets NEC/CEC standards and bears a NEMA 3R rating, suitable for ordinary/non-hazardous locations and outdoor use. Its design aligns with industry practice for safe, durable high-current connections, and it is compatible with Cam-Lok F Series components to maintain system-wide electrical conformity.
Expect reduced downtime due to reliable mating and durable brass contacts, plus lower maintenance costs from field-terminable crimp or solder options. The plug’s rugged TPE housing and 3R rating support longer service life in harsh environments, delivering faster installation, fewer part substitutions, and improved overall uptime for critical power circuits.
