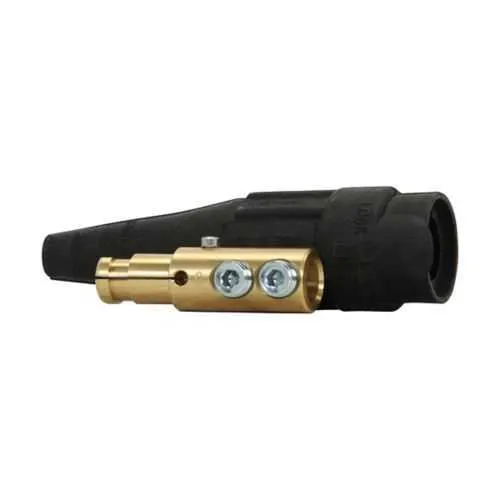

Eaton Crouse-Hinds E1012-8080 Cam-Lok Plug - 3R
Part Number: E1012-8080
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012-8080 plug provides high-current, reliable power connections for demanding industrial equipment. In harsh installations, vibration, corrosion and field mating errors can drive downtime and costly maintenance. It carries NEC/CEC compliance and a NEMA 3R rating for weather-resistant, ordinary/non-hazardous locations, delivering confidence across indoor and outdoor applications. This design pairs rugged construction with flexible termination options, enabling faster installations and reduced life-cycle cost for wiring & connectivity systems in motors, conveyors, and process equipment. With 3/0-4/0 AWG compatibility and a female Cam-Lok interface, technicians benefit from consistent mating, simplified inventory, and improved project throughput.
Product Information
Extended Description
E1012-8080 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 3/0-4/0 AWG, Black, Crimp or solder, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8080
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275870216
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
3/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Crimp or solder
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8080
Feature: High-current capability with rugged Cam-Lok F Series construction. The E1012-8080 plug is rated for up to 315 A continuous and 550 A intermittent, designed to handle 3/0–4/0 AWG cables while maintaining a compact footprint for tight equipment spaces. Business Impact: Enables reliable power distribution under peak demand, reducing unplanned downtime and extending service intervals. Application: Heavy machinery, motors, conveyors, and process equipment in manufacturing and industrial facilities. Feature: Termination options with crimp or solder methods. Brass contacts paired with a Thermoplastic elastomer housing support quick field termination and durable connections. Business Impact: Lowers installation time and error rates, delivering faster commissioning and easier field service. Application: Panel wiring, inline power distribution, and retrofit projects. Feature: Rugged housing and materials. Thermoplastic elastomer (TPE) housing in black provides chemical resistance and resilience in demanding environments. Business Impact: Longer service life in harsh factories, reducing replacement cycles and maintenance costs. Application: Wet or dusty production floors, outdoor equipment enclosures, and outdoor process areas. Feature: Environmental and safety certifications. NEMA 3R rating and NEC/CEC compliance with Ordinary/Non-Hazardous Location classification give installers confidence in code adherence and safe operation. Business Impact: Facilitates regulatory approval, safer installations, and broader industry acceptance. Application: Agencies, facilities, and OEMs requiring orderly commissioning and reliable performance. Feature: Compact size and weight. With a length of 6.06 in, width 1.5 in, height 1.5 in, and weight of 1 lb, the E1012-8080 fits in crowded panels and tight spaces. Business Impact: Simplified cabinet layouts, reduced installation footprint, and easier handling during maintenance. Application: Retrofit and new-build projects with space constraints.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8080?
Enquire Now
FAQs
The E1012-8080 supports both crimp and solder terminations with brass contacts inside a durable Thermoplastic Elastomer (TPE) housing. For crimp installs, use the appropriate Cam-Lok crimp tooling and prepared 3/0-4/0 AWG conductors. For solder, ensure proper heat control and clean joints. The female interface mates reliably with compatible Cam-Lok receptacles, delivering a robust, field-serviceable connection.
This Cam-Lok F Series plug, model E1012-8080, supports up to 315 A continuous and 550 A intermittent, with cable size compatibility for 3/0-4/0 AWG. It is rated for 120 Vac and uses brass contacts in a female configuration. This makes it suitable for high-current applications such as motors, conveyors, and heavy industrial equipment.
The E1012-8080 carries NEC/CEC compliance and a NEMA 3R rating, providing weather resistance suitable for ordinary/non-hazardous locations. This combination supports safe operation in indoor and outdoor industrial environments, meeting typical compliance requirements for electrical connectors used in manufacturing, processing, and material handling facilities.
Common applications include high-current power distribution for motors, heavy conveyors, metalworking machinery, and process equipment. Industries such as manufacturing, oil and gas, etc., benefit from the Cam-Lok F Series E1012-8080 due to its rugged construction, reliable crimp or solder termination, and weather-resistant performance in non-hazardous locations.
Plan for minimal maintenance due to brass contacts and robust TPE housing that resist wear in harsh environments. The option to terminate in the field reduces downtime during installation or retrofits. The higher current capability and durable construction translate to lower repair costs and longer intervals between replacements, improving total cost of ownership for power distribution assemblies.
