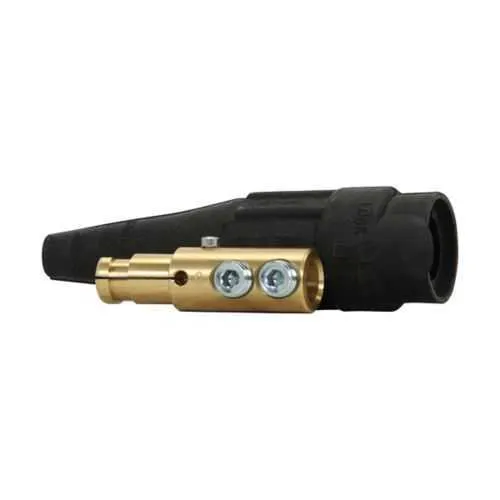

Eaton Crouse-Hinds E1012-8314 Cam-Lok F Series plug - 3R
Part Number: E1012-8314
Quick Summary
E1012-8314 Cam-Lok F Series plug by Eaton Crouse-Hinds provides high-current power connections for industrial equipment and automation panels. This plug is designed to handle demanding motor loads with 2/0–4/0 AWG conductors and up to 315 A continuous or 550 A intermittent at 120 VAC, delivering dependable performance in challenging environments. A common pain point is maintaining secure connections under vibration and frequent mating cycles; with brass contacts and a tough thermoplastic elastomer housing, these plugs offer repeatable engagement and long service life. The product aligns with NEC/CEC standards and carries a NEMA 3R rating for reliable operation in ordinary/non-hazardous locations. For procurement teams, this translates to improved uptime, simplified maintenance, and consistent interchangeability within the Cam-Lok ecosystem.
Product Information
Extended Description
E1012-8314 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 2/0-4/0 AWG, Red, Single set screw, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8314
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126504
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Single set screw
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8314
Feature: High current capability supports up to 315 A continuous and 550 A intermittent with 2/0-4/0 AWG conductors. Business Impact: Reduces the need for multiple connections and minimizes voltage drop in heavy machinery, cutting wiring complexity and downtime. Application: Motor drives, presses, and large feeders in manufacturing lines. Feature: Cable size compatibility 2/0-4/0 AWG. Business Impact: Enables versatile power distribution with a single connector family, lowering inventory costs and speeding installation. Application: Panel feeds and service drops in industrial plants. Feature: Brass contacts. Business Impact: Delivers low contact resistance and durable engagement for long life under repeated mating cycles. Application: Frequent connect/disconnect scenarios in automation lines. Feature: Thermoplastic elastomer (TPE) housing. Business Impact: Provides impact resistance, environmental protection, and a comfortable grip for technicians, reducing wear. Application: Harsh factory floors and outdoor installations. Feature: Single set screw connection. Business Impact: Simplifies installation and reduces torque-related damage, improving reliability and reducing labour time. Application: Panel-mount plugs and quick-release assemblies. Feature: NEMA 3R rating and NEC/CEC compliance for Ordinary/Non-Hazardous Locations. Business Impact: Streamlines regulatory approvals and ensures safe operation in standard environments. Application: Indoor and outdoor industrial panels without hazardous location requirements.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8314
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8314?
Enquire Now
FAQs
The E1012-8314 is designed to mate with Cam-Lok F Series receptacles and receptacle panels within non-hazardous locations. It uses a single set screw for a secure attachment to 2/0-4/0 AWG conductors and brass contacts to ensure reliable engagement even after frequent cycles. For best results, pair with the corresponding Cam-Lok F Series components and follow Eaton installation instructions to torque to spec and maintain proper insulation coverage.
You can expect up to 315 A continuous and 550 A intermittent with 2/0-4/0 AWG conductors at 120 VAC. This makes the E1012-8314 suitable for high-demand loads such as motors and heavy feeders. Design considerations include ensuring cable insulation rating matches the environment, monitoring temperature rise, and using proper termination practices to preserve the rated performance over time.
Yes, the E1012-8314 is intended for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards alignment with a NEMA 3R rating. This combination supports safe operation in typical industrial spaces, both indoor and-outdoor, while simplifying compliance documentation during audits and procurement.
Regular visual inspections should check for worn contacts, damaged insulation, and signs of corrosion on brass contacts. Replace worn components promptly to maintain current ratings, and re-torque the single set screw as part of preventive maintenance. Establish a replacement plan aligned with your motor startup cycles and environmental exposure to minimize unexpected downtime.
Official Eaton resources provide access to the Cam-Lok catalog pages, E1012 instruction sheets, and the E1012-8314 datasheet. Use the links in the product downloads section to obtain technical sheets, installation procedures, and compliance data to support engineering reviews and safe field installations.
