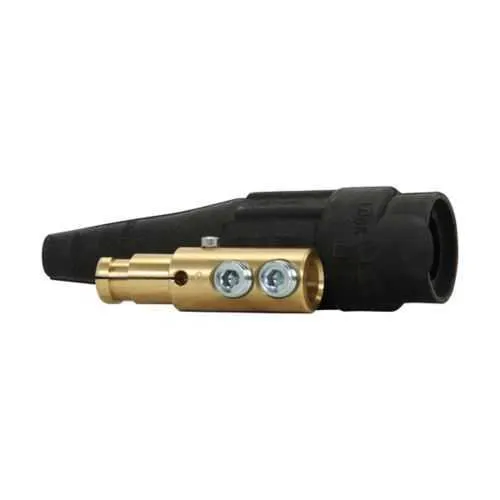

Eaton Cam-Lok E1012-8325 Plug - 315A, 120V, 3R rated
Part Number: E1012-8325
Quick Summary
The Eaton Cam-Lok E1012-8325 plug provides fast, secure power connections for industrial equipment. This solution reduces downtime by delivering robust, vibration-resistant performance in demanding environments. With NEC/CEC compliance and a NEMA 3R enclosure, it supports safe operation in ordinary and non-hazardous locations. Designed for heavy-duty applications, it uses brass contacts and a thermoplastic elastomer housing to withstand daily wear. The unit is sized for #2-2/0 AWG cables at 120 VAC, offering reliable power distribution for OEM systems and maintenance operations. By combining high-current capability with straightforward installation, this plug delivers business value through improved reliability and reduced spare-part complexity.
Product Information
Extended Description
E1012-8325 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-2/0 AWG, Black, Single set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8325
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126511
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Single set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8325
Feature: High current capability up to 315A continuous and 550A intermittent. Benefit: Enables equipment to run demanding loads without parallel connectors, reducing component counts and wiring complexity. Application: CNC machines, welding stations, andRobotics power feeds in production lines. Feature: Cable compatibility for #2-2/0 AWG. Benefit: Supports large-diameter conductors with a compact plug design, lowering inventory needs and simplifying field upgrades. Application: Power distribution panels and motor starter panels in manufacturing plants. Feature: Brass contact material with a thermoplastic elastomer (TPE) body. Benefit: Ensures low contact resistance, durable mating surfaces, and long service life in busy industrial floors. Application: High-cycle environments where connectors endure frequent mating and un-mating. Feature: Single set screw connection. Benefit: Eases field termination and reduces installation torque concerns, improving reliability in tight spaces. Application: Panel-mounted prefixes and control cabinets with limited clearance. Feature: NEMA 3R enclosure rating and NEC/CEC compliance. Benefit: Delivers weather-resistant protection in ordinary locations, simplifying regulatory adherence. Application: Indoor non-hazardous environments and routine maintenance bays. Feature: Female gender with brass contacts and black TPE housing. Benefit: Provides secure, labeled polarity and corrosion-resistant performance, aiding quick identification and serviceability. Application: Receptacle-mated installations in automated lines and machinery docks.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8325
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8325?
Enquire Now
FAQs
The E1012-8325 is designed for Cam-Lok F Series mating interfaces, featuring a single set screw termination for secure cable clamping and brass contacts to ensure reliable electrical contact. It aligns with standard Cam-Lok F Series receptacles, making field upgrades straightforward while maintaining consistent polarity and performance across assemblies.
This plug is rated up to 315A continuous and 550A intermittent at 120 VAC, suitable for #2-2/0 AWG cables. The combination supports high-current loads typical of heavy machinery, motors, and automation panels, while preserving compact form factor and ease of installation in control cabinets.
Yes. The unit carries a NEMA 3R rating and is intended for Ordinary/Non-Hazardous Locations. While it is robust for indoor environments and protected outdoor spaces, it should be installed in conditions that align with non-hazardous classifications and NEC/CEC guidelines.
The single-set-screw termination simplifies field wiring, reduces torque requirements, and minimizes termination errors in tight enclosures. This design improves reliability by ensuring consistent clamping force and easier maintenance, especially in busy industrial environments where service time is critical.
Using the E1012-8325 reduces downtime through faster mating and secure connections, lowers inventory by supporting common cable sizes, and improves safety with a robust, code-compliant enclosure. Over time, this translates to lower maintenance costs, fewer spare parts, and higher equipment uptime for high-volume manufacturing.
