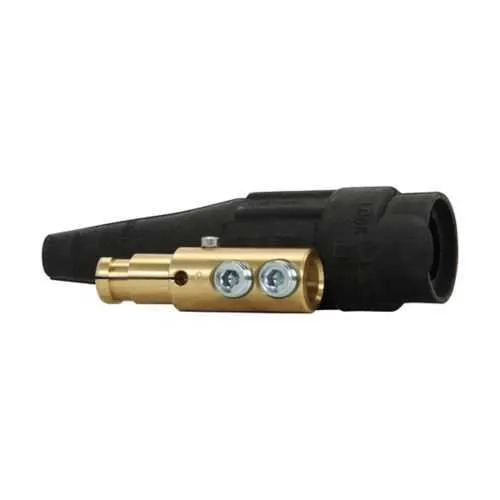

Eaton Crouse-Hinds E1012-8327 Cam-Lok plug - NEMA 3R
Part Number: E1012-8327
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012 plug delivers secure, high-current power connections for heavy industrial equipment. Mismatched connectors and brittle terminations cause downtime; this plug is engineered for quick, reliable field installation. It complies with NEC/CEC standards and carries a NEMA 3R rating for outdoor and non-hazardous locations, providing dependable service in harsh environments. Brass contacts, a thermoplastic elastomer housing, and a single set screw enable fast, repeatable installations, reducing maintenance and downtime. Red coloration improves visibility in busy switchgear, while compatibility with Cam-Lok F Series and #2-2/0 AWG cables supports up to 315A continuous, 550A intermittent. In practice, this reduces troubleshooting time and extends service life by enabling consistent, repeatable terminations.
Product Information
Extended Description
E1012-8327 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-2/0 AWG, Red, Single set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8327
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126528
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Single set screw
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8327
Amperage and voltage ratings establish the backbone of the E1012 plug: up to 315A continuous and 550A intermittent at 120 VAC, enabling it to feed motors, drives, and feeders without multiple junctions. This reduces cabinet clutter and minimizes voltage drop on long runs, improving overall system efficiency. The plug supports #2-2/0 AWG cable, aligning with common feeder designs in industrial plants. Material and build quality translate to reliability in harsh environments. The thermoplastic elastomer (TPE) housing provides durability and impact resistance, while brass contacts deliver low-resistance mating and long life. The red color improves visibility in crowded switchgear, reducing misconnections during maintenance and installation. Connection design simplifies field wiring. A single set screw secures each conductor, enabling quick, repeatable terminations with fewer tools and reduced training time. Combined with Cam-Lok F Series compatibility, technicians can standardize consumables across multiple lines, lowering inventory costs. Compliance and protection save time during audits and commissioning. NEC/CEC standards alignment and a NEMA 3R rating support safe outdoor use in ordinary/non-hazardous locations, ensuring performance in rain, dust, and temperature swings. This makes it suitable for outdoor equipment, portable generators, and industrial automation panels. In practice, these features translate to measurable ROI: faster installs, fewer callouts for loose connections, and reliable power delivery across harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8327
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8327?
Enquire Now
FAQs
To install the E1012-8327, select a matching Cam-Lok F Series receptacle, confirm mating compatibility, and prepare the #2-2/0 AWG conductors. Insert conductors into the brass contacts, then tighten the single set screw to secure each conductor. Verify full seating and perform a continuity check to confirm a clean, low-resistance connection suitable for 120 VAC operation and the 315A continuous rating.
The E1012-8327 supports up to 315A continuous current and 550A intermittent current, at a voltage rating of 120 VAC. It accepts #2-2/0 AWG cables and uses brass contacts for low-resistance mating. The single set screw provides a secure termination, suitable for heavy-duty automation applications requiring reliable power delivery.
Yes. The E1012-8327 carries a NEMA 3R rating and is specified for Ordinary/Non-Hazardous Locations, enabling dependable outdoor use in rain, dust, and temperature variations. This makes it well-suited for outdoor automation panels, portable equipment, and non-hazardous industrial environments while maintaining NEC/CEC compliance.
The E1012-8327 is designed to NEC/CEC compliant standards and features a NEMA 3R rating. It is intended for Ordinary/Non-Hazardous Locations, ensuring safe, code-compliant operation in typical industrial facilities and outdoor installations where weather resistance is required.
The plug’s brass contacts, TPE housing, and single set screw enable fast, repeatable terminations with fewer tools and less training. This reduces wiring errors and maintenance time, lowers replacement costs, and improves uptime by delivering reliable, repeatable connections across harsh environments. Compatibility with Cam-Lok F Series also simplifies spares stocking and field support.
