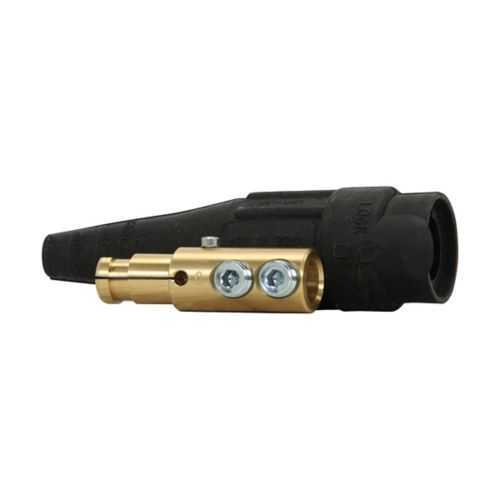

Eaton Cam-Lok E1012-8350 plug - 3R
Part Number: E1012-8350
Quick Summary
Eaton Cam-Lok E1012-8350 plug is a high-current power connector designed to reliably distribute 120V power in demanding industrial environments. Engineers and maintenance teams often battle connectors that corrode, loosen, or fail under vibration, causing unexpected downtime. With a NEMA 3R enclosure rating, NEC/CEC compliance, and Ordinary/Non-Hazardous area suitability, this Cam-Lok F Series plug reduces risk and simplifies regulatory alignment. Its brass contacts and rugged thermoplastic elastomer housing enable use with #2-2/0 AWG conductors while supporting up to 315A continuous (550A intermittent), delivering strong performance in machine tools, conveyors, and outdoor equipment. For buyers seeking longevity, faster installation, and lower lifecycle costs, this solution combines reliability with compatibility across common industrial power systems and receptacle families.
Product Information
Extended Description
E1012-8350 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-2/0 AWG, Black, Double set screw, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8350
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126559
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8350
Feature: High amperage capability up to 315A continuous and 550A intermittent → Business Impact: Supports large feeders and peak loads without parallel connectors, reducing system complexity and costs; Application: Heavy machinery, CNCs, and automated tooling lines. Feature: Cable size compatibility #2-2/0 AWG → Business Impact: Simplifies wiring schemes, lowers termination points, and reduces inventory variety; Application: Main power feeds and feeder lines in manufacturing plants. Feature: Double set screw with brass contacts → Business Impact: Ensures secure mating, minimizes contact resistance, and improves thermal performance; Application: Environments with vibration or frequent reconnects. Feature: Thermoplastic elastomer housing (TPE) → Business Impact: Provides chemical and weather resistance, extending life in harsh environments; Application: Outdoor enclosures, wet or dusty facilities. Feature: 120 VAC rating → Business Impact: Immediate compatibility with common facility power rails, reducing integration steps; Application: Standard industrial equipment, control panels, and propulsion systems. Feature: NEMA 3R rating and Ordinary/Non-Hazardous area classification → Business Impact: Enhances safety and compliance for indoor/outdoor installations, lowering permit and risk concerns; Application: Electrical rooms, sign cabinets, and outdoor machinery enclosures. Dress-out, installation ease, and long-term maintenance considerations are supported by the included guidance sheets and installation instructions from Eaton.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8350?
Enquire Now
FAQs
The E1012-8350 Cam-Lok plug accepts #2-2/0 AWG conductors and uses a double set screw termination with brass contacts. Typical installation tools include a compatible screwdriver for set screws and torque control per Eaton's EB 8 instruction sheet. Ensure conductors are properly stripped and seated to prevent arcing, and follow the provided installation guidelines for secure, code-compliant mating.
This plug is rated for up to 315A continuous and 550A intermittent at 120 VAC. For best results, pair it with compatible Cam-Lok receptacles and design feeders to stay within the continuous rating during normal operation while provisioning for intermittent peak demands. Always size protection and conductors to prevent overheating and ensure safe startup and shutdown sequences.
Yes. The E1012-8350 is built for ordinary/non-hazardous locations with a NEMA 3R rating, making it suitable for outdoor and indoor installations. Its rugged housing and brass contacts support reliable performance in environmental exposure while meeting NEC/CEC standards for safety and compliance.
The plug adheres to NEC/CEC standards and carries a NEMA 3R rating for weather-resistant installations. It is suitable for ordinary/non-hazardous locations, aligning with typical industrial electrical codes and installation practices. Always verify site-specific requirements and local amendments when designing the power distribution scheme.
Regular inspection of the mating interface for corrosion, looseness, or wear is recommended. Check brass contacts for signs of discoloration or arcing and confirm the set screws remain torqued to spec. Using the Eaton installation sheets helps ensure proper assembly, reducing maintenance costs and downtime while extending connector life in high-cycle applications.
