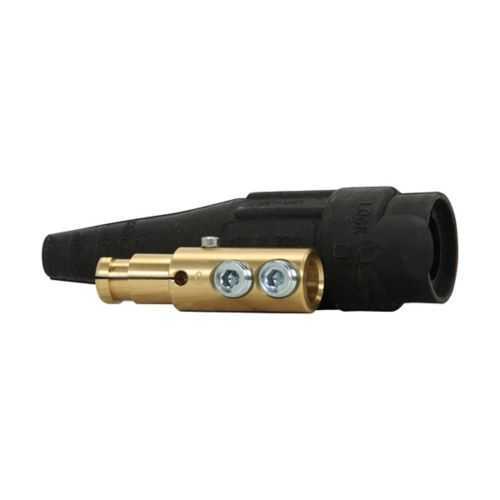

Eaton Crouse-Hinds E1012-8362 Cam-Lok F Series plug - 3R
Part Number: E1012-8362
Quick Summary
Eaton Crouse-Hinds Cam-Lok E1012 plug provides rugged, high-current power connections for industrial machines and control panels. Designers often struggle with connectors that overheat, loosen under vibration, or fail in wet environments. The E1012-8362 meets these challenges with up to 315 A continuous and 550 A intermittent, a NEMA 3R enclosure, and NEC/CEC compliance for ordinary locations. With brass contacts, double set screws, and a thermoplastic elastomer housing, it delivers reliable, field-serviceable performance for 2/0–4/0 AWG conductors and scalable power distribution in demanding automation environments.
Product Information
Extended Description
E1012-8362 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 2/0-4/0 AWG, Black, Double set screw, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8362
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126573
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Black
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8362
Feature: High current rating and large cable compatibility. Business Impact: Supports up to 315 A continuous and 550 A intermittent, reducing the need for parallel connectors and simplifying power distribution for large equipment. Application: feeders and heavy machinery in automated production lines. Feature: Secure double set screw connection. Business Impact: Improves vibration resistance and maintains a tight, consistent electrical bond during startup transients and heavy loads. Application: motors, drives, and machinery subject to steady vibration. Feature: Brass contact material. Business Impact: Delivers low electrical resistance and durable performance in challenging environments, extending service life and reducing maintenance frequency. Application: power transfer to motors and control circuits. Feature: 120 Vac rating. Business Impact: Safe, reliable control-circuit connections within standard automation panels, enabling compliant system integration. Application: control panels and PLC interfaces. Feature: Thermoplastic elastomer housing with black color. Business Impact: Combines resilience, chemical resistance, and ease of handling in harsh plant settings. Application: field installs and outdoor installations where exposure to elements occurs. Feature: NEMA 3R compatibility and Ordinary/Non-Hazardous Location certification. Business Impact: Allows outdoor or damp-location deployments without extra enclosures, cutting total system cost. Application: outdoor process areas and exposed equipment in automation facilities. Feature: Cable size range 2/0–4/0 AWG. Business Impact: Supports large feeders and scalable power solutions, reducing the number of terminations. Application: power distribution to heavy-duty equipment across manufacturing lines.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8362
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8362?
Enquire Now
FAQs
To install, ensure the enclosure has a compatible Cam-Lok mating receptacle and that the cable jacket is stripped to the proper length for the double set screws. Insert conductors into the terminal clamp, tighten each screw securely to the torque spec, then mate the plug with the receptacle until a full, audible connect is achieved. Verify there is no strain on the wiring and inspect the brass contacts for any nicking or residue before operation.
The E1012-8362 is rated up to 315 A continuous and 550 A intermittent at 120 VAC. Its double set screw and brass contact design provide a secure, vibration-resistant connection, maintaining electrical integrity during machine startup and heavy-load cycles. For best results, ensure proper torque on screws and use the compatible Cam-Lok F Series receptacles in vibration-prone environments.
Yes. This plug is rated for NEMA 3R enclosures and falls under Ordinary/Non-Hazardous Location classifications, making it appropriate for outdoor or damp locations without extra enclosure provisions. When selecting, confirm the installation site does not exceed the specified environmental limits and use approved gaskets or seals if required by your panel design.
The E1012-8362 complies with NEC/CEC standards, carries a NEMA 3R rating, and is suited for Ordinary/Non-Hazardous Locations. It supports 2/0-4/0 AWG cables and is designed for reliable performance in industrial automation environments, aligning with typical electrical codes for control and power distribution equipment.
Maintenance benefits come from robust brass contacts, a secure double set screw connection, and a durable TPE housing that resists environmental exposure. This minimizes contact resistance drift, reduces downtime due to loose connections, and extends service intervals, delivering faster install, simpler field servicing, and lower total cost of ownership in automation deployments.
