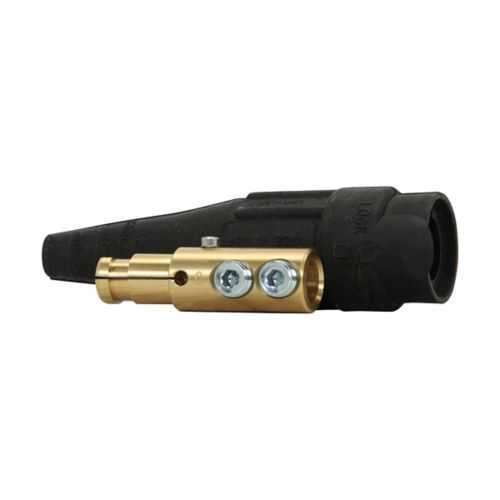

Eaton Crouse-Hinds E1012-8364 Cam-Lok F Plug - 3R
Part Number: E1012-8364
Quick Summary
The Eaton Crouse-Hinds Cam-Lok E1012 plug delivers high-current power connections for industrial equipment. This design addresses uptime and reliability challenges by providing a robust, vibration-resistant interface that stays secure under demanding conditions. With NEC/CEC compliance and a NEMA 3R rating, the E1012 supports safe operation in ordinary/non-hazardous locations while resisting environmental factors. Engineers and procurement teams benefit from a proven, field-ready solution that reduces maintenance cycles and simplifies panel interconnections. Leveraging 2/0-4/0 AWG cables, brass contacts, and a durable TPE housing, this plug integrates smoothly into Cam-Lok F Series configurations, enabling scalable, high-current distribution across diverse applications.
Product Information
Extended Description
E1012-8364 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 2/0-4/0 AWG, Red, Double set screw, Brass contacts, Male, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8364
Product Length/Depth
5.28 in
Product Height
1.63 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126580
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Red
Gender
Male
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8364
Feature → Business Impact → Application: The E1012-8364 supports up to 315A continuous and 550A intermittent current, enabling large motors and heavy loads to start and run without voltage drop. This translates to improved equipment uptime and reduced risk of thermal overload in manufacturing lines or process plants. Application-wise, it fits large-scale feeders and test benches that demand reliable, high-current connections with quick disconnects when servicing equipment. Feature → Business Impact → Application: Cable size compatibility of 2/0-4/0 AWG allows direct integration with large power cables, simplifying panel design and reducing labor during assemblies. This capability lowers installation time and supports compliant wiring practices in control cabinets and plug-and-play stations. Feature → Business Impact → Application: Double set screw connections provide a secure, vibration-resistant interface, cutting loosening risks in environments with machinery vibration or portable power setups. This improves ongoing contact integrity for continuous operation, especially in CNC machines and outdoor electrical equipment. Feature → Business Impact → Application: Brass contact material offers low resistance and durable conductivity, reducing heat buildup and extending connector life in high-demand cycles. This is critical for motor drives, pumps, and industrial conveyors where frequent make-break cycles occur. Feature → Business Impact → Application: Thermoplastic elastomer housing provides rugged protection against impacts and abrasion, supporting longer service life in harsh factories and outdoor installations. It also supports safer, clearer identification of power connections in multi-circuit panels. Feature → Business Impact → Application: Red color coding improves safety protocols by ensuring correct mating with compatible receptacles, lowering configuration errors during maintenance or shifts in shift-work environments. These features collectively enable more predictable maintenance, lower total cost of ownership, and smoother upgrade paths when expanding Cam-Lok F Series installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8364
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8364?
Enquire Now
FAQs
To install the E1012-8364, ensure mating with the corresponding Cam-Lok F Series receptacle. Insert 2/0-4/0 AWG conductors into the terminal block and secure them with the double set screws, following the torque recommendations in the installation sheets. Verify solid brass contact engagement and proper housing alignment to prevent micro-movements under vibration. After assembly, perform a continuity check and insulation test per NEC guidelines to ensure a safe, compliant connection during operation.
The E1012-8364 is rated up to 315A continuous and 550A intermittent, at 120 VAC. This makes it suitable for high-current applications such as large motors, feeders, and industrial machinery, while maintaining safe operation in ordinary/non-hazardous locations as defined by NEC/CEC standards and NEMA 3R protection.
Yes. The plug is designed for Ordinary/Non-Hazardous Locations and carries a NEMA 3R rating, which supports outdoor and weather-protected installations. Its red housing and robust construction are optimized for visibility and long service life in factory yards, outdoor equipment, and indoor control panels exposed to the elements.
This connector complies with NEC/CEC standards and features a NEMA 3R rating for enclosure protection. It is suitable for ordinary/non-hazardous locations and integrates with Cam-Lok F Series receptacles for reliable, code-compliant power distribution in industrial settings.
By delivering a high-current, secure connection with brass contacts and a durable TPE housing, the E1012-8364 reduces contact resistance, minimizes heating, and lowers failure rates. The double set screw design eases installation and maintenance, while its compatibility with 2/0-4/0 AWG cables supports scalable power distribution, resulting in fewer field failures, reduced downtime, and longer service intervals.
