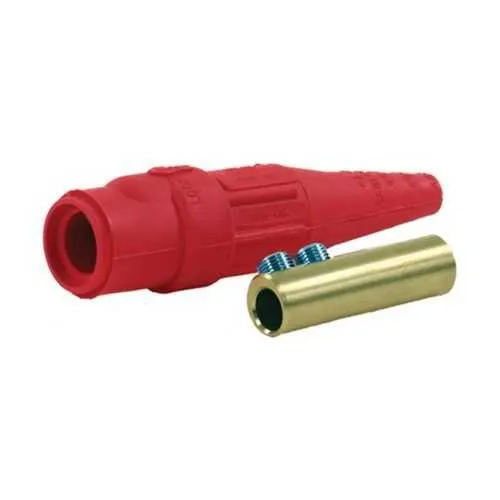

Eaton Crouse-Hinds E1012-8375 Cam-Lok F plug - NEMA 3R
Part Number: E1012-8375
Quick Summary
The Eaton Cam-Lok E1012 plug enables reliable power connections in industrial wiring for rugged equipment. Maintenance teams frequently face rework, mis-sized connectors, and time-consuming terminations that drive downtime. The E1012-8375 meets NEC/CEC guidelines, carries a NEMA 3R rating, and is suitable for ordinary/non-hazardous locations. Designed for fast, secure field assembly, it supports #2-2/0 AWG conductors and 120 V systems, delivering durable, code-compliant power to automation panels. With robust brass contacts and a double-set-screw connection, this plug reduces maintenance cycles and extends service life in industrial environments. Its thermoplastic elastomer body offers chemical resistance and long-term reliability in demanding industrial settings.
Product Information
Extended Description
E1012-8375 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-2/0 AWG, Black, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8375
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126597
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8375
The E1012-8375 delivers up to 315A continuous and 550A intermittent at 120 Vac, enabling high-demand loads to run without parallel splices and reducing wiring complexity. This high current capability directly lowers installation time and improves overall system reliability for motors, drives, and feeders in automation panels. It uses #2-2/0 AWG conductors, streamlining wiring diagrams and enabling direct terminations for large feeders, which cuts labor costs and minimizes fault points in the field. The thermoplastic elastomer (TPE) body provides resistance to oils and environmental stress while maintaining a lightweight, manageable form factor for technicians. Brass contacts deliver robust electrical performance and corrosion resistance, supporting long service life in harsh plant environments. The double set screw configuration ensures secure, vibration-resistant connections critical for applications with frequent movement or thermal cycling. This plug, combined with Cam-Lok F Series receptacles, offers rapid, repeatable mating that reduces downtime during maintenance or changes in production lines. Certifications and enclosure protections reinforce compliance across industrial facilities, supporting risk reduction and easier audit trails.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8375
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8375?
Enquire Now
FAQs
The E1012-8375 is designed to mate directly with Cam-Lok F Series single-pole plugs and receptacles. It accepts #2-2/0 AWG conductors terminated with a double-set-screw, providing a secure, field-friendly connection. This combination is ideal for high-current control panels and automation cabinets where quick, repeatable terminations are required.
This plug is rated up to 315A continuous and 550A intermittent at 120 Vac. It accepts cable sizes from #2 AWG to 2/0 AWG, enabling large feeders to be connected without multiple adapters. Brass contacts ensure low resistance and reliable performance under high-current conditions common in industrial equipment.
Yes. The E1012-8375 is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It carries a NEMA 3R enclosure rating, which provides weather-resistant protection suitable for controlled indoor environments and some outdoor applications, assuming appropriate enclosure boards and harnessing are used to maintain integrity.
The double-set-screw design delivers secure, vibration-resistant terminations, reducing looseness and intermittent connections. Brass contacts provide high conductivity and corrosion resistance, improving long-term reliability in dynamic industrial settings. Together, these features minimize maintenance intervals and ensure consistent performance in motors, drives, and feeders across automation installations.
Datasheets and catalogs are available from Eaton Crouse-Hinds. Look for the Cam-Lok F Series single-pole catalog page and the E1012-8375 specification sheet. These resources provide detailed electrical ratings, wiring instructions, installation guidance, and compatibility information to support design reviews and procurement decisions.
