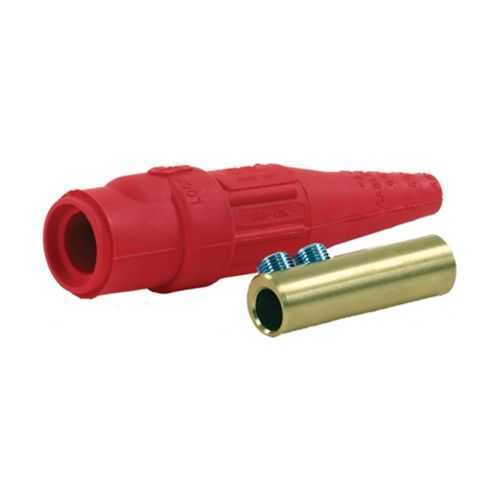

Eaton Cam-Lok E1012-8377 Plug - 120 Vac, 315 A, 3R
Part Number: E1012-8377
Quick Summary
Eaton Cam-Lok E1012-8377 plug is a high-current 120 Vac connector designed for robust power distribution in industrial automation. Many engineers face secure, vibration-resistant terminations when carrying large currents, which can cause arcing or loosening over time. This plug delivers up to 315 A continuously and 550 A intermittently, with a durable brass contact design and a double set screw termination to improve reliability in demanding environments. It meets NEC/CEC standards and is suitable for ordinary/non-hazardous locations, with a NEMA 3R enclosure rating for outdoor or rugged indoor use. In practice, this enables faster, safer installations and reduces field maintenance with a clearly defined, field-tested interface for Cam-Lok F Series systems.
Product Information
Extended Description
E1012-8377 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, #2-2/0 AWG, Red, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8377
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126603
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
#2-2/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8377
Feature → Business Impact → Application: Up to 315 A continuous current and 550 A intermittent capability improves system reliability for high-demand loads such as motor drives and heavy equipment feeders, reducing downtime and the risk of overheating in control panels. Application: Ideal for 120 Vac power distribution within industrial automation assemblies that require durable, high-current plugs. Feature → Business Impact → Application: Brass contact materials provide low resistance and high conductivity, improving connection efficiency and long-term performance. Application: Suitable for frequent mating and unmating cycles in service cabinets, with predictable electrical contact integrity. Feature → Business Impact → Application: Thermoplastic elastomer (TPE) housing plus color-coded red styling offers weather resistance and straightforward field identification, facilitating safer outdoor installations with compliant material choices. Application: Outdoor and non-hazardous location installations where wiring needs to endure vibration and environmental exposure. Feature → Business Impact → Application: Double set screw connection offers robust termination for #2-2/0 AWG cables, increasing installation confidence and reducing maintenance calls. Application: Large-gauge cable runs in Cam-Lok F Series systems and other high-current power distribution setups. Feature → Business Impact → Application: NEC/CEC compliance and 3R rating help ensure regulatory alignment and protection in varied facility environments. Application: Projects requiring formal standards adherence and reliable enclosure protection in both indoor and weather-exposed locations.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8377
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8377?
Enquire Now
FAQs
The E1012-8377 is designed to pair directly with Cam-Lok F Series single-pole receptacles, featuring a male-female gender interface that aligns with standard Cam-Lok mating practices. The double-set-screw termination accepts #2-2/0 AWG conductors, ensuring a secure, vibration-resistant connection. For field applications, verify cable routing and strain relief to maintain consistent contact integrity and minimize micro-movements that can lead to wear or looseness over time.
This E1012-8377 plug supports up to 315 A continuous and 550 A intermittent, at 120 Vac. It accepts cable sizes #2-2/0 AWG and uses brass contacts to maintain low resistance and high conductivity under heavy loads. In installation planning, match the expected duty cycle and ambient conditions to ensure the continuous rating is maintained, and implement proper cooling or ventilation for sustained high-current operation.
Yes. The E1012-8377 carries an Ordinary/Non-Hazardous Locations area classification with a NEMA 3R rating, making it suitable for outdoor use and sheltered indoor environments. This combination supports reliable operation in moisture-prone or dusty factory floors, while NEC/CEC compliance provides a clear regulatory basis for the installation in commercial and light-industrial facilities.
The connector aligns with NEC/CEC standards and carries a NEMA 3R enclosure rating, indicating protection against rain and snow. Its ordinary/non-hazardous location designation informs suitability for typical industrial sites. These certifications support compliance during audits and help maintain safety margins for electrical installations in motor control centers and distribution panels.
Key maintenance advantages include a robust brass contact interface that resists wear, a double-set-screw termination that maintains a secure grip, and a TPE housing that withstands environmental exposure. Regular inspection of mating surfaces, bolt tightness, and cable strain relief reduces noise, arcing risk, and downtime. Over time, these factors translate into lower service calls, longer connector life, and a favorable return on investment for high-current power distribution.
