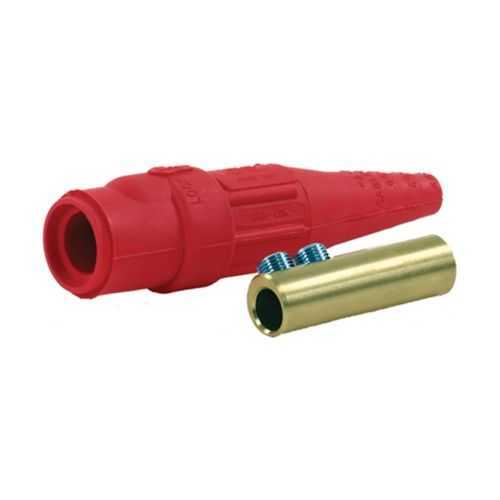

Eaton Cam-Lok E1012-8389 plug - Cam-Lok F Series, 3R rated
Part Number: E1012-8389
Quick Summary
Eaton Cam-Lok E1012-8389 plug provides fast, high-current power connections for demanding industrial installations, enabling reliable distribution of power to motors, drives, and equipment in harsh environments. For maintenance teams, downtime often stems from marginal terminations or incompatible connectors; this plug is designed for secure, repeatable mating, resisting loosening under vibration and rugged use. It meets NEC/CEC standards and carries NEMA 3R enclosure protection, with Ordinary/Non-Hazardous Location classification to simplify compliance in non-hazardous facilities. A brass contact set inside a thermoplastic elastomer body delivers low resistance, while the double set screws ensure solid torque; coupling with Cam-Lok F Series reduces installation time and supports 2/0–4/0 AWG cables.
Product Information
Extended Description
E1012-8389 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 315A continuous, 550A intermittent, 2/0-4/0 AWG, Red, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-8389
Product Length/Depth
6.06 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1 lb
UPC
662275126627
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 315A Continuous, 550A Intermittent
Voltage rating
120 Vac
Material
Thermoplastic elastomer (TPE)
Connection type
Double set screw
Color
Red
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-8389
Feature: High-current capability and voltage rating. Benefit: Enables up to 315A continuous and 550A intermittent at 120 VAC with 2/0-4/0 AWG conductors, delivering reliable power to heavy machinery without frequent terminations. Application: Use in motor drives, conveyors, and pumps where secure, code-compliant connections are critical. Feature: Durable materials and visibility. Benefit: Thermoplastic elastomer housing in red improves field visibility and resistance to environmental factors, reducing mis-wiring and maintenance costs. Application: Plant-floor terminations in non-hazardous areas. Feature: Double set screw and brass contacts. Benefit: Ensures low contact resistance, vibration resistance, and long service life, cutting downtime during preventive maintenance. Application: Replacements or upgrades in existing Cam-Lok systems. Feature: Compliance and safety. Benefit: NEC/CEC compliance with NEMA 3R protection ensures safe operation in ordinary locations. Application: Non-hazardous plant sections requiring robust outdoor or indoor use. Feature: Physical dimensions and weight. Benefit: 6.06 in length, 1.5 x 1.5 in, and 1 lb weight enable easy installation and routing in crowded panels. Application: Retrofit projects with tight space constraints. Industry context and practical note: The Cam-Lok F Series ecosystem is designed for modular, field-serviceable power connections, simplifying upgrades and maintenance in large facilities that operate high-current equipment.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-8389
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-8389?
Enquire Now
FAQs
The E1012-8389 accepts 2/0 to 4/0 AWG conductors. It uses a double set screw termination to ensure a secure, low-impedance connection. For best results, verify conductor insulation type and torque specifications per the Cam-Lok documentation to avoid over-tightening or loosening under vibration.
This Cam-Lok E1012-8389 plug is rated up to 315 A continuous and 550 A intermittent, at 120 VAC. These ratings make it suitable for high-load applications such as motors and drives in non-hazardous environments, while maintaining safe operating margins in typical industrial settings.
Yes, the E1012-8389 is designed for industrial power distribution to motors and drives in ordinary locations. Its 2/0–4/0 AWG compatibility, brass contacts, and robust TPE housing support reliable, repeatable mating under load, reducing downtime during startup and during maintenance cycles.
The connector aligns with NEC/CEC standards and is rated NEMA 3R for enclosure protection. It is classified for Ordinary/Non-Hazardous Locations, which simplifies compliance for non-hazardous plants and ensures safe operation in typical indoor or outdoor environments.
The double set screws and brass contacts provide stable termination with low resistance, reducing heat buildup and arcing risks. The rugged red TPE housing improves durability and visibility, leading to faster diagnostics and servicing. Over time, this translates to reduced downtime, longer service life, and lower total cost of ownership in high-current electrical installations.
