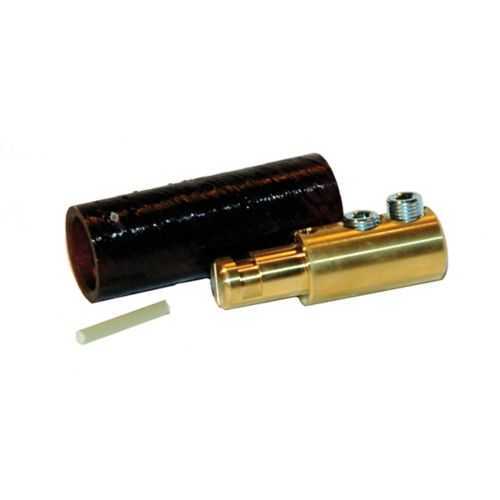

Eaton E1012-85 Cam-Lok F Series Plug - NEMA 1
Part Number: E1012-85
Quick Summary
Eaton Cam-Lok E1012 plug provides high-current connections for industrial equipment. When uptime matters, you need a connector that won’t loosen, corrode, or fail under vibration. It meets NEC/CEC standards and carries a NEMA 1 rating for ordinary/non-hazardous locations. With reinforced epoxy housing and silver-plated brass contacts, the design supports quick installation, reliable terminations, and long service life in demanding environments. Compatible with 2/0–4/0 AWG cables and Cam-Lok F Series receptacles, this plug helps minimize downtime and maintenance costs in wiring and connectivity applications.
Product Information
Extended Description
E1012-85 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 400A continuous, 670A intermittent, 2/0-4/0 AWG, Black, Double set screw, Silver plated brass contacts, Male, Reinforced epoxy, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-85
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126634
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous, 670A Intermittent
Voltage rating
120 Vac
Material
Reinforced epoxy
Connection type
Double set screw
Color
Black
Gender
Male
Contact material
Silver plated brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-85
Feature: Up to 400A continuous and 670A intermittent current rating. Business Impact: Enables reliable power delivery for heavy equipment and motor loads, reducing fuse events and downtime. Application: Suitable for demanding manufacturing lines and industrial feeders where peak current is common. Feature: Cable size compatibility 2/0–4/0 AWG. Business Impact: Simplifies field terminations with large-diameter conductors, improving installation speed and reducing rework. Application: Power distribution panels and service drops in industrial facilities. Feature: Double set screw connection. Business Impact: Delivers secure, vibration-resistant terminations that resist loosening under harsh conditions. Application: Heavy-duty panel assemblies and equipment in retrofit or new-build projects. Feature: Silver-plated brass contacts. Business Impact: Low contact resistance and improved corrosion resistance extend connector life and maintain reliable current transfer. Application: Harsh environments and high-frequency switching where contact aging is a risk. Feature: Reinforced epoxy housing. Business Impact: Provides rugged mechanical strength and moisture resistance, lowering maintenance costs and downtime. Application: Ordinary/Non-Hazardous locations requiring durable, long-life connectors in NEC/CEC-compliant installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-85
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-85?
Enquire Now
FAQs
The E1012-85 supports 2/0 to 4/0 AWG conductors and is designed for Cam-Lok F Series single-pole plugs and receptacles. Its double-set-screw terminations ensure a secure fit during installation and field service, enabling reliable compatibility across typical Cam-Lok configurations used in industrial power distribution.
The plug is rated up to 400A continuous and 670A intermittent at 120 VAC. This makes it suitable for high-startup currents and sustained loads in motors and heavy equipment while maintaining a safe voltage level for standard industrial circuits.
Yes. The product is certified for Ordinary/Non-Hazardous Locations with NEC/CEC standards and a NEMA 1 rating, aligning with typical indoor industrial environments and panel wiring scenarios without hazardous classifications.
It meets NEC/CEC standards and carries a NEMA 1 rating for non-hazardous locations. These certifications help streamline code compliance, reduce risk of non-conforming installations, and support safer, long-term operation in standard industrial spaces.
Its reinforced epoxy housing, silver-plated brass contacts, and double-set-screw termination deliver durable, low-resistance connections with resistance to corrosion and vibration. This combination lowers maintenance intervals, minimizes downtime, and extends service life for high-use power feeds in manufacturing and process environments.
