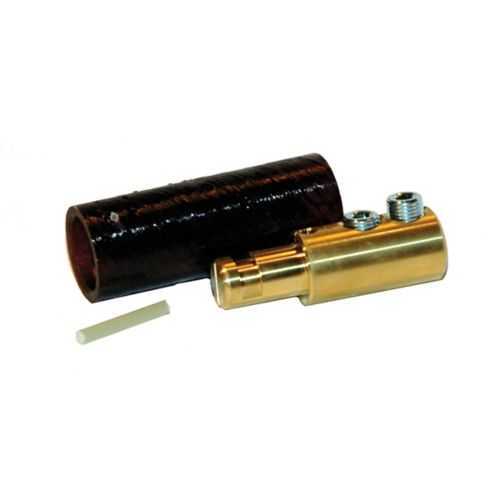

Eaton Crouse-Hinds E1012-88K Cam-Lok F - NEC/CEC
Part Number: E1012-88K
Quick Summary
Eaton Crouse-Hinds Cam-Lok F Series E1012 plug provides high-current power connections for industrial equipment. For engineers and maintenance teams, unreliable connectors or mismatched assemblies drive costly downtime and service delays. This plug complies with NEC/CEC standards, carries a NEMA 1 rating, and is suitable for Ordinary/Non-Hazardous locations, delivering safety and reliability in control panels and mobile gear. With capacity for up to 400 A continuous and 670 A intermittent at 120 Vac, the rugged design minimizes lifecycle costs while supporting efficient wiring & connectivity across demanding applications. The result is improved uptime, streamlined maintenance, and a lower total cost of ownership for industrial facilities.
Product Information
Extended Description
E1012-88K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 400A continuous, 670A intermittent, 2/0-4/0 AWG, Black, Double set screw, Brass contacts, Male, Reinforced epoxy, Single packaged unit, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-88K
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
UPC
662275900784
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous, 670A Intermittent
Voltage rating
120 Vac
Material
Reinforced epoxy
Connection type
Double set screw
Color
Black
Gender
Male
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-88K
Feature: Amperage and voltage ratings deliver robust performance under heavy load. Benefit: Enables reliable operation of motors and pumps without frequent disconnections or overheating, reducing unplanned downtime in manufacturing and process lines. Application: Heavy machinery and conveyor systems that demand consistent 400 A continuous, 670 A intermittent at 120 Vac. Long-tail keywords: high-current Cam-Lok connectors, motor control wiring, industrial power connectors. Feature: Cable compatibility supports 2/0-4/0 AWG conductors. Benefit: Simplifies feeder wiring and stock management, accelerating panel wiring and field service. Application: Main power feeds and branch circuits in large equipment. Long-tail keywords: 2/0-4/0 AWG Cam-Lok, large gauge power connectors, feeder harnesses. Feature: Double set screw with brass contacts. Benefit: Provides low-resistance, secure mating in vibration-prone environments, maintaining electrical integrity. Application: Heavy-duty panel terminations and equipment connections. Long-tail keywords: brass contact performance, vibration-resistant connectors, secure electrical terminations. Feature: Reinforced epoxy housing and single packaged unit. Benefit: Enhances environmental resilience and reduces inventory complexity, speeding installation and maintenance. Application: Harsh factory floors and on-site installations. Long-tail keywords: reinforced epoxy enclosure, rugged Cam-Lok housing, single-packaged unit. Feature: Physical dimensions and form factor. Benefit: Clear, compact footprint simplifies enclosure routing and compatibility with Cam-Lok receptacles. Application: Space-constrained panels and mobile equipment housings. Long-tail keywords: compact plug dimensions, Cam-Lok E1012 compatibility, panel wiring ease. Feature: Compliance and location suitability. Benefit: Ensures safety standards adherence while enabling use in Ordinary/Non-Hazardous locations, reducing regulatory risk. Application: Industrial control panels and non-hazardous manufacturing zones. Long-tail keywords: NEC/CEC compliance, NEMA 1 rating, ordinary locations.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-88K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-88K?
Enquire Now
FAQs
The E1012-88K is designed to mate with Cam-Lok F Series single-pole receptacles using a double set screw connection. It accepts 2/0-4/0 AWG conductors and is intended for 120 Vac systems. When wiring, ensure proper torque on the set screws and verify the mating surfaces are clean and free of damage to maintain electrical integrity and safety.
The E1012-88K is rated for up to 400 A continuous and 670 A intermittent at 120 Vac. This makes it suitable for high-current applications such as motors, pumps, and heavy-duty control panels. For best results, design conductor sizes and protective devices around these ratings and maintain proper thermal management in the enclosure.
Ideal for industrial equipment, manufacturing lines, pumps, conveyors, and mobile machinery operating in Ordinary/Non-Hazardous locations. The rugged epoxy body and brass contacts support reliable performance in factory floors, construction sites, and service vehicles where high-current, quick-connect power is required.
The E1012-88K adheres to NEC/CEC standards, carries a NEMA Rating of 1, and is suitable for Ordinary/Non-Hazardous Locations. These certifications ensure safe operation in standard industrial environments and simplify regulatory compliance for panel wiring and field installations.
Cam-Lok F connectors enable rapid mating and release, reducing maintenance time and downtime. The single packaged unit simplifies inventory and replacements, while brass contacts and reinforced epoxy housing improve longevity and reliability, delivering lower total cost of ownership through faster service, fewer failure points, and predictable performance.
