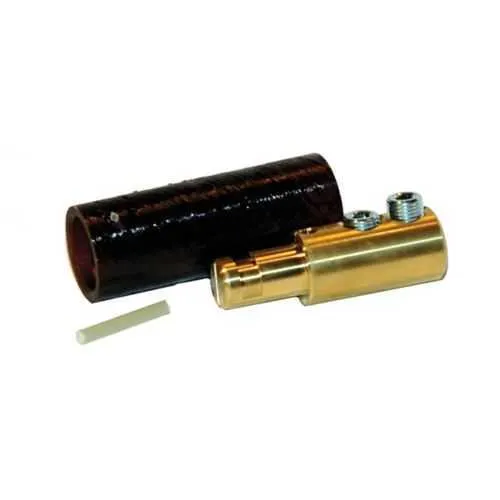

Eaton Crouse-Hinds E1012-95 Cam-Lok plug - 670A
Part Number: E1012-95
Quick Summary
Eaton Cam-Lok E1012 plug provides high-current power connections for demanding industrial equipment and power distribution. Field technicians and engineers often battle bulky connectors that loosen from vibration or fail during routine make/break cycles. Designed to meet NEC/CEC standards and housed in a NEMA 1 enclosure, it supports safe operation in Ordinary/Non-Hazardous Locations. With Cam-Lok F Series architecture and compatibility for 2/0-4/0 AWG cables, reinforced epoxy housing, and silver-plated brass contacts, this plug offers durable performance and long service life. The rugged design translates to fewer field faults, lower maintenance costs, and greater uptime for critical production lines and test benches.
Product Information
Extended Description
E1012-95 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 400A continuous, 670A intermittent, 2/0-4/0 AWG, Black, Double set screw, Silver plated brass contacts, Female, Reinforced epoxy, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-95
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126672
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous, 670A Intermittent
Voltage rating
120 Vac
Material
Reinforced epoxy
Connection type
Double set screw
Color
Black
Gender
Female
Contact material
Silver plated brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-95
Feature: High current capability with 2/0-4/0 AWG conductors. Business Impact: Enables reliable distribution of large loads, reducing the need for multiple smaller connectors and lowering installation complexity. Application: Power feeds to large motors and heavy equipment in manufacturing and processing plants. The improved current handling supports efficiency gains and safety in high-load environments. Feature: Double set screw termination. Business Impact: Ensures a secure grip on conductors despite vibration, minimizing contact resistance and arcing. Application: Conveyors, presses, and robotics lines where robust connections are critical. This reduces maintenance interventions and extends service intervals. Feature: Silver-plated brass contacts. Business Impact: Delivers consistently low contact resistance and better heat dissipation, improving overall electrical performance. Application: High-frequency make/break cycles in test stations and instrumentation bays. Result: Lower operating temperatures and longer connector life. Feature: Reinforced epoxy housing. Business Impact: Provides rugged durability and chemical resistance in demanding environments, reducing field damage costs. Application: Indoor plant floors, control panels, and assembly lines with routine washdowns. This supports longer service life and predictable downtime. Feature: 120 VAC, 670 A intermittent / 400 A continuous rating. Business Impact: Aligns with industry power distribution needs for motors and feeders while accommodating peak loads without oversizing the system. Application: Industrial power distribution for large equipment and temporary testing setups. Outcome: Improved capacity planning and reduced total cost of ownership. Feature: F Series compatibility with wide cable range. Business Impact: Simplifies inventory and field termination, enabling faster installations and easier maintenance. Application: Control cabinets and outdoor enclosures where versatile connectors are needed. Outcome: Lower training burden and faster project delivery.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-95
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-95?
Enquire Now
FAQs
The E1012-95 Cam-Lok plug is designed for 2/0-4/0 AWG conductors, terminated with a double set screw in reinforced epoxy. The contacts are silver-plated brass for secure, low-resistance connections, delivering reliable performance in vibration-prone and dust-prone industrial environments.
It is rated up to 400 A continuous and 670 A intermittent at 120 Vac. This capacity supports heavy-duty feeders and large equipment without frequent connector changes, helping to minimize downtime and improve line efficiency in manufacturing and testing applications.
Yes. The plug carries an Ordinary/Non-Hazardous Location area classification and NEC/CEC standards alignment, with a NEMA 1 rated enclosure suitable for indoor, non-hazardous environments such as control panels and assembly lines.
Key advantages include a secure double set screw termination, robust silver-plated brass contacts for low resistance, and a reinforced epoxy body for durability. Its 2/0-4/0 AWG compatibility and straightforward termination reduce field effort, vibration-related failures, and maintenance time on busy production floors.
Regularly inspect the contact interface for wear, verify torque on set screws, and keep the connector clean and dry to prevent arcing. Use proper strain relief and route cables to minimize flexing, and maintain a small stock of common replacement parts. These practices extend service life and minimize unplanned downtime.
