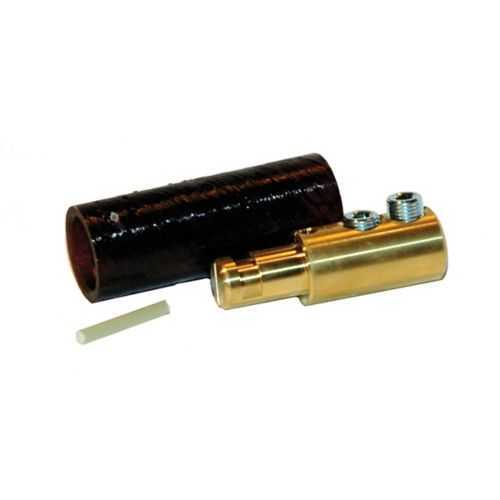

Eaton Crouse-Hinds E1012-98 plug - Cam-Lok F Series - 670A Intermittent
Part Number: E1012-98
Quick Summary
The E1012-98 Cam-Lok plug from Eaton Crouse-Hinds delivers high-current, reliable power connections for industrial equipment. Operators confront downtime caused by cumbersome, unreliable connectors; this design addresses that by pairing a reinforced epoxy body with brass contacts and a robust double-set-screw connection for secure, vibration-resistant mating. Rated for ordinary/non-hazardous locations with NEC/CEC compliance, it supports 2/0-4/0 AWG cables at 120 Vac for demanding panel and machine applications. By combining ease of installation, durable materials, and code compliance, it provides tangible business value through reduced maintenance, safer operation, and faster changeouts.
Product Information
Extended Description
E1012-98 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug, Up to 400A continuous, 670A intermittent, 2/0-4/0 AWG, Black, Double set screw, Brass contacts, Female, Reinforced epoxy, 120 Vac
Product Name
Eaton Crouse-Hinds series Cam-Lok F Series E1012 plug
Catalog Number
E1012-98
Product Length/Depth
3.86 in
Product Height
1.19 in
Product Width
1.19 in
Product Weight
1 lb
UPC
662275126689
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
1
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous, 670A Intermittent
Voltage rating
120 Vac
Material
Reinforced epoxy
Connection type
Double set screw
Color
Black
Gender
Female
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok F Series Single Pole Plugs and Receptacles catalog page
EB 8 - Cam-Lok E1012 Connectors
Eaton Specification Sheet - E1012-98
Feature: Up to 400A continuous and 670A intermittent current ratings provide a robust power path with fewer expansion points. Business Impact: Reduces wiring complexity, improves reliability, and lowers maintenance costs in high-load applications. Application: Ideal for industrial equipment, control panels, and portable power systems where consistent current delivery is critical. Feature: Cable size compatibility of 2/0-4/0 AWG and 120 VAC supports common power cables in large facilities. Business Impact: Enables standardization across equipment and simplifies sourcing. Application: Suitable for feeders and branch connections in manufacturing lines. Feature: Brass contacts and reinforced epoxy housing enhance thermal performance and mechanical strength. Business Impact: Extends connector life, reduces replacement cycles, and improves safety margins. Application: Harsh or vibration-prone environments in machinery and robotics. Feature: Double set screw connection ensures secure mating. Business Impact: Minimizes loosening under vibration, reducing intermittent faults. Application: Routine maintenance and field assembly in panel wiring. Feature: Compact form factor (3.86 in length, 1.19 in width/height) and 1 lb weight. Business Impact: Easier installation in tight spaces, faster scoping, and lower handling risk. Application: Panel mounts and portable power applications across OEMs and facilities. Feature: Black color, female gender, and brass contacts for reliable contact resistance and corrosion resistance. Business Impact: Consistent performance and long service life in non-hazardous locations. Application: General-purpose Cam-Lok F Series mating scenarios with durable, repeatable connections.
Get a Quick Quote for a Eaton Crouse-Hinds E1012-98
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1012-98?
Enquire Now
FAQs
Follow the EB 8 instruction sheet for Cam-Lok E1012 connectors. Ensure the cable matches 2/0-4/0 AWG, engage brass contacts properly, and tighten the double-set screws to spec. Verify 120 VAC supply and mating alignment with the F Series receptacle. Use reinforced epoxy housing to protect the connection from vibration and environment. This approach minimizes field faults and speeds maintenance.
The E1012-98 is rated for up to 400A continuous and 670A intermittent, with a 120 VAC voltage rating. It accepts 2/0-4/0 AWG cables, enabling large-diameter feeder connections while maintaining a compact, plug-style interface suitable for high-current industrial applications.
This plug is specified for Ordinary/Non-Hazardous Locations with NEC/CEC compliance and a NEMA 1 rating. It is designed for safe operation in standard factory floors, control panels, and other non-hazardous environments, not for explosive atmospheres or hazardous zones.
The E1012-98 complies with NEC/CEC standards and carries a NEMA 1 rating for non-hazardous locations. These classifications support reliable performance in typical industrial settings and help align with code-based procurement and installation requirements.
Durable brass contacts, reinforced epoxy housing, and a double-set-screw connection reduce wear, looseness, and contact resistance over time, lowering maintenance and replacement costs. The plug’s compatibility with the Cam-Lok F Series simplifies sourcing and stocking, improves uptime, and enables faster changeouts during routine maintenance or line shifts.
