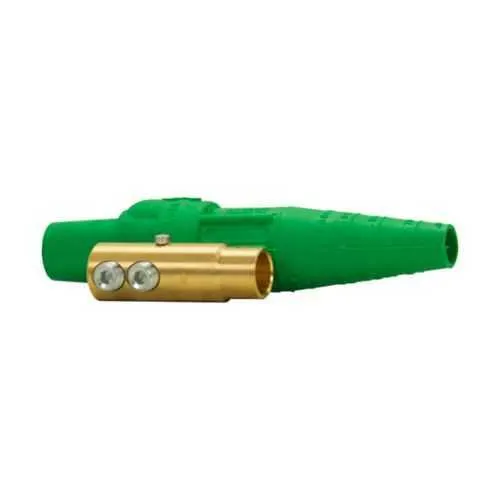

Eaton E1016-8387K Cam-Lok J Series plug - 600 Vac/dc
Part Number: E1016-8387K
Quick Summary
The Eaton Crouse-Hinds Cam-Lok J Series E1016 plug provides rugged power connections for heavy machinery applications. Maintenance teams often contend with loose, moisture-prone connections that fail under vibration. It meets NEC/CEC compliance and carries a NEMA 3R rating for reliable performance in ordinary or non-hazardous locations. With 2/0-4/0 AWG capacity and up to 400A continuous, plus brass contacts and a durable thermoplastic elastomer housing, this plug ensures secure, serviceable connections that simplify field servicing and reduce downtime.
Product Information
Extended Description
E1016-8387K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Black, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8387K
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275870735
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Black
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 9 - Cam-Lok E1016 and E1018 Connectors
EB 9 - Cam-Lok E1016 and E1018 Connectors
EB 9 - Cam-Lok E1016 and E1018 Connectors
Eaton Specification Sheet - E1016-8387K
Feature — Amperage and conductor size: Up to 400A continuous and 2/0-4/0 AWG compatibility. This capacity reduces the need for paralleling smaller connectors, lowering schedule risk and improving motor start reliability. Application: ideal for feeders to large motors, pumps, and conveyors in manufacturing floors. Feature — Contact and housing materials: Brass contacts with a thermoplastic elastomer (TPE) body. The combination delivers low contact resistance and solid wear resistance in dusty or oily environments. Application: suitable for harsh shop floors and outdoor equipment cabinets where longevity matters. Feature — Connection method and gender: Double set screw, female contact with a black body. Provides secure mating, high vibration resistance, and straightforward field assembly. Application: dependable in portable equipment, control panels, and temporary power stations. Feature — Packaging and installation convenience: Single packaged unit. Simplifies inventory management and on-site handling, reducing mislabeling and mispacks. Application: system integrators and OEMs benefit from streamlined procurement and faster builds. Feature — Certifications and location suitability: NEC/CEC standards with a NEMA 3R rating for ordinary/non-hazardous locations. Ensures regulatory compliance and weather capability for outdoor and semi-outdoor installations. Application: ideal for facilities with mixed indoor/outdoor power needs, such as warehouses and process lines.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8387K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8387K?
Enquire Now
FAQs
The E1016-8387K is a female Cam-Lok J Series plug designed to mate with corresponding Cam-Lok J-Series receptacles. During installation, verify the conductor size range (2/0-4/0 AWG) and ensure the double set screws are securely tightened to establish a low-resistance path. Inspect brass contacts for cleanliness and free movement, and confirm the housing is free of damage prior to mating to prevent overheating and potential arcing in high-current applications.
This plug is rated for up to 400A continuous current and supports 2/0 to 4/0 AWG cables. These specifications enable reliable handling of large motors and feeders while maintaining a safe, stable connection in demanding industrial environments. Always ensure the mating receptacle shares the same Cam-Lok J-Series configuration for proper fit and safety.
The E1016-8387K is designed for ordinary/non-hazardous locations per NEC/CEC, with a NEMA 3R enclosure rating for weather resistance. It excels in manufacturing floors, outdoor control panels, mining equipment centers, and conveyor systems where high current, robust connection integrity, and quick field servicing are essential to maintain uptime.
This Cam-Lok plug conforms to NEC/CEC standards and carries a NEMA 3R rating, indicating suitability for outdoor or semi-outdoor use and protection against rain and varied weather. Area classification is Ordinary/Non-Hazardous Locations, which guides permissible installations and ensures safer, code-compliant power distribution in typical industrial settings.
Brass contacts with a robust TPE housing provide low contact resistance and durability against wear, contributing to longer service life. The double set screw design ensures secure, vibration-resistant connections, reducing fault-related downtime. A single packaged unit simplifies stocking, procurement, and on-site handling, delivering faster maintenance and lower inventory carrying costs over the life of the system.
