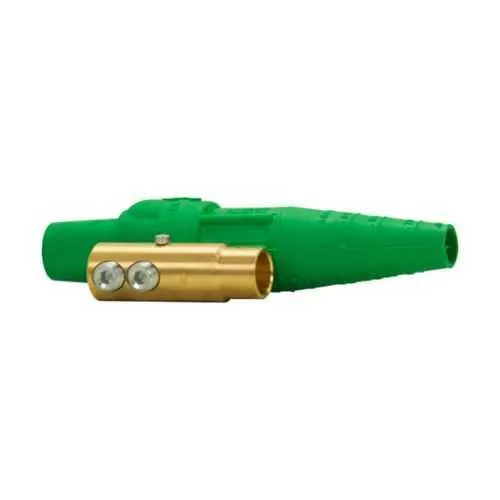

Eaton Crouse-Hinds E1016-8388 Cam-Lok J Series plug - 3R
Part Number: E1016-8388
Quick Summary
The Eaton Crouse-Hinds E1016-8388 Cam-Lok J Series plug delivers high-current power connections for industrial panels and machinery. Engineers often struggle with reliable, vibration-resistant terminations for large AWG cables in harsh environments. It aligns with NEC/CEC standards and carries a NEMA 3R rating for dependable outdoor or rugged indoor service. Designed for 2/0–4/0 AWG conductors and up to 400 A continuous, it reduces downtime and simplifies installation in electrical cabinets, switchgear, and process equipment. This combination supports fast replacements, consistent terminations, and longer service life in industrial automation and power distribution projects, while maintaining safety and compliance across demanding applications.
Product Information
Extended Description
E1016-8388 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Yellow, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8388
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275131881
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Yellow
Contact material
Brass
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
EB 141 - Cam-Lok E1015 and E1016 Molded to Cable Connectors
Eaton Specification Sheet - E1016-8388
Feature: Up to 400 A continuous amperage rating paired with support for 2/0–4/0 AWG conductors. Business Impact: Enables reliable, high-current terminations for large motors, feeders, and power distribution blocks, reducing junction losses and the risk of overheating. Application: Ideal for industrial automation skids, CNC machines, and process equipment where robust Cam-Lok connections are essential. Feature: Brass contacts with a double set screw connection. Business Impact: Delivers low-resistance, secure terminations with excellent vibration resistance, minimizing maintenance and ensuring consistent performance under dynamic loads. Application: Critical in manufacturing lines and packaging systems where connections endure constant motion and vibration. Feature: Thermoplastic elastomer housing with non-vulcanized construction. Business Impact: Provides chemical resistance, impact durability, and flexible sealing for harsh environments, extending service life. Application: Outdoor enclosures, wash-down areas, and wet/damp plant floors requiring rugged IP-tolerant connectors. Feature: Visibility and rating certifications. Business Impact: Compliance with NEC/CEC standards and a NEMA 3R rating reduce risk of non-compliance and inspection failures, supporting safe outdoor installations. Application: Utility rooms, outdoor switchyards, and process plants where safety-critical power distribution is deployed. Feature: Compact dimensions and weight. Business Impact: Easier handling, faster field installs, and reduced cabinet footprint, lowering installation time and labor costs. Application: Retrofit projects and new builds with limited space in control panels and harnessing layouts.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8388
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8388?
Enquire Now
FAQs
The E1016-8388 supports 2/0–4/0 AWG conductors, enabling high-current connections for large motors and feeders. The design uses brass contacts and a double set screw to secure the conductors, ensuring a low-resistance, vibration-resistant connection. This makes it suitable for heavy machinery, power distribution panels, and process equipment in industrial environments.
Installation uses a double set screw connection to secure the conductors within the brass contact pathways, paired with a durable thermoplastic elastomer housing. For best results, follow Eaton’s EB 141 guidance on molding to cable connectors and ensure proper strain relief in the panel. The compact 7.18 inch length and 1.5 inch width help fit in constrained enclosures.
Yes. The E1016-8388 is rated for ordinary/non-hazardous locations and features a NEMA 3R designation, making it well-suited for outdoor use and rugged indoor installations. NEC/CEC compliance further supports safe operation in facilities with outdoor feeders, weather exposure, and wash-down areas when properly installed.
This Cam-Lok J Series plug provides up to 400 A continuous current and a voltage rating of 600 Vac/dc. It complies with NEC/CEC standards and carries a NEMA 3R rating for outdoor performance. The combination of these specifications helps ensure reliability, safety, and regulatory compliance in industrial power distribution.
The E1016-8388 reduces downtime with secure, vibration-resistant terminations for large-diameter cables, lowering maintenance frequency and contact resistance issues. Its rugged TPE housing and brass contacts improve durability in harsh environments, supporting longer service life and faster field replacements for high-current power feeds in automation and packaging lines.
