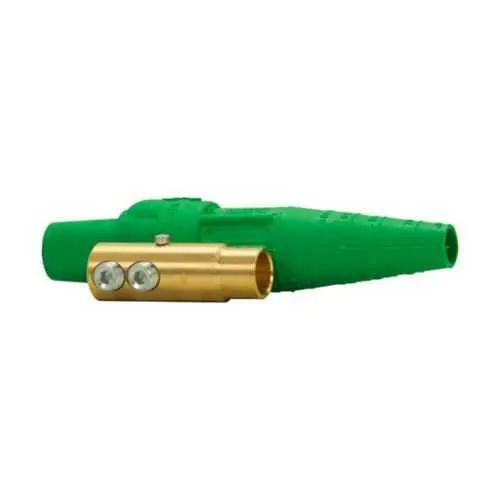

Eaton E1016-8389K Cam-Lok J Series Plug - 600 Vac/dc
Part Number: E1016-8389K
Quick Summary
Cam-Lok J Series E1016-8389K plug delivers high-current power connections for industrial equipment. This option addresses the common challenge of maintaining secure, vibration-resistant connections in demanding environments where downtime is costly. It aligns with NEC/CEC standards and is rated for ordinary/non-hazardous locations with a NEMA 3R enclosure suitability, providing reliable protection in exposed or semi-enclosed spaces. Designed for field deployment and rigors of daily use, it supports 2/0-4/0 AWG conductors and a 600 Vac/dc rating, while offering secure, fast mating. The combination of robust construction, straightforward installation, and compatibility with Cam-Lok receptacles translates into safer, more efficient power distribution for industrial facilities.
Product Information
Extended Description
E1016-8389K Eaton Crouse-Hinds: Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug, Up to 400A continuous, 2/0-4/0 AWG, Red, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Single packaged unit, Non-vulcanized, 600 Vac/dc
Product Name
Eaton Crouse-Hinds series Cam-Lok J Series E1016 plug
Catalog Number
E1016-8389K
Product Length/Depth
7.18 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.6 lb
UPC
662275870759
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Cable size
2/0-4/0 AWG
Amperage Rating
Up to 400A Continuous
Voltage rating
600 Vac/dc
Material
Thermoplastic elastomer (TPE)
Type
Non-vulcanized
Connection type
Double set screw
Gender
Female
Color
Red
Contact material
Brass
Special features
Single packaged unit
Cam-Lok Single Pole Plugs and Receptacles catalog
Cam-Lok J Series Single Pole Plugs and Receptacles catalog page
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
IM 1004 - Cam-Lok E1016 and E1018 Double Set Screw
Eaton Specification Sheet - E1016-8389K
Feature: Up to 400A continuous amperage rating → Business impact: Enables use of larger gauge cables and higher current loads with fewer connectors, reducing heat buildup and potential bottlenecks in power circuits. Application: Heavy machinery, motor drives, and welding equipment require reliable, high-current connections. Feature: Cable size compatibility 2/0-4/0 AWG → Business impact: Flexible wiring options support diverse plant layouts and simplify field terminations, lowering inventory needs. Application: Power distribution in manufacturing and processing lines. Feature: Brass contacts → Business impact: Enhanced conductivity and durability reduce contact resistance and maintenance costs. Application: Frequent mating cycles in rugged environments. Feature: Thermoplastic elastomer body (TPE) → Business impact: Superior impact resistance and weathering performance, extending service life in harsh plants. Application: Indoor/outdoor installations with exposure to vibration. Feature: Double set screw connection → Business impact: Secure mechanical and electrical grip minimizes loosening risk under vibration. Application: Critical power feeds to motors and loads. Feature: Single packaged unit → Business impact: Simplifies logistics and installation, reducing assembly time and potential contamination. Application: Quick field swaps and serviceability. Feature: 600 Vac/dc rating → Business impact: Broad compatibility with modern AC and DC systems, enabling standardization across mixed fleets. Application: Industrial controls, power distribution panels, and equipment power feeds.
Get a Quick Quote for a Eaton Crouse-Hinds E1016-8389K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1016-8389K?
Enquire Now
FAQs
The E1016-8389K is designed for 2/0-4/0 AWG conductors, enabling high-current connections without the need for multiple adapters. The double set screw terminals provide a secure, vibration-resistant grip on the conductors, simplifying field terminations and reducing maintenance needs over the plug’s service life.
This Cam-Lok E1016-8389K plug is rated up to 400A continuous and supports 600 Vac/dc. These ratings make it suitable for high-demand power feeds to motors, drives, and other industrial equipment while maintaining a safe, code-compliant connection in non-hazardous environments.
Yes, it is intended for ordinary/non-hazardous locations. It complies with NEC/CEC standards and carries a NEMA 3R rating, which supports outdoor or semi-protected installations and helps ensure protection against rain and external contaminants in many industrial settings.
Plan for direct field terminations with 2/0-4/0 AWG conductors and ensure proper torque for the double set screws. The single packaged unit design aids quick field deployment, while brass contacts improve longevity. Refer to the IM 1004 instruction sheets and Eaton’s datasheet for detailed installation steps and safety notes.
Access Eaton resources such as the Cam-Lok catalog pages, IM 1004 installation sheets, and the E1016-8389K specification sheet. These documents provide wiring diagrams, torque specs, and maintenance guidelines to streamline procurement, installation, and ongoing support.
